Foscam FI9900EP Quick Setup Manual

Setup
Quick Guide

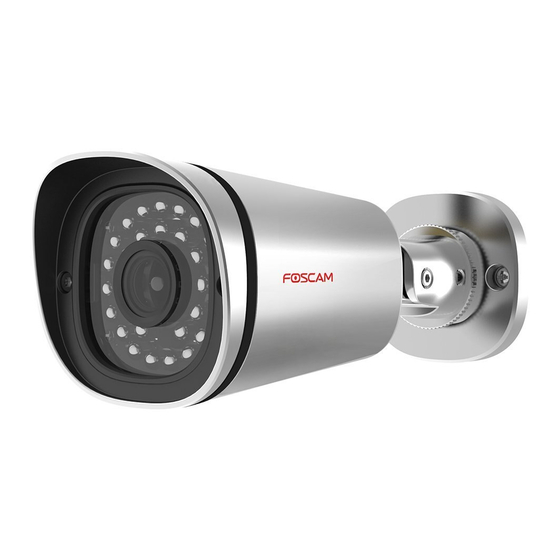

Outdoor HD Security Camera
Model: FI9900EP / FI9901EP
Model: FI9803EP
Model: FI9903P
To view this guide in other languages (e.g. Nederlands,
Deutsch, Français, Español), and for detailed manuals, tools,
etc., please visit http://www.foscam.com > Support > V5.1.3
Download Center.
EQ980318
Setting Up Your Foscam
Security Camera
A
Getting Started
Package Contents
IP Camera Power Adapter Resource CD
WARRANTY CARD
Quick Setup Guide
Outdoor HD Security Camera ~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~
Model: FI9900EP /FI9901EP
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~
Model: FI9803EP Model: FI9903P
Mounting Bracket Quick Setup Guide Warranty Card
(Except FI9900EP / FI9901EP)
Security Tips
Please change the password of your camera regularly, using a
combination of numbers, letters and special characters.
We recommend that you regularly update your camera to the
latest available software and rmware versions to help ensure
the best experience for your camera.
B
Physical Description
FI9803EP / FI9903P
LENS
LAN
Array LED
Induction IC
Power
Reset Button
FI9900EP / FI9901EP
Infrared LED
LAN
LENS
Audio In/Out
Induction IC
Power
Reset Button
C
Setting Up Your Camera:
Wired Connection via Foscam App
Router / Switch
WPS WPS
Note: For FI9900EP, FI9901EP, FI9803EP, a power adapter is unnecessary if the
router / switch supports PoE (Power over Ethernet) functionality, otherwise,
please connect the power adapter to the camera.
Minimum Requirements:
To help ensure a smoother video experience on the smartphone, it's
recommended that your smartphone has the following:
IOS: version 8.1 or higher.
Android: 4.1 or higher, using a device with a Graphics Processing Unit
(GPU) function.
Camera Setup Steps:
1. Connect the camera to your Internet router using an Ethernet cable.
2. Connect the power adapter to the camera, and wait for a few moments
until the camera alerts you that the "Wired connection succeeded" (if
the device is connected with the audio output device).
3. From your smartphone, search for "Foscam" via the App Store or
Google Play Store. Download, install and open the App to begin
con guration.
4. Under "My Cameras, " select "Tap + to add new camera" and then scan
the QR code, which is located at the bottom of your camera (see
illustrations below).
Scan
My Cameras <
Tap + to add new camera
Tap + button Scan the QR code which is
located on your camera.
5. On the "Which way to choose" screen, con rm that "Wired" is selected
(upper-left corner) and tap "Ready. " Wait a few moments for a message
con rming that the setup process has been completed (see illustra-
tions below).
Complete
< Which way to choose
Wired Wi-Fi
Congratulations!
Successfully added!
Ready
Con rm "Wired" and Connection succeeded!
then tap "Ready"
