Foscam FI9803P Quick Installation Manual

Quick Installation Guide

Outdoor HD P2P IP Camera
Model: FI9803P Model: FI9900P / FI9800P
V1.6
EQ980306
"Foscam" App download

Package Contents

IP Camera Power Adapter Resource CD Mounting Bracket
(only FI9803P)
Quick Installation Guide
Outdoor HD P2P IP Camera
Model: FI9803P Model: FI9900P / FI9800P
Wi-Fi Antenna Ethernet Cable Quick Installation Guide Warranty Card
Security Warning
Foscam cameras and NVRs require good security
practices to safeguard your privacy. You should
regularly change your camera or NVR password
which is 8-10 numbers, letters, symbols combination.
You should update your camera or NVR regularly.
Make sure your camera or NVR has the latest
rmware installed for your speci c model and better
experience.
1
Hardware Introduction
Physical Description

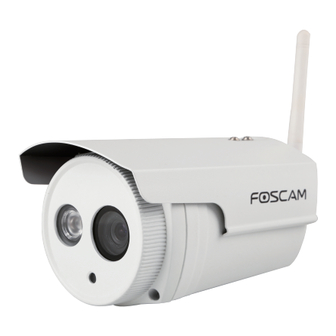

FI9803P
Antenna
LENS
LAN
Infrared Lamp Array
Audio in/out
Induction IC
Power
Reset Button
FI9900P / FI9800P
Antenna
Infrared LED
LAN
LENS
Audio in/out
Induction IC
Power
Reset Button
Hardware Installation
FI9803P
1. Screw the mount on the wall with the 3 screws
provided.
2. Install the camera on the mounting bracket with 1
screw to complete installation.
FI9900P / FI9800P
0~360°
0~90°
0~360°
0~360°
0~360°
0~90°
Fixate the camera on your preferred location and use
screws to mount it. We have provided screws in the
packaging.
Please Note:
Ensure that the rain or water will not reach the
connector ports at the end of the pig tail wiring.
These connectors are not weather-resistant.
Hardware Connection
Method 1: Wired Connection
You can use wired connection to add the camera via the
app or browser. Connect the camera to the wireless
router via ethernet cable.
WPS WPS
Method 2: Wireless Connection
You can also use wireless connection to add the camera
via the app. But ensure that the camera has not been
plugged ethernet cable.
WPS
Before you continue, please note:
Ensure your wireless router is on and functioning.
Ensure your smartphone and camera are both connected
to the same wireless router.
