Summary of Contents for Foscam FI9803

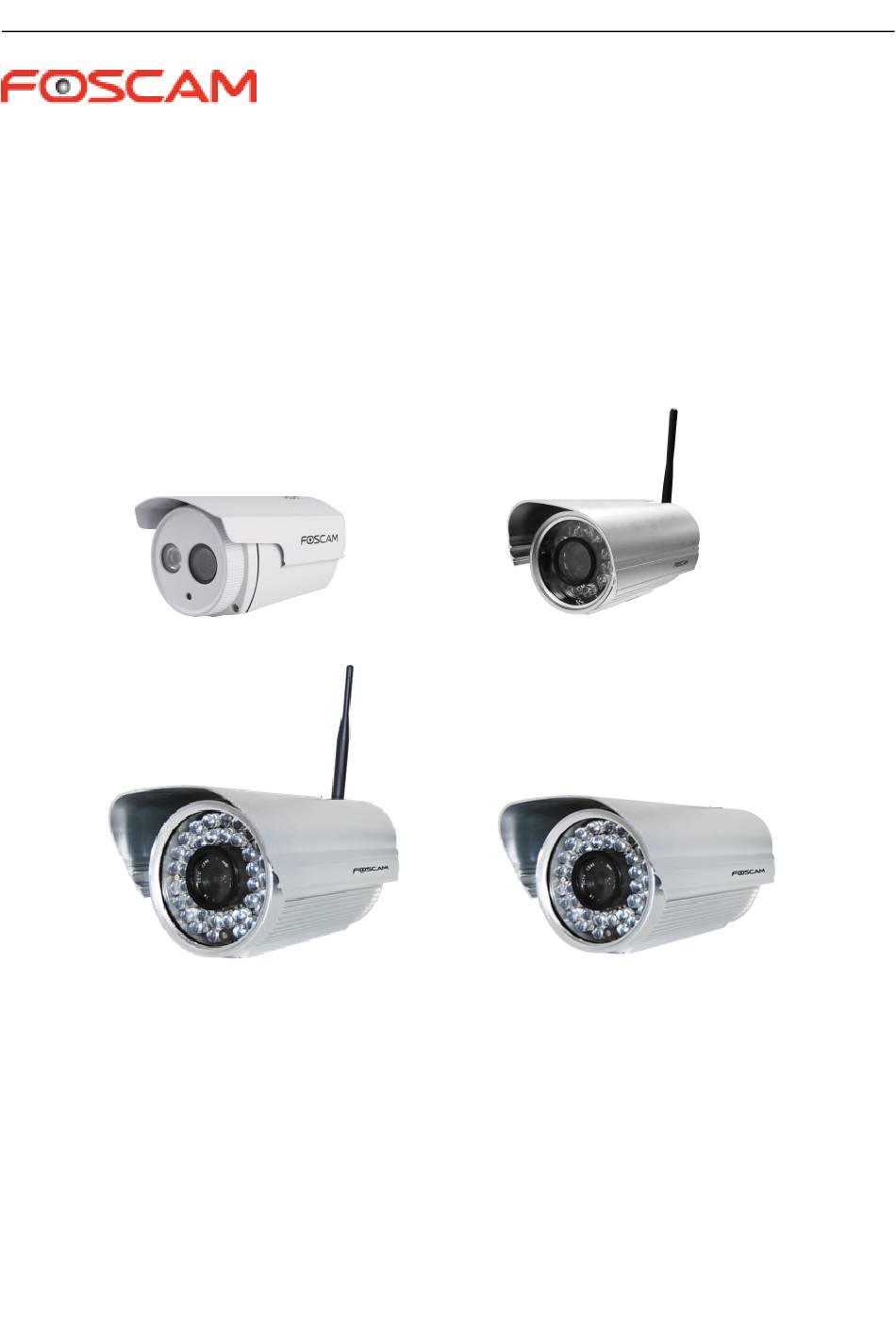

- Page 1 User Manual User Manual Outdoor HD IP Camera Model: FI9803 Model: FI9804W Model: FI9805W Model: FI9805E...
-
Page 2: Table Of Contents
.foscam.co .foscam.co Table of Contents Table of Contents.................................. 1 1 Overviews..................................... 3 1.1 Key Features................................3 1.2 PoE (Power over Ethernet-FI9805E)........................4 1.3 Read Before Use................................ 4 1.4 Packing Contents............................... 4 1.5 Physical Description..............................5 1.5.1 Front Panel..............................5 1.5.2 Interface................................6 1.5.3 Bottom View.............................. - Page 3 .foscam.co .foscam.co 4.4 Video..................................53 4.4.1 Video Settings...............................53 4.4.2 On Screen Display............................54 4.4.3 Privacy Zone..............................54 4.4.4 Snapshot Settings............................55 4.4.5 IR LED Schedule............................56 4.4.6 Lens Distortion Correction........................57 4.5 Alarm..................................57 4.5.1 Motion Detection............................57 4.5.2 IO Alarm(only FI9805E)..........................61 4.6 Record..................................64 4.6.1 Storage Location............................64...
-
Page 4: Overviews
.foscam.co 1 Overviews FOSCAM Outdoor HD IP Camera is an integrated wireless IP Camera with a color CMOS sensor enabling viewing in High Definition resolution.It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from anywhere on your local network or over the Internet. -
Page 5: Poe (Power Over Ethernet-Fi9805E)
This also ensures the product is used properly as intended. 1.4 Packing Contents ● IPCAM×1 ● CD×1 ● Wi-Fi Antenna×1 （except for FI9805E,FI9803） ● Quick Installation Guide ×1 ● DC Power Supply×1 ● Warranty Card×1 ●... -
Page 6: Physical Description
2 Infrared LED: 12 IR LEDs (FI9804W), 36 IR LEDs (FI9805W, FI9805E) 3 LENS: CMOS sensor with fixed focus lens 4 Induction IC Front Panel for FI9803 Figure 1.2 1 Infrared Lamp Array 2 LENS: CMOS sensor with fixed focus lens... -
Page 7: Interface
4- output This camera supports I/O alarm, you can go to Settings-Alarm - I/O page to configure it. NOTE: FI9803, FI9804W and FI9805W haven't this section . 2 LAN 10/100M adaptive Ethernet interface. Through this interface, IPCAM can be connected with various network devices, such as hub, router, etc. -
Page 8: Bottom View
There are up to three labels located at the bottom of the camera, this is an important feature of original Foscam cameras. If your camera does not have labels as shown in Figure 1.3, it may be a clone. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services. -
Page 9: The Different Features Between The Models Involved
.foscam.co .foscam.co S/N Sticker of FOSCAM . Figure 1.4 1.6 The different features between the models involved Differences Model Wireless PoE (Power over Ethernet) Alarm in / out RS 485 FI9804W √ × × × FI9805W √ × × ×... -
Page 10: Accessing The Network Camera
.foscam.co .foscam.co 2 Accessing the Network Camera This chapter explains how to access the network camera through web browsers and RTSP players. 2.1 Access the Camera in LAN This camera support HTTP and HTTPS protocols, so here will allow you to use HTTP and HTTPS port No. - Page 11 .foscam.co .foscam.co Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options. Next, click the Security tab, then click the Trusted sites button. Figure 2.3 For Firefox, you can add the trusted as the following way:...
- Page 12 .foscam.co .foscam.co Tools ---- Options ---- Advanced --- View Certificates --- Servers Figure 2.4 Click View Certificates, and go to Servers option . Figure 2.5 Go to Add Exception panel. Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co.,...
-
Page 13: Access The Camera In Wan
.foscam.co .foscam.co Enter the camera’s url , here take https://192.168.8.129:443 for example . Click this button to add it . Figure 2.6 2.2 Access the Camera in WAN 2.2.1 Static IP Addresses Users who have static IP addresses do not need to set DDNS service settings for remote access. When you have finished connecting the camera using the LAN IP address and port forwarding, you can access the camera directly from the Internet using the WAN IP address and port number. - Page 14 .foscam.co .foscam.co Figure 2.7 Access your IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in your standard browser. For example, you would enter http:// 183.37.28.254:85 NOTE : Make sure port forwarding is successful.
-
Page 15: Dynamic Ip Addresses
.foscam.co .foscam.co 2.2.2 Dynamic IP Addresses DDNS is a service that allows your IP Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name. This means that even though your WAN IP address is constantly changing, you will have a fixed hostname you can use to access your cameras at all times. - Page 16 . Figure 2.11 First method : Use the embedded DDNS to access the camera via the Internet Each Foscam camera has an embedded unique DDNS domain name, the format of this domain name is Shenzhen Foscam Intelligent Technology Co.,...
- Page 17 NOTE : If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.
-
Page 18: Using The Vlc Player
.foscam.co .foscam.co 2.3 Using the VLC player This camera supports RTSP streaming, here you can view the camera using VLC player. RTSP URL rtsp:// [user name][:password]@IP:HTTP port number/videosream The part in the square brackets may be omitted. user name & password: The user name and password to access the camera. - Page 19 .foscam.co .foscam.co Figure 2.14 Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview. Figure 2.15 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel:...
-
Page 20: Ip Camera Connection To The Server
.foscam.co .foscam.co Figure 2.16 If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation Guide about How to configure port forwarding. NOTE If you modify the camera’s username or password, you had better reboot the camera, or else the new username and password cannot take effect when you enter the authentication in the VLC. -
Page 21: Surveillance Software Gui
.foscam.co .foscam.co 3 Surveillance Software GUI Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick installation, you can take time to learn the operation of the software. 3.1 Login Window Figure 3.1 Please check the login window above, it was divided to 4 sections from no. -
Page 22: Modify The Username And Password
.foscam.co .foscam.co 3.2 Modify the Username and Password When you log in for the first time, it will come to the operating of modify the username and password automatically. Figure 3.1 Enter the New Username, New password and Confirm the password. - Page 23 .foscam.co .foscam.co Section1 FOSCAM Logo/ LiveVideo / Settings buttons : FOSCAM LOGO : Path to surveillance window. Click this button and back to the surveillance window Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel and do advanced settings.
- Page 24 .foscam.co .foscam.co 2) 720P/ VGA There are two resolutions, the bigger one is 720P, and the smaller one (VGA) is 640x480 pixels. The bigger the resolution, the better of the image quality is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution VGA.
- Page 25 .foscam.co .foscam.co 3------Left control button, 4------Right control button, 5----- Up-Left control button 6------ Up-Right control button 7----- Down-Left control button 8----- Down-Right control button Click this button and go to center Section5 Cruise settings ( only F9805E have this section) If via RS485 interface to connect an external PT device, you can use this feature.
- Page 26 .foscam.co .foscam.co Click Infra led and there are three modes to adjust the infrared led: Auto, Manual and Schedule. Auto: Select it and the camera will adjust the infra led (on or off) automatically. Manual: Select it and turn off the infra led manually.
- Page 27 .foscam.co .foscam.co again and stop recording. The default storage path is C:\IPCamRecord. You can change the storage path: Go to Settings- >Record-> Storage Location panel. 7------Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen.
- Page 28 .foscam.co .foscam.co Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen. Zoom up/down: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size.
-
Page 29: Advanced Camera Settings
.foscam.co .foscam.co 4 Advanced Camera Settings Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings. 4.1 Device Status Device Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you various information about your camera. -
Page 30: Session Status
.foscam.co .foscam.co Figure 4.2 4.1.3 Session status Session status will display who and which IP is visiting the camera now. Figure 4.3 4.1.4 Log The log record shows who and which IP address accessed or logout the camera and when. -
Page 31: Basic Settings
.foscam.co .foscam.co Click the page number and go to the corresponding page to see more logs . Fill in one page number, click Go button and go to the corresponding page . Figure 4.4 Reboot the camera and clear the log records. -
Page 32: User Accounts
.foscam.co .foscam.co Figure 4.6 Time Zone: Select the time zone for your region from the drop-down menu. Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server. Choose the one that is closest to your camera. - Page 33 .foscam.co .foscam.co Figure 4.7 How to change the password? Firstly, select the account which you want to change the password, then select “Change password”, enter the old password and the new password, lastly click modify to take effect. Figure 4.8 How to add account ? Select one blank column, then enter the new user name, password and privilege, last click Add to take effect.
- Page 34 .foscam.co .foscam.co Figure 4.9 Figure 4.10 Delete : Select the account which you want to delete, then click Delete button to take effect. NOTE : The default administrator account cannot be deleted, but you can add other administrator users. Shenzhen...
-
Page 35: Multi-Camera
The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view multi-surveillance screen on one window. - Page 36 .foscam.co .foscam.co Figure 4.12 Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added. Figure 4.13 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168...
- Page 37 .foscam.co .foscam.co Figure 4.14 Add cameras in WAN If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings in chapter 4.3.3)
- Page 38 .foscam.co .foscam.co Figure 4.16 1----- The camera model: MJ or H264. 2----- The 2nd camera’s name 3----- Fill in the 2nd camera’s DDNS host not LAN IP NOTE: The FI98s series have the same HTTP Port no.. 4 ---- Enter the 2nd camera’s user name and password...
- Page 39 .foscam.co .foscam.co Figure 4.17 Return to video window. You will see all of the cameras accessible through the internet. When you are away from home, you can use the first camera’s DDNS domain name and port to view all the cameras via internet.
-
Page 40: Network
.foscam.co .foscam.co 4.3 Network This section will allow you to configure your camera’s IP, PPOE, DDNS, Wireless Settings, UPnP, Port, Mail Settings and FTP Settings. 4.3.1 IP Configuration If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the same subnet of your router or computer. - Page 41 .foscam.co .foscam.co Figure 4.20 Set the same Subnet Mask and gateway of the camera with your PC . There are two DNS servers . You can set any of them . Same with gateway is also OK . Figure 4.21 If you don’t know the DNS server, you can use the same settings as the Default Gateway.
-
Page 42: Wireless Settings( Fi9804W Fi9805W )
.foscam.co .foscam.co 4.3.2 Wireless Settings( FI9804W FI9805W ) Step 1: Choose “Settings” on the top of the camera interface, and go to the “Network” panel on the left side of the screen, then click “Wireless Settings.” Click the Scan button and the camera will detect all wireless networks around the area. It should also display your router in the list (Figure 4.31). -
Page 43: Pppoe
.foscam.co .foscam.co 2 Enter the password of your router . 1 Click the SSID of your router and the relevant information will be filled in the fields automatically. Figure 4.23 Step 3: Please click on the Save button after all settings have been entered and disconnect the network cable. Never shut down the power of the camera until the IP camera is able to connect to the wireless network. -
Page 44: Ddns
.foscam.co Figure 4.24 4.3.4 DDNS FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. FOSCAM domain name Here take cp4911.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel, you can see the domain name. - Page 45 .foscam.co .foscam.co User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com Here take www.no-ip.com for example : ① Step 1 Go to the website www.no-ip.com to create a free hostname Firstly: Login on www.no-ip.com and click No-IP Free to register.
- Page 46 Step 2 DO DDNS Service Settings within the Camera Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from www.no-ip.com Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example. Firstly, goes to option of DDNS Settings on the administrator panel.
- Page 47 NOTE : If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.
-
Page 48: Upnp
.foscam.co .foscam.co 4.3.5 UPnP Figure 4.30 The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured for port forwarding. Back to the “Device Status” panel, you can see the UPnP status: Figure 4.31 The camera’s software will be configured for port forwarding. - Page 49 .foscam.co .foscam.co and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure 4.34 and 4.35. Select which camera you’d like to change the port for, and right click . Figure 4.33 Modify the Http Port .
-
Page 50: Mail Settings
.foscam.co .foscam.co NOTE: If the camera cannot be accessed, please make sure the port forwarding is succeed. HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP + HTTPS port. Sometimes you need to add the url to the Trusted Sites, Open Internet Explorer if it is not already opened. - Page 51 .foscam.co .foscam.co Figure 4.37 1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select.
- Page 52 .foscam.co .foscam.co Test result . Figure 4.38 If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test mail. Figure 4.39 If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test .
-
Page 53: Ftp Settings
.foscam.co .foscam.co 8) The server does not support the authentication mode used by the device 4.3.8 FTP Settings If you want to upload record images to your FTP server，you can set FTP Settings. Figure 4.40 Figure 4.41 FTP server: If your FTP server is located on the LAN, you can set as Figure 4.41. -
Page 54: Fax
.foscam.co .foscam.co FTP Mode: Here supports two modes: PORT and PASV. Username/password: The FTP account and password. Click Save to take effect. Click Test to see if FTP has been successfully configured. 4.4 Video This section allows you to configure Video stream settings, On screen display and Snapshot settings. -
Page 55: On Screen Display
.foscam.co .foscam.co likely you will get a better video quality, but at the cost of higher network bandwidth consumption. 4.4.2 On Screen Display This page is used to add timestamp and device name on the video. Figure 4.43 Display Timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on the video, Display Camera Name: There are two options: Yes or NO. -
Page 56: Snapshot Settings
.foscam.co .foscam.co The privacy zone Figure 4.45 Click OK button and return to the Privacy Zone page, click Save to take effect. Back to the surveillance window, you can see the privacy area as the following picture: Figure 4.46 4.4.4 Snapshot Settings On this page you can set the snapshot pictures’... -
Page 57: Ir Led Schedule
.foscam.co .foscam.co Figure 4.47 Image Quality: Low, Middle and High. The higher the quality, the picture will be clearer. Alarm Pictures Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will snap pictures to the FTP automatically. -
Page 58: Lens Distortion Correction
.foscam.co .foscam.co Figure 4.48 4.4.6 Lens Distortion Correction On this page you can set the distortion correction. There are three options: Low, Medium, High. Figure 4.49 If you replace the lens, the image has found distortion, uneven and so on, you can modify the Select The Distortion Correction Parameter to calibration images. - Page 59 .foscam.co .foscam.co Figure 4.50 To enable motion detection, follow the steps below: 1 Enable Motion detection 2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be more easily alarmed. Select one motion sensitivity.
- Page 60 .foscam.co .foscam.co B Send E-mail If you want to receive alarm emails when motion is detected, you must select Send E-mail and set Mail Settings first. The alarm email cannot contain the alarm picture if you have not selected Take Snapshot.
- Page 61 .foscam.co .foscam.co Click this button and select all time range . Figure 4.53 ② Specify an alarm schedule Click the week day words, the corresponding column will be selected. For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the camera will alarm.
-
Page 62: Io Alarm(Only Fi9805E)
Figure 4.56 There is an IO alarm input/output lines in the FOSCAM camera tails. Enable IO alarm need this cable to connect to the alarm device (door sensor, infrared sensor, smoke detector, etc.). - Page 63 .foscam.co .foscam.co Figure 4.57 Setting IO alarm On the IO page, Enable the I/O alarm, select the “Send E-mail”and ”Snapshot” before you have configured the mail and FTP. Click this button and select all time range. Figure 4.58 If an IO alarm is triggered and IO alarm output device will always alarm (sound alarm is issued a warning sound, alarm lights in flash etc.).
- Page 64 .foscam.co .foscam.co Figure 4.59 Note: motion detection alarm can also be triggered IO alarm output. Figure 4.60 Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen Foscam Intelligent Technology Co., Limited Tel: 2674 5668 Fax: 2674 5168 Tel: 2674 5668 Fax: 2674...
-
Page 65: Record
.foscam.co .foscam.co 4.6 Record 4.6.1 Storage Location On this page you can change the manually recording storage path, the default storage path is C:\IPCamRecord. Figure 4.61 Recording Location : FTP. Local Recording Location: For Windows OS, the manual recording path is C:/ IPCamRecord, you can change another one. -
Page 66: Schedule Recording
.foscam.co .foscam.co 4.6.4 Schedule Recording If your recording Location is FTP, on the page you can configure the schedule record. Figure 4.64 You can select the main stream or sub stream from the drop-down. You can set the store path of the recording file on the Storage Location page. -
Page 67: Rs485 Configuration
.foscam.co .foscam.co 4.7.2 RS485 Configuration This camera supports the standard 485 cradle head protocol (PELCO-D and PELCO-P). Please configure the RS485 protocol corresponding information first, or else the cradle head may cannot work. Figure 4.66 4.8 Firewall This section explains how to control the access permission by checking the client PC’s IP addresses. It is composed of the following columns: Block access from these IP addresses and Only allow access from these IP addresses. -
Page 68: System
.foscam.co .foscam.co 4.9 System In this panel, you can back up/restore your camera settings, upgrade the firmware to the latest version, restore the camera to default settings and reboot the device. 4.9.1 Back-up& Restore Click Backup to save all the parameters you have set. These parameters will be stored in a bin file for future use. - Page 69 .foscam.co .foscam.co select Upgrade Firmware and enter the username and password, choose the firmware file, and upgrade. Figure 4.70 Enter the User name and password . Figure 4.71 CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don’t upgrade the firmware unnecessarily.
-
Page 70: Factory Reset
6 Operation Example 6.1 Motion Detection Scene Assume that user A use Foscam IP camera FI9804W. He wants to configure the motion detection alarm. when the motion has been detected, it will send emails or upload images to FTP. Procedure 1. - Page 71 .foscam.co .foscam.co Figure 5.1 2. If you select the Send E-mail on the Motion Detection page, then you need to configure the mail message. Choose Alarm > Motion Detection. The Motion Detection page appears. Configure the mail parameters, as shown in figure 5.2.
-
Page 72: Modify The Camera Name And Time On The Video
.foscam.co .foscam.co Figure 5.3 Choose Network > FTP Settings. The FTP Settings page appears. Configure the parameters, as shown in figure 5.4. Figure 5.4 6.2 Modify the Camera Name and Time on the video Scene Assume that user A need to modify the camera name and time upper left corner of the video. -
Page 73: Phone Apps
Figure 5.6 7 Phone APPs FOSCAM provides APP for Android and iOS system, which helps to view and listen to your world anywhere..anytime. Search and install Foscam Viewer on Google Play for Android devices, search and install Foscam Viewer on APP Store for iOS devices. -
Page 74: Appendix
.foscam.co .foscam.co 8 APPENDIX 8.1 Frequently Asked Questions NOTE : Any questions you would meet, please check Network connections firstly. Check the working status revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the network connections. -
Page 75: How To Download And Install The Activex For Google Chrome Users
.foscam.co .foscam.co Click Install Now . Figure 7.2 Reboot the Firefox after the plugin installation is successfully completely, then relogin the camera again, you can see the surveillance window NOTE : If you could not view living video after running the ActiveX, only a red cross in the center of the video or just a black screen. - Page 76 .foscam.co .foscam.co Figure 7.3 Download the plugin and drag it to the Extensions page of Google Chrome. Click Add button to install the plugin . Figure7.4 Click Add button to install the Plugins. Shenzhen Foscam Intelligent Technology Co., Limited Shenzhen...
-
Page 77: I Have Forgotten The Administrator Password
.foscam.co .foscam.co Click Add button to install the plugin . Figure 7.5 Reboot the browser and re-login the camera, you will see the surveillance window. 8.1.3 I have forgotten the administrator password To reset the administrator password, you had better unplug the network cable firstly. After that, press and hold down the RESET BUTTON about 5 seconds. -
Page 78: Can't Access Ip Camera In Internet
.foscam.co .foscam.co no video image. You can resolve this problem by this way: Download ActiveX controller and set the safety property of IE in the PC when you view it first time: IE browser--Tool--Internet Proper--Security--Custom Level--ActiveX control and Plug-ins. Three options of front should be set to be “Enable”, The ActiveX programs read by the computer will be stored. -
Page 79: Upnp Always Failed
.foscam.co .foscam.co 2 The port which camera used is blocked by Firewall or Anti-virus software. Please change another port number and try again. (Figure6.7) 3 Port forwarding is not successful(Figure4.30) Check these settings and make sure they are correct. 8.1.8 UPnP always failed UPnP only contains port forwarding in our recent software. - Page 80 .foscam.co .foscam.co Figure 7.8 Remove the plug-in on Safari If you need to remove the plug-in from Safari, please open a Finder window. From the Finder menu bar click Go ---> Go to Folder Copy then paste the following: Library/Internet Plug-Ins Click Go then move to the Internet Plug-Ins.
- Page 81 .foscam.co .foscam.co Figure 7.10 Remove the plug-in from Firefox If you need to remove the plug-in from Firefox, please open a new tab. Click the Firefox icon on the top right, then go to Add-ons. Find the npIpcam 2.0.1.x, and click the Remove button to delete it.
-
Page 82: Default Parameters
.foscam.co 8.2 Default Parameters Default network Parameters IP address: obtain dynamically Subnet mask: obtain dynamically Gateway: obtain dynamically DDNS: Embedded FOSCAM DDNS Service Username and password Default admin username: admin with a blank password 8.3 Specification ITEMS FI9803 Image Sensor... - Page 83 .foscam.co .foscam.co Firewall Supports IP Filtering Reset Reset button is available Power Supply DC 12V/1.0A Power Power Consumption 5.5 Watts (Max.) Dimension(mm) 153(L)x 92(W)x 86(H) Physical Gross Weight 696g Net Weight 380g Operating Temperature -20°~ 55°C (-4°F ~ 131°F) Operating Humidity...
- Page 84 .foscam.co .foscam.co System iOS, Android Requirements Browser Microsoft IE6 and above version or compatible browser; Mozilla Firefox; Google Chrome; Apple Safari. Motion Detection Alarm via E-Mail, upload alarm snapshot to FTP Other Features Privacy Block Set privacy area manually User Accounts...
- Page 85 .foscam.co .foscam.co Alarm inform Support Email、FTP etc alarm inform way DC 12V/2.0A (EU,US,AU adapter or other types option), POWER Interface Power Consumption ﹤8 Watts Hardware Audio Input/Output Interface Interface One audio input jack, One audio output jack. Reset Buttons One Reset Operate Temper -20°...
-
Page 86: Ce & Fcc
.foscam.co .foscam.co Support IP address static IP address, dynamic IP address Alarm detection The motion detecting 、 I/O alarm Alarm Alarm inform Support Email、FTP、I/O output alarm etc alarm inform way DC 12V/2.0A (EU,US,AU adapter or other types option), POWER Interface Power Consumption ﹤8 Watts... -
Page 87: Warranty
Distributors may sell products to resellers who then sell products to end users. No warranty service is provided unless the product is returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications. - Page 88 Normal wear and tear. Return Procedures Please read FOSCAM warranty policy & policy of your reseller first before sending items back to point-of-purchase. Customer must first contact point-of-purchase to obtain a Return Merchandise Authorization (RMA) number before returning the product.
- Page 89 Purchaser's exclusive remedy, as against FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it without incurring any liability.
-
Page 90: Obtaining Technical Support
User’s Guide has not answered. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, please contact our service department: tech@foscam.com...
