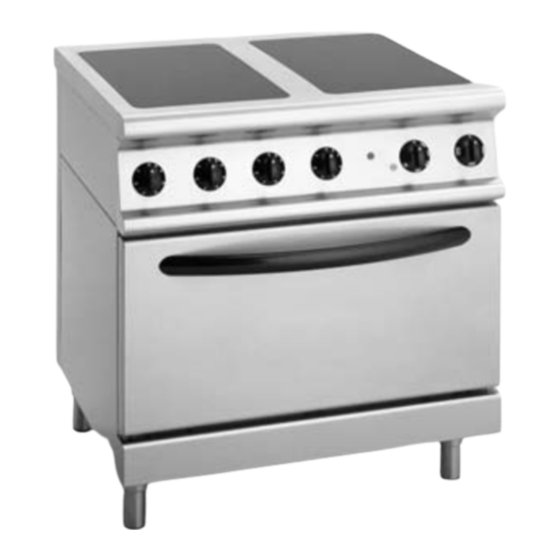

ELECTRIC RANGES CERAMIC GLASS
700 New
TYPE: 72/02VTC, 74/02VTC, 72/02TVTC, 74/02TVTC, 74/02VTCE
Installation and Operation Manual
S/N:
Rev.: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 72/02VTC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metos 72/02VTC

Summary of Contents for Metos 72/02VTC

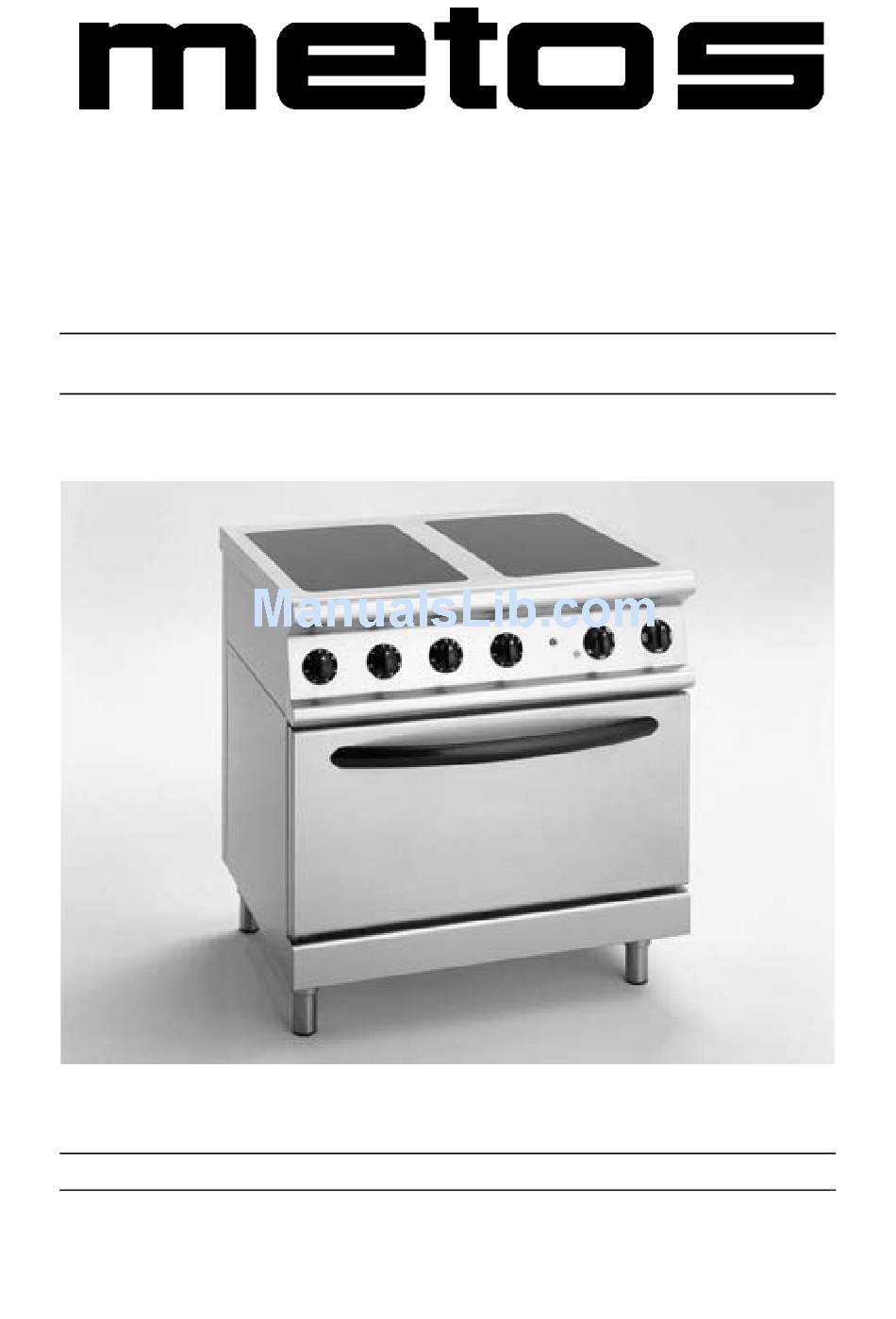

  • Page 1 ELECTRIC RANGES CERAMIC GLASS 700 New TYPE: 72/02VTC, 74/02VTC, 72/02TVTC, 74/02TVTC, 74/02VTCE Installation and Operation Manual S/N: Rev.: 1.0...
  • Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
  • Page 4 4.2.2004 Rev. 1.0...

  • Page 5: Table Of Contents

    4.2.2004 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking correspondence between the appliance and the manual ....... 2 2. Safety ......................3 2.1 Using the appliance safely ..................... 3 2.2 Safety instructions in case of malfunction ..............
  • Page 6 4.2.2004 Rev. 5. Installation ....................15 5.1 General information ..................... 15 5.1.1 Regulatory installation conditions ............... 15 5.2 Exhausting fumes ......................15 5.3 Possible environmental interference ................15 5.4 Storage ......................... 16 5.5 Unpacking the unit ...................... 16 5.6 Disposing of packaging materials ................16 5.7 Positioning ........................

  • Page 7: General

    4.2.2004 Rev. 1.0 General 1. General Read the instructions in this manual carefully, as they contain important information on how to install, use and service the appliance properly, effectively, and in a safe manner. Keep this manual in a safe place for future reference by other operators of the appliance. This appliance should be installed following the instructions provided by the manufactur- er and in compliance with all applicable local regulations.

  • Page 8: Checking Correspondence Between The Appliance And The Manual

    4.2.2004 Rev. 1.0 General 1.3 Checking correspondence between the appliance and the manual The rating plate of the appliance shows its serial number. If you have lost the original us- er’s manual, you can order a new one from the manufacturer or local representative. When ordering new manuals, it is essential to quote the serial number shown on the rating plate.

  • Page 9: Safety

    4.2.2004 Rev. 1.0 Safety 2. Safety 2.1 Using the appliance safely Being designed for professional use, this appliance should be used by qualified personnel only. Never leave the appliance unattended while in use! Do not move the appliance while hot! 2.2 Safety instructions in case of malfunction In the event of failure or malfunction, disconnect power to the appliance.
  • Page 10 4.2.2004 Rev. 1.0 Safety...

  • Page 11: Functional Description

    4.2.2004 Rev. 1.0 Functional description 3. Functional description 3.1 Intended application of the appliance This electric glass-ceramic range is intended to cook food in pots or pans placed on the glass-ceramic cooking surface. 3.1.1 Prohibited use This appliance is not designed to cook food directly on the glass-ceramic cooking surface, as if it were a griddle plate.

  • Page 12: Cooking Zones

    4.2.2004 Rev. 1.0 Functional description 3.3 Cooking zones Fig. 1 Cooking zone, diameter 230 mm (1.4 kW) Cooking zone, diameter 150 mm (1 kW) • Each cooking zone is marked by concentric, silk-screen-printed rings that show the different heating zones; •...

  • Page 13: Operating Switches And Indicator Lights

    4.2.2004 Rev. 1.0 Functional description 3.5.1 Operating switches and indicator lights Fig. 2 Cooking zone power regulator knob "Oven ON" indicator light (in models equipped with oven) Power indicator light By turning the knob to the desired setting, the power indicator light will come on and the selected cooking zone will start heating.
  • Page 14 4.2.2004 Rev. 1.0 Functional description...

  • Page 15: Operating Instructions

    4.2.2004 Rev. 1.0 Operating instructions 4. Operating instructions 4.1 Before you start using the appliance In the event of breakage of the glass-ceramic cooktop, the appliance must not be used due to electric shock hazard. 4.1.1 Preparing the appliance to operate Remove all packing materials and adhesive films from the range very carefully.

  • Page 16: Using The Appliance

    4.2.2004 Rev. 1.0 Operating instructions 4.2 Using the appliance 4.2.1 Turning on the cooktop Energize the appliance by turning on the safety switch installed externally. Set the cook- ing zone power regulator (Fig. 3 further above) to the desired cooking temperature. The indicator lights will come on;...

  • Page 17: Turning On The Electric Oven [74Ce]

    4.2.2004 Rev. 1.0 Operating instructions 4.2.4 Turning on the electric oven [74CE] Select the required heating direction using the knob shown as item 21 in Fig. 4. The power indicator light (item 22) will come on. Set the required cooking chamber temperature by turning the operating thermostat knob clockwise (item 20).

  • Page 18: After-Use Care

    4.2.2004 Rev. 1.0 Operating instructions 4.3 After-use care 4.3.1 Cleaning Before cleaning the appliance, switch it off and disconnect power to the appliance. General information The main causes for stainless steel wear or corrosion are: • using abrasive or acid detergents, especially chlorine-based products such as hy- drochloric acid or sodium hypochlorite (bleach).

  • Page 19: Idle Period

    4.2.2004 Rev. 1.0 Operating instructions Rust Should you need to eliminate rust stains, contact manufacturers of industrial detergents to find a detergent that can remove such stains. Industrial descaling products can also be used to that end. After rubbing off the stain and rinsing with clean water, an alkaline de- tergent may be required to neutralise any acid compounds left on the surface.
  • Page 20 4.2.2004 Rev. 1.0 Operating instructions...

  • Page 21: Installation

    4.2.2004 Rev. 1.0 Installation 5. Installation 5.1 General information The manufacturer cannot be held liable for any injuries to persons or damage to property resulting from installation errors or from inappropriate use of the appliance and is not re- sponsible for any faults caused by defective installation. In such cases, the warranty shall be null and void.

  • Page 22: Storage

    4.2.2004 Rev. 1.0 Installation 5.4 Storage If the appliance is stored in a warehouse where room temperature is below 0°C (32°F), it should be warmed up to at least +10°C (50°F) prior to use. 5.5 Unpacking the unit Prior to installation, remove all packing materials from the appliance. Some parts are wrapped in adhesive film, which should be thoroughly removed (see paragraph "4.1.1 Preparing the appliance to operate").

  • Page 23: Electrical Connections

    4.2.2004 Rev. 1.0 Installation 5.8 Electrical connections 5.8.1 General information The appliance must always be connected to an earthing (grounding) system while in op- eration. The appliance is pre-set to be connected to the electrical switchboard. Before connecting the appliance to the power supply network, please check: •...

  • Page 24: Connecting A Type "Y" Power Cord To The Appliance's Terminal Block, Models 72/ 02Vtc, 72/02Tvtc, 74/02Vtc, And 74/02Tvtc

    4.2.2004 Rev. 1.0 Installation 5.8.2 Connecting a type "Y" power cord to the appliance’s terminal block, models 72/ 02VTC, 72/02TVTC, 74/02VTC, and 74/02TVTC The power cord can only be replaced by the manufacturer, by the manufacturer’s service or by a technician having similar qualifications (the appliance is supplied complete with power cord).

  • Page 25: Connecting A Type "Y" Power Cord To The Appliance's Terminal Block, Model 74/ 02Vtce

    4.2.2004 Rev. 1.0 Installation 5.8.3 Connecting a type "Y" power cord to the appliance’s terminal block, model 74/ 02VTCE The power cord can only be replaced by the manufacturer, by the manufacturer’s service or by a technician having similar qualifications (the appliance is supplied complete with power cord).

  • Page 26: Equipotential Bonding Terminal

    4.2.2004 Rev. 1.0 Installation In order to avoid the risk of tearing the power cord, lock it in place using the cable gland (item 32 in Fig. 8) fitted on the appliance. The length of the ground (earth) cable should be such as to allow it to suffer any possible mechanical stress the live leads.

  • Page 27: Rating Plate

    4.2.2004 Rev. 1.0 Installation 5.10 Rating plate The rating plate showing the specifications of the corresponding model is applied in the position shown in the installation and connection drawings and includes all data listed be- low: Manufacturer: Model: (see front page) Serial number: Year of manufacture: Category:...
  • Page 28 4.2.2004 Rev. 1.0 Installation...

  • Page 29: Troubleshooting

    4.2.2004 Rev. 1.0 Troubleshooting 6. Troubleshooting If the appliance fails to work, check the fuse box for blown fuses (overload protection). Have the overload protection device checked by a qualified technician. Users are not allowed to perform any maintenance operations on any parts of this appli- ance.
  • Page 30 4.2.2004 Rev. 1.0 Troubleshooting wire shelves not horizontal; level the appliance using the adjustable feet, and check that the wire shelves are horizontal: such operation is essen- tial to ensure even cook- ing. one of the two heating ele- Replace it (see chapter ments is faulty.
  • Page 31 4.2.2004 Rev. 1.0 Technical specifications 8. Technical specifications Connection diagrams ......36 Installation and connection drawings. 42 Technical specifications table....49 CE conformity declaration ....51...
  • Page 32 SC00430: Wiring diagram 74/02VTCE 3/N/PE 400V ~ 50/60 Hz...
  • Page 33 4.2.2004 Rev. 1.0 Technical specifications LE00398: key to wiring diagram SC00430 74/02VTCE - 3/N/PE~400V 50-60 Hz Letter code Art. no. Descriptions Specifications A046150 Safety thermostat 350°C - 3F A044601 Control thermostat 50 - 275°C - 3F A038506 Power indicator light 400V - 150°C A038506 Operation indicator light...
  • Page 34 SC00431: Wiring diagram 74/02VTC,74/02TVTC 3/N/PE 400V ~ 50/60 Hz...
  • Page 35 4.2.2004 Rev. 1.0 Technical specifications LE00399: key to wiring diagram SC00431 74/02VTC,74/02TVTC - 3/N/PE~400V 50-60 Hz Letter code Art. no. Descriptions Specifications A038506 Power indicator light 400V - 150°C E26-27-28-29 A001404 Residual heat indicator light 230V E51-52-53-54 A001401 Heating element 1000W - 1400W - 230V R1-2-3-4 A001402...
  • Page 36 SC00432: Wiring diagram 72/02VTC,72/02TVTC 3/N/PE 400V ~ 50/60 Hz...
  • Page 37 4.2.2004 Rev. 1.0 Technical specifications LE00400: key to wiring diagram SC00432 72/02VTC,72/02TVTC - 3/N/PE~400V 50-60 Hz Letter code Art. no. Descriptions Specifications A038506 Power indicator light 400V - 150°C E26-27 A001404 Residual heat indicator light 230V E51-52 A001401 Heating element...
  • Page 38 4.2.2004 Rev. 1.0 Technical specifications Installation drawing 72/02VTC Connection cable entry Distance between feet Cooking zone dimensions Rating plate Power connection terminals...
  • Page 39 4.2.2004 Rev. 1.0 Technical specifications Installation drawing 74/02VTC Connection cable entry Distance between feet Cooking zone dimensions Rating plate Power connection terminals...
  • Page 40 4.2.2004 Rev. 1.0 Technical specifications Installation drawing 74/02VTCE Connection cable entry Distance between feet Cooking zone dimensions Rating plate Power connection terminals...

  • Page 41: Technical Specifications

    4.2.2004 Rev. 1.0 Technical specifications Installation drawing 72/02TVTC Connection cable entry Distance between feet Cooking zone dimensions Rating plate Power connection terminals...
  • Page 42 4.2.2004 Rev. 1.0 Technical specifications Installation drawing 74/02TVTC Connection cable entry Distance between feet Cooking zone dimensions Rating plate Power connection terminals...
  • Page 43 4.2.2004 Rev. 1.0 Technical specifications...
  • Page 44 4.2.2004 Rev. 1.0 Technical specifications...
  • Page 45 5 x 4 mm2 Wire cross section 74,74T 4 x 6 mm2 Wire cross section 74CE 5 x 6 mm2 Wire cross section 74CE 4 x 10 mm2 E=700 New 72=72/02VTC, 74=74/02VTC, 72T=72/02TVTC, 74T=74/02TVTC, 74CE=74/02VTCE A=3/N/PE ~400V 50Hz, H=3/PE ~230V 50Hz...
  • Page 46 4.2.2004 Rev. 1.0 Technical specifications...
  • Page 47 Se declara que el siguiente aparato: Cocinas electricas vetroceramica gama 700 New Mod.: 72/02VTC, 74/02VTC, 74/02VTCE, 72/02TVTC, 74/02TVTC è conforme ai requisiti basilari previsti dalle seguenti direttive CEE: is in specification with the fundamental requirements of the following EC directive: est conforme aux exigences fondamentales des directives de la Communautè...
