Assembly before installation
According to chosen option, to save more storage space and
shipping. The stove leg couldn't be assembled in the shop, you
must assembly before install the stove.

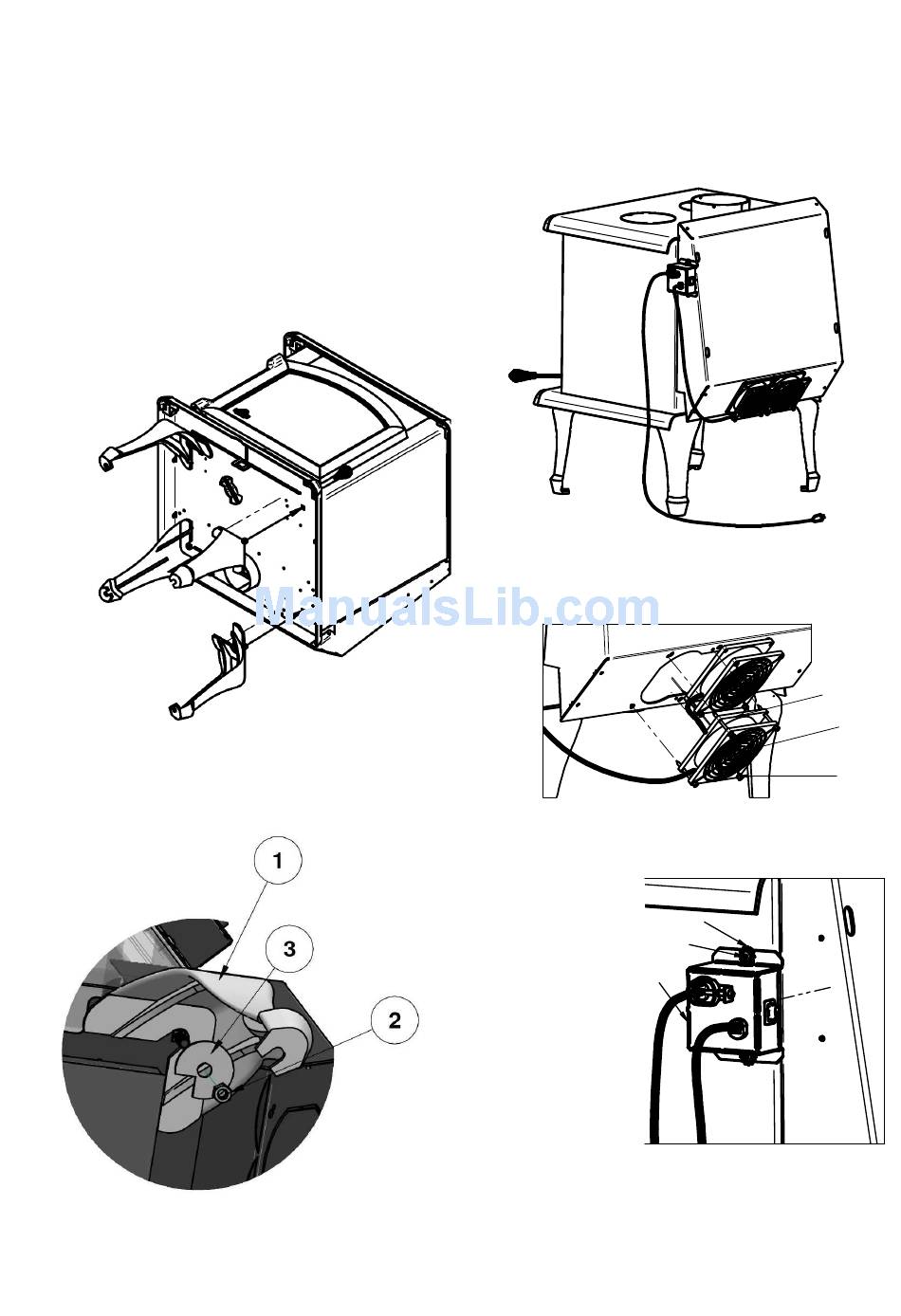

Legs installation
1)
Remove legs and bricks from combustion chamber to
lighten the stove.
2)
Unscrew the stove from the skids.
3)
Put the stove on the back and be careful to protect the
paint.
4)
Unscrew the nut not completely
5)
Install the legs (#1) like the illustration and secure it with
nut and washer (#2, #3) (Attention: Be sure the legs are
in place, correctly positioned and in contact with the
bottom of the stove.)
April 28th, 2016
Fan and Snap disc box installation
1)
Screw fan putting electrical wire in the centered bottom
of both Fan
.
2)
Screw snap disc box into the holes made for that at the
back side near the vent box.
Star Washer
Screw
Thermodisc
Box
Fan
Grate
Screws
8
