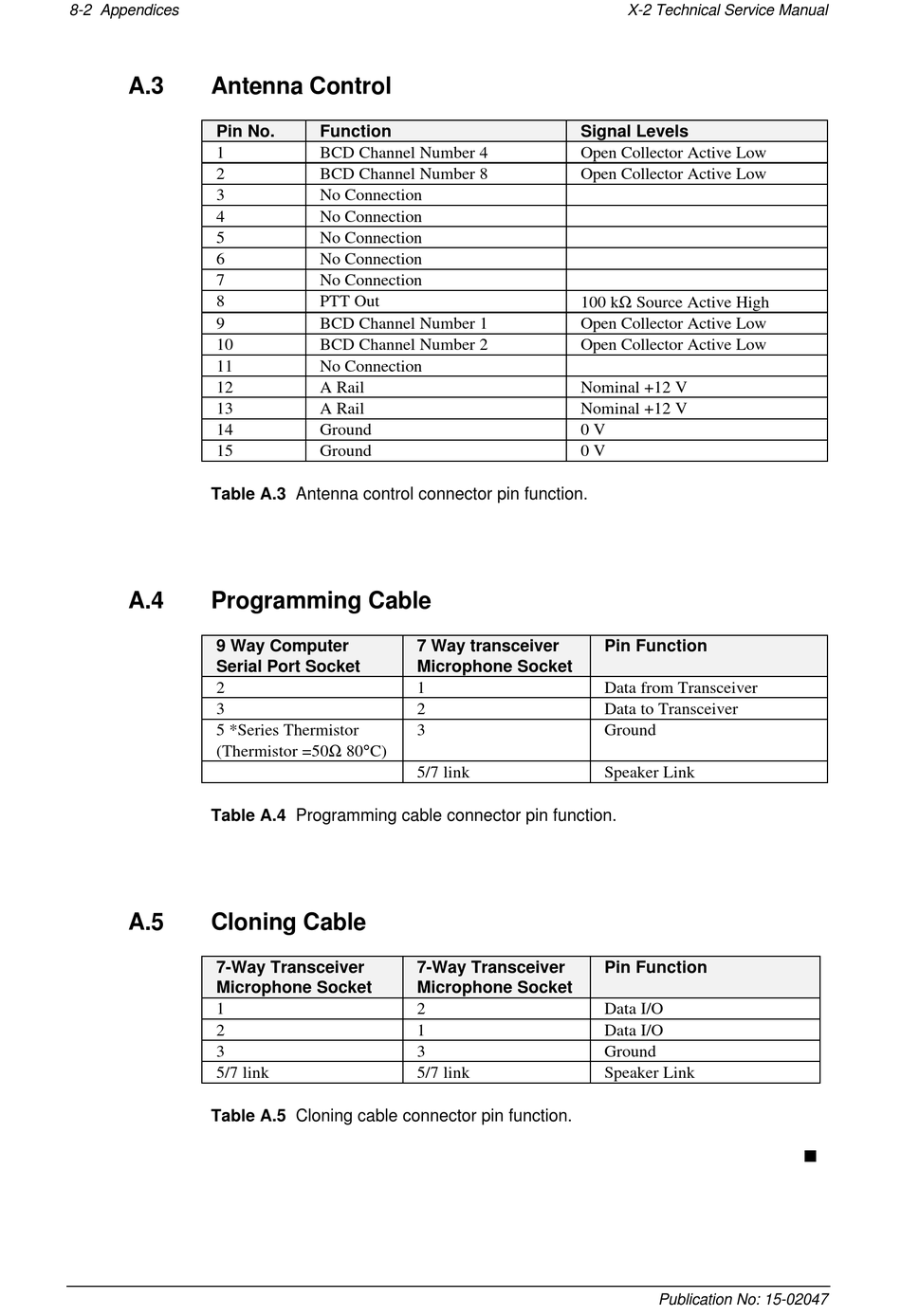

8-2 Appendices
A.3
Antenna Control
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Table A.3 Antenna control connector pin function.
A.4
Programming Cable
9 Way Computer
Serial Port Socket
2
3
5 *Series Thermistor
(Thermistor =50Ω 80°C)
Table A.4 Programming cable connector pin function.
A.5
Cloning Cable
7-Way Transceiver
Microphone Socket
1
2
3
5/7 link
Table A.5 Cloning cable connector pin function.
Function
BCD Channel Number 4
BCD Channel Number 8
No Connection
No Connection
No Connection
No Connection
No Connection
PTT Out
BCD Channel Number 1
BCD Channel Number 2
No Connection
A Rail
A Rail
Ground
Ground
7 Way transceiver
Microphone Socket
1
2
3
5/7 link
7-Way Transceiver
Microphone Socket
2
1
3
5/7 link
X-2 Technical Service Manual
Signal Levels
Open Collector Active Low
Open Collector Active Low
100 kΩ Source Active High
Open Collector Active Low
Open Collector Active Low
Nominal +12 V
Nominal +12 V
0 V
0 V
Pin Function
Data from Transceiver
Data to Transceiver
Ground
Speaker Link
Pin Function
Data I/O
Data I/O
Ground
Speaker Link
Publication No: 15-02047
