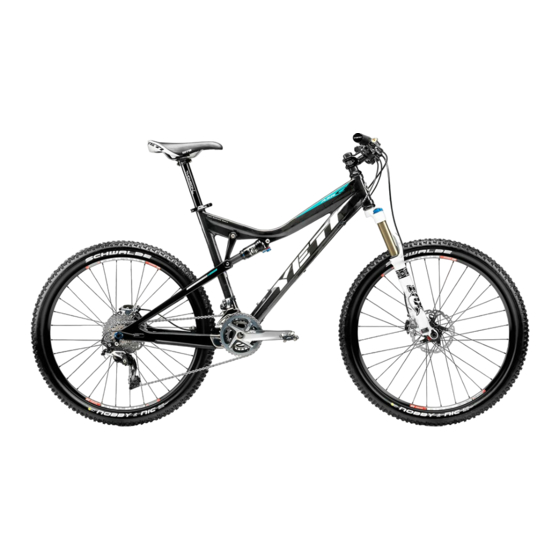

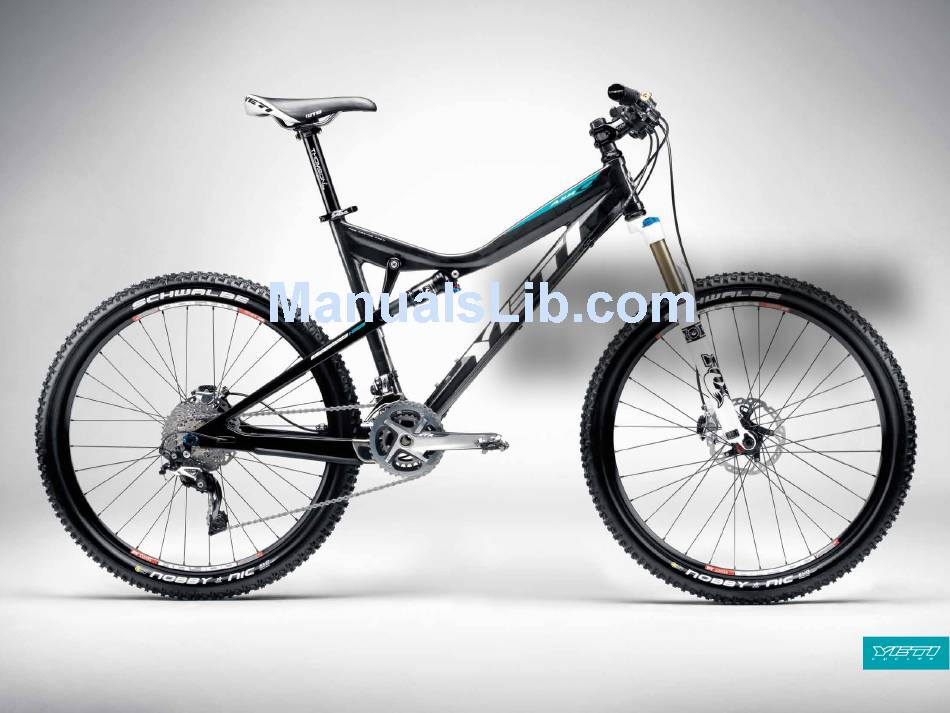

- Page 1 2012 yeti asr c YETI CYCLES 600 Corporate Circle, Unit D Golden, CO 80401 888.576.9384 www.yeticycles.com...
-
Page 2: Table Of Contents
table of contents BranD Overview Frame FeatUres GeOmetery maintenanCe sCheDUle setup Overview shOCk setUp rp23 QUiCk start GUiDe rp23 CaBle/line setUp technical assemBly Overview Chip system explODeD views reBUilD kits legal warranty COntaCt inFOrmatiOn... - Page 3 welcome to the tribe. congratulations on your purchase of a new yeti. We are confident your new bicycle will exceed This manual outlines basic setup and your expectations for value, performance, and maintenance recommendations of your new ride quality. Each frameset and component Yeti.
- Page 4 everything about the The front and rear triangles are constructed entirely of high modulus, hand laid-up carbon with co-molded aluminum lugs at asr carbon screams the bearing and pivot connections. Depending on your riding style and geometry preference the speed and efficiency. ASR-C is compatible with 100mm or 120mm forks.
- Page 5 geometry 100 mm fork 18.0 19.0 21.0 22.4 23.4 24.4 69.0 69.0 69.0 73.0 73.0 73.0 16.9 16.9 16.9 42.5 43.5 44.6 12.8 12.8 12.8 27.4 27.4 27.7 18.5 18.5 18.5 120 mm fork 18.0 19.0 21.0 22.6 23.6 24.6 68.0 68.0 68.0...
-
Page 6: Overview
keep your new yeti fresh and clean overview torque Following these guidelines will help maintain the performance of your bicycle and prevent Yeti strongly recommends using a torque wrench when assembling your frame. Torque more serious problems from arising. It is important to remember that service intervals can vary specifications for individual parts on the ASR-C are listed below, as well as in the step by step depending on climate, trail conditions and riding frequency. -
Page 7: Shock Setup Rp23
shock setup yeti tips tools needed Inspect your shock for any visible damage. • Shock Pump If oil is leaking or you notice any damage to • Tape Measue the surfaces or seals, please contact the Fox Racing Shox service center for repair at 800. FOx.shOx. -
Page 8: Quick Start Guide Rp23
shock setup 04. rebound rp23 The rebound adjustment has 13 clicks of adjustment. The rebound knob is the red adjustment dial located above your blue pro-pedal adjustment lever. As a general rule, adjustments that are too fast (counter- clockwise adjustment) will produce a springy ride with excessive kick-up of the rear end causing a bucking sensation. -
Page 9: Front Derailleur
cable setup yeti tips The ASRC has full cable housing. By using full cable housing, we have eliminated break points in the line of your shifter housing. This allows riders to experience better overall shifting performance by reducing the entrance of unwanted elements such as sweat and sediment. use of full cable housing helps prevent corrosion from the elements and keeps the shifting smoother for a longer period of time. - Page 10 Warning: service on Yeti bicycles requires special knowledge and tools. Yeti cycles recommends that all service and repairs be performed by an authorized Yeti Dealer Install the shock on the frame. Insert a 34.0mm Install the dogbone onto the frame.
-
Page 11: Chip System
assembly chip system Slide the swingarm over the main pivot bore, use the fox guide pin to align and hold the use a 2.5mm allen key to loosen the two Fit the 12MM insert hanger into the groove on using the grooves in the swingarm to properly seatstays, dogbone, and shock together. -
Page 12: Exploded Views
exploded views part # DesCriptiOn asr-C FrOnt trianGle asr-C swinGarm FOx RP23 [6.5”x1.5”] 300020020 gARlOCK DP BuShIng .5”.5” 300020034 reDUCer FOx 8x22mm 300020037 reDUCer FOx 8x23.5mm 200020171 asr-C CarBOn DOGBOne 300030188 pivOt pin 17x7.5/10x1thrD 52.4 300020001 BearinG 6903 max 300030189 pivOt pin BOlt m10 x 1 x 22 300030110 BOlt-ti-male m6x1 12 mm... -
Page 13: Rebuild Kits
rebuild kits part # DesCriptiOn 200020171 asr-C ‘08-’12 DOGBOne w/BearinG 200020139 asr-C ‘08-’12 mOUntinG harDware 300020036 BearinG 698max ext raCe 1.5 300030062 washer 6.5x12.5x0.5 mm 200020171 asr-C CarBOn DOGBOne 300030069 washer 8.5x12.5x0.5 mm 300030190 BOlt-ti-Female 8.0x40.5mm 200020137 asr-C ‘08-’12 BearinG reBUilD kit 300030111 BOlt-ti-Female 8.0x34.0mm 300020001... -
Page 14: Warranty
Yeti Cycles will make replacement parts available at a minimum charge to the original owner in the event of a crash or any other non-warranty situation. Yeti Cycles does this at its sole discretion and reserves the right to refuse this offer.
