Summary of Contents for Yeti Cycles Yeti 4X

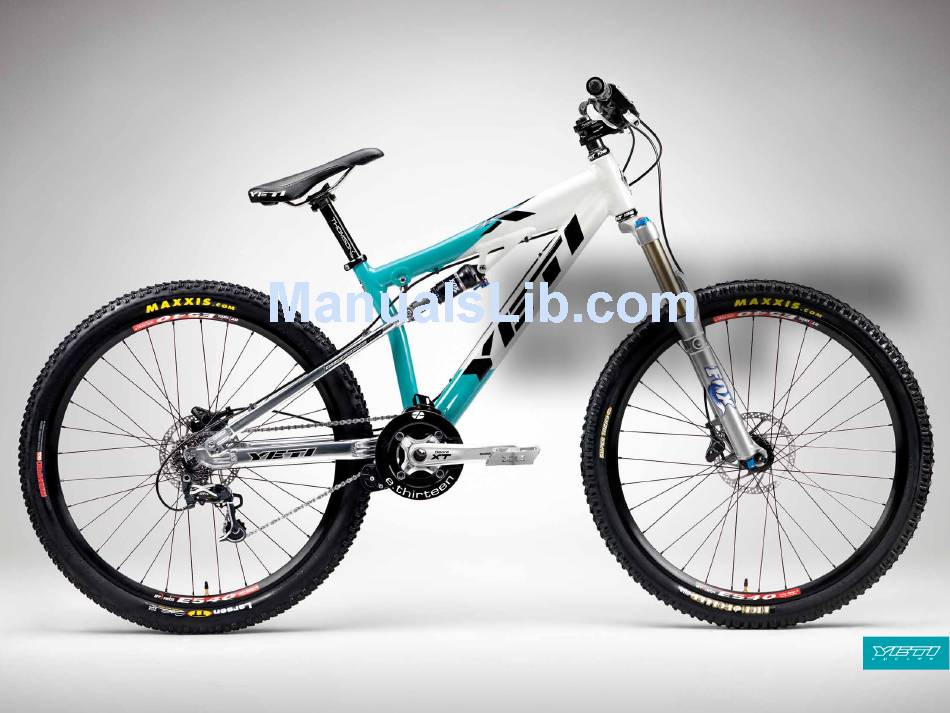

- Page 1 2012 yeti 4 x YETI CYCLES 600 Corporate Circle, Unit D Golden, CO 80401 888.576.9384 www.yeticycles.com...
-
Page 2: Table Of Contents
table of Contents BranD Overview Frame FeatUres GeOmetery maintenanCe sCheDUle setup Overview shOCk setUp QUiCk start GUiDe CaBle/line setUp technical assemBly Overview explODeD views reBUilD kits legal warranty COntaCt inFOrmatiOn... - Page 3 welCome to the tribe. Congratulations on your purChase of a new yeti. We are confident your new bicycle will exceed This manual outlines basic setup and your expectations for value, performance, and maintenance recommendations of your new ride quality. Each frameset and component Yeti.
- Page 4 yeti x purpose built Yeti pure tubing is custom butted and tapered 7005 aluminum. This makes the frame lightweight and strong without the use of for raCing and abuse. gussets. The unique shape provides added strength at the head tube junctions. The 4X uses a 1.5 inch stroke, 6.5 inch eye to eye shock, by Fox Racing Shox.
-
Page 5: Geometery
geometry 100 mm fork 16.5 18.0 23.1 24.1 67.0 67.0 72.0 72.0 17.1 17.1 44.2 45.2 13.4 13.4 27.0 28.1 20.5 20.5 *all measurements are in inches short 5'0" (153 Cm) - 5'7" (171 Cm) long 5'7" (171 Cm) - 6'5" (196 Cm) - Page 6 keep your new yeti fresh and Clean overview torque Following these guidelines will help maintain the performance of your bicycle and prevent Yeti strongly recommends using a torque wrench when assembling your frame. Torque more serious problems from arising. It is important to remember that service intervals can vary specifications for individual parts on the 4X are listed below, as well as in the step by step depending on climate, trail conditions and riding frequency.
-
Page 7: Shock Setup
shoCk setup yeti tips tools needed Inspect your shock for any visible damage. • Shock Pump If oil is leaking or you notice any damage to • Tape Measue the surfaces or seals, please contact the Fox Racing Shox service center for repair at 800. FOx.shOx. -
Page 8: Quick Start Guide
shoCk setup 04. rebound The rebound adjustment has 12 clicks of adjustment. The rebound knob is the red adjustment dial located above your blue pro-pedal adjustment lever. As a general rule, adjustments that are too fast (counter- clockwise adjustment) will produce a springy ride with excessive kick-up of the rear end causing a bucking sensation. -
Page 9: Rear Derailleur
Cable setup yeti tips The 4X has full cable housing. By using full cable housing, we have eliminated break points in the line of your shifter housing. This allows riders to experience better overall shifting performance by reducing the entrance of unwanted elements such as sweat and sediment. Use of full cable housing helps prevent corrosion from the elements and keeps the shifting smoother for a longer period of time. - Page 10 Warning: service on Yeti bicycles requires special knowledge Torque to 20-25 in/lb. and tools. Yeti cycles recommends that all service and repairs be performed by an authorized Yeti Dealer Install the shock on the frame. Insert a 31.0mm Install the dogbone onto the frame. Insert a 31.0...
- Page 11 assembly assembly Align the shock and dogbone. Orient the lower Slide the swingarm over the main pivot bore, Attach the seat stays to the chain stays. The Prep an M6x1x12mm male Ti bolt with blue portion of the shock between the lower bearings using the grooves in the swingarm to properly inside of the seat stays should be flush with the loctite and install into the 53.0mm Ti stud.
-
Page 12: Exploded Views
exploded views part # DesCriptiOn FrOnt trianGle 4x Chainstay 4x seatstay 4x FOX RP23 [6.5”X1.5”] 300020020 GARLOCk DP BUShING .5”X.5” 300020034 reDUCer FOx 8x22mm 300040228 4x DOGBOne 300030115 pivOt pin 17x7.5/10x1thrD 58.5 300020030 BearinG 3903 2rs max 300030179 washer-CUstOm pivOt pin-7075 300040349 Barrel insert m5 300030196... -
Page 13: Rebuild Kits
rebuild kits part # DesCriptiOn 200020097 4x ‘06-’12 master reBUilD kit 300030062 washer 6.5x12.5x0.5 mm 300020030 BearinG 3903 2rs max 300030069 washer 8.5x12.5x0.5 mm 300020032 BearinG 398 2rs max DOUBle rOw 300030114 BOlt-ti-Female 8.0x16.5mm 300030056 BOlt Cap m3x0.5x12 mm 300030114 BOlt-ti-Female 8.0x16.5mm 300030110 BOlt-ti-male m6x1 12 mm... -
Page 14: Warranty
Yeti Cycles will make replacement parts available at a minimum charge to the original owner in the event of a crash or any other non-warranty situation. Yeti Cycles does this at its sole discretion and reserves the right to refuse this offer.
