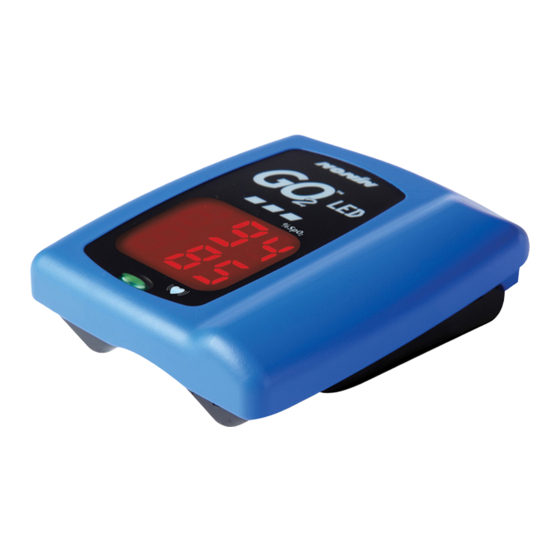

Nonin GO2 LED Achieve User Manual

Fingertip pulse oximeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GO2 LED Achieve and is the answer not in the manual?

Questions and answers

Related Manuals for Nonin GO2 LED Achieve

Summary of Contents for Nonin GO2 LED Achieve

  • Page 1 User Guide...

  • Page 2: Table Of Contents

    Table of Contents Introduction ....................1 Care and Maintenance ..................15 Contents of Package ..................1 Specifications ....................20 Symbols ......................2 Equipment Response Time ................23 Intended Use ....................4 Testing Summary ..................24 Installing the Battery..................8 Accuracy Testing ................24 Applying the GO LED Achieve to Your Finger ..........10 Pulse Rate Motion Testing ..............24 Activating the Device and Verifying Operation ..........12 Low Perfusion Testing ................24...

  • Page 3: Introduction

    Introduction Symbols Thank you for buying the GO LED Achieve Fingertip Pulse Oximeter. This small, portable The following symbols are associated with your GO LED Achieve. device will give you important information about your oxygen saturation (the amount of Symbol Definition of Symbol oxygen in your blood) and pulse rate at your fingertip! The GO LED Achieve is easy to use...

  • Page 4: Intended Use

    Battery Intended Use LED Achieve is intended to measure blood oxygen saturation (%SpO ) (the amount Indicates separate collection for electrical and electronic equipment (WEEE). of oxygen in your blood) and pulse rate of both adults and children. It is designed for fingers (not the thumb) between 0.3 and 1.0 inch (0.8 –...
  • Page 5 Cautions • The GO LED Achieve may not work if you have poor circulation. Rub your finger to increase circulation, or place the device on another finger. • The GO LED Achieve might misinterpret excessive movement as good pulse strength. Limit finger movement as much as possible when using the device.

  • Page 6: Installing The Battery

    2. Insert one new 1.5 volt AAA-size battery. Follow the plus (+) and minus (-) markings including the battery. for battery direction (as shown inside of the battery compartment). • The GO LED Achieve is a precision electronic instrument and must be repaired by Nonin Technical Service.

  • Page 7: Applying The Go Led Achieve To Your Finger

    3. Carefully reposition the battery door. NOTE: Do not force it into place; it fits only Applying the GO LED Achieve to Your Finger when positioned correctly. Hold the GO LED Achieve with the display facing toward you; slide your finger into the opening at the bottom of the device, as shown below, until the fingertip touches the built-in stop guide.

  • Page 8: Activating The Device And Verifying Operation

    NOTE: Correct positioning of the device on your finger is critical for accurate measurements. Activating the Device and Verifying Operation While on the finger, do not press the GO LED Achieve against any surface and do not The GO LED Achieve automatically turns on when a finger is inserted. When a finger is squeeze or hold it together.

  • Page 9: Reading Your Results

    Reading Your Results continuous green-colored pulse quality before relying on the displayed values. It is common for the displayed values to fluctuate slightly over a period of several seconds. If the pulse When you put your finger in the GO LED Achieve, you’ll notice an LED display come on.

  • Page 10: Care And Maintenance

    LED Achieve in liquid or clean it with agents containing yellow if the device is on ammonium chloride, isopropyl alcohol, or products that are not listed in this User’s Guide. If the problem persists contact the finger). Nonin Technical Service.
  • Page 11 3. Select a different finger. at room temperature for at least 30 minutes. For more information, please After unit has been dropped or shocked, see Reading Your Results. battery may need to be removed and reinstalled. If the problem persists contact Nonin Technical Service.

  • Page 12: Specifications

    Use the lanyard with caution. Infrared 910 nanometers @ 1.2mW For more information about Nonin parts and accessories, contact your distributor, or Max Average contact Nonin at (877) 577-2635 (USA and Canada) or (763) 553-9968.
  • Page 13 Temperature (Operating) +41°F to +104°F (5°C to +40°C) Classifications per IEC 60601-1 / CAN/CSA-C22.2 No. 601-1 / UL 60601-1 Storage/Transportation -22°F to +158°F (-30°C to +70°C) Degree of Protection Type BF-Applied Part Device temperature will not exceed 41°C as measured Enclosure Degree of Ingress Protection IP33 during a controlled environment test.

  • Page 14: Testing Summary

    Equipment Response Time Testing Summary accuracy and low perfusion testing were conducted by Nonin Medical, Inc., as described below: Reference 4 Beat Average Accuracy Testing accuracy testing is conducted during induced hypoxia studies on healthy, non-smoking, light- to dark- skinned subjects during motion and no-motion conditions in an independent research laboratory. The measured...

  • Page 15: Warranty

    This warranty excludes cost of delivery to and from Nonin. Nonin reserves the right to charge a fee for a warranty repair request on any GO LED Achieve found to be within specifications.
  • Page 16 Please take a moment to find and record the 9-digit serial number found on the back of your GO LED Achieve. You’ll need this number if you have to contact Nonin with technical service issues or if you have any questions regarding the use or performance of your pulse oximeter. Nonin’s technical service department can be reached at (877) 577-2635.
