- Page 1 MODEL 9571 User Guide...
-
Page 2: Table Of Contents
Table of Contents Introduction.....................1 Care.and.Maintenance...................15 Contents.of.Package..................1 Specifications....................20 Symbols......................2 Equipment.Response.Time................23 Intended.Use....................4 Testing.Summary...................24 Installing.the.Battery..................8 .Accuracy.Testing................24 Applying.the.GO .LED Model.9571.to.Your.Finger.........10 Pulse.Rate.Motion.Testing...............24 Activating.the.Device.and.Verifying.Operation..........12 Low.Perfusion.Testing................24 Reading.Your.Results..................13 Warranty......................25... -
Page 3: Introduction

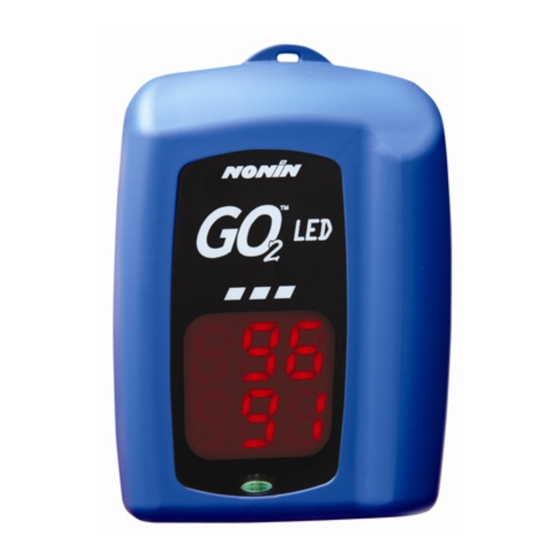

Introduction Symbols Thank you for buying the GO LED Model 9571 Fingertip Pulse Oximeter. This small, por- The.following.symbols.are.associated.with.your.GO LED Model.9571.. table device will give you important information about your oxygen saturation (the amount Symbol Definition of Symbol of oxygen in your blood) and pulse rate at your fingertip! The Model 9571 is easy to use and needs no routine maintenance except battery replacement. - Page 4 Battery Intended Use GO 2 LED Model 9571 is intended to measure blood oxygen saturation (%SpO ) (the Indicates separate collection for electrical and electronic equipment (WEEE). amount of oxygen in your blood) and pulse rate of both adults and children. It is de- signed for fingers (not the thumb) between 0.3 and 1.0 inch (0.8 –...
- Page 5 Cautions - low hemoglobin; • Do not use the GO LED as the only basis for making medical decisions. It is intended - arterial catheters; only to be used as additional information that you can give to your licensed - nail polish, and/or artificial nails; and health care professional.
- Page 6 (as shown inside of the battery compartment). • Follow local disposal and recycling laws for the GO LED and its components, including the battery. • The GO LED is a precision electronic instrument and must be repaired by Nonin Technical Service.
- Page 7 3. Carefully reposition the battery door. NOTE: Do not force it into place; it fits only Applying the GO LED Model 9571 to Your Finger when positioned correctly. Hold the GO LED with the display facing toward you; slide your finger into the opening at the bottom of the device, as shown below, until the fingertip touches the built-in stop guide.
- Page 8 NOTE: Correct positioning of the device on your finger is critical for accurate Activating the Device and Verifying Operation measurements. While on the finger, do not press the GO LED against any surface and The GO LED automatically turns on when a finger is inserted. When a finger is inserted, do not squeeze or hold it together.
- Page 9 Reading Your Results ous green-colored pulse quality before relying on the displayed values. It is common for the displayed values to fluctuate slightly over a period of several seconds. If the pulse quality When you put your finger in the GO LED, you’ll notice an LED display come on.
-
Page 10: Care.and.maintenance
Caution: Do not place the GO LED in liquid or clean it with agents containing ammo- yellow if the device is on nium chloride, isopropyl alcohol, or products that are not listed in this User’s Guide. If.the.problem.persists.contact. the finger). Nonin.Technical.Service. - Page 11 Troubleshooting Troubleshooting Problems Possible Cause Possible Solutions Problems Possible Cause Possible Solutions Reposition.finger.to.activate. Missing segments Faulty display. Contact.Nonin.Technical. the.device. on LED display. Service. Verify.battery.is.correctly. inserted..Note:.If.battery.is. Try.the.following:. installed.backwards,.the.unit.will.not. function. . 1..Reposition.finger. Display blank Nothing appears on Dead.battery..Replace.battery. . 2..Warm.finger.by.rubbing. Low pulse quality No readings the display.
-
Page 12: Specifications
Use the lanyard with caution. Infrared 910 nanometers @ 1.2mW For more information about Nonin parts and accessories, contact your distributor, or Max Average contact Nonin at (877) 577-2635 (USA and Canada) or (763) 553-9968. - Page 13 Temperature (Operating) +41°F to +104°F (5°C to +40°C) Classifications per IEC 60601-1 / CAN/CSA-C22.2 No. 601.1 / UL 60601-1 Storage/Transportation -22°F to +158°F (-30°C to +70°C) Degree of Protection Type BF-Applied Part Device temperature will not exceed 41°C as measured Enclosure Degree of Ingress Protection IP33 during a controlled environment test.
-
Page 14: Equipment.response.time
Equipment Response Time Testing Summary accuracy and low perfusion testing were conducted by Nonin Medical, Inc., as described below: Reference 4 Beat Average .Accuracy.Testing accuracy testing is conducted during induced hypoxia studies on healthy, non-smoking, light- to dark- skinned subjects during motion and no-motion conditions in an independent research laboratory. The measured... -
Page 15: Warranty
Model 9571 exclusive of the battery. Nonin will repair or replace any GO LED Model 9571 Plymouth, MN 55441-5443 found to be defective in accordance with this warranty, free of charge, for which Nonin has been notified by the purchaser by serial number that there is a defect, provided notification (763) 553-9968 occurs within the applicable warranty period. - Page 16 Please take a moment to find and record the 9-digit serial number found on the back of your GO LED Model 9571. You’ll need this number if you have to contact Nonin with technical service issues or if you have any questions regarding the use or performance of your pulse oximeter. Nonin’s technical service department can be reached at (877) 577-2635.
