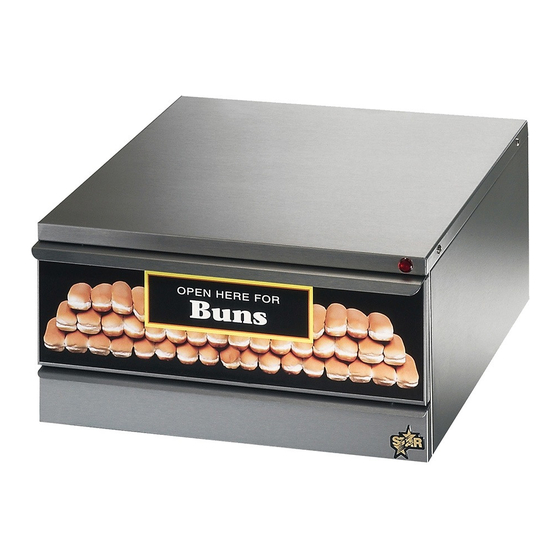

  • Page 1 DRAWER ROLL/ BUN WARMER MODEL SST-20 SST-30 SST-50, SST-50A, SST-50ND SST-75 Installation and Operation Instructions 2M-Z3235 Rev. K 1/12/2015 IL1889 SST-75 French: RÉCHAUD À TIROIR POUR PETITS PAINS Spanish: CAJON CALENTADOR PARA PANECILLOS Y PANES...

  • Page 2: Safety Symbol

    RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

  • Page 3: General Installation Data

    GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the CAUTION general public in food service locations.
  • Page 4 CLEANING To remove the drawer for cleaning: 1. Pull the drawer out until it stops. 2. Remove the interior pan. 3. Grasp the drawer assembly with both hands. 4. Lift the drawer in an upward direction while slowly pulling out. This will disengage the drawer from the drawer stops.

  • Page 5: Branchements Électriques

    DONNÉES D'INSTALLATION GÉNÉRALES Cet équipement est conçu et vendu pour un usage commercial uniquement par du personnel qualifié et expérimenté dans son fonctionnement et n’est pas vendu pour l’usage des consommateurs à CAUTION l’intérieur et autour de la maison, ni pour l’utilisation directe par les enfants ou le grand public dans des lieux de services alimentaires.

  • Page 6: Entretien Et Réparations

    NETTOYAGE Pour retirer le tiroir pour le nettoyage : 1. Tirer le tiroir jusqu'à la butée. 2. Retirer le plateau intérieur. 3. Saisir l'ensemble du tiroir avec les deux mains. 4. Soulever le tiroir vers le haut tout en tirant lentement. Cela dégagera le tiroir de ses butées.
  • Page 7 (water jet) para limpiarlo. Mantenimiento y Reparaciones Contacte la fábrica, al agente de servicio autorizado o a la compañía local de servicio autorizado cuando el equipo requiera de servicio o mantenimiento. Los cables de reemplazo deben ser comprados a Star Manufacturing International, Inc.
  • Page 8 PART NO. 2M-Z11979 SST-75 ---- ---- WIRE DIAGRAM SST DATE 2008-12-05 TITLE STAR MFG. INTERNATIONAL, INC. LIMITS UNLESS OTHERWISE NOTED 10 SUNNEN DRIVE ST. LOUIS, MO 63143 FRACTIONS 1/64 DECIMALS .005 CHANGES LTR DATE CHANGE ROTATED SWITCH 90 DEGREES 10/30/13 ADDED 1A,2A,4B,5B &...
  • Page 9 MODEL NO. PART NO. SK1635 SST20,30,50 ---- ---- WIRE DIAGRAM SST DATE 2-2-99 TITLE STAR MFG. INTERNATIONAL, INC. LIMITS UNLESS OTHERWISE NOTED 10 SUNNEN DRIVE ST. LOUIS, MO 63143 FRACTIONS 1/64 DECIMALS .005 CHANGES LTR DATE CHANGE CORRECTED WIRE 7-7-99 NOTATIONS...

  • Page 10: Limited Equipment Warranty

    LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
  • Page 11 SST-5O LOOKS SLIGHTLY DIFFERENT STAR MANUFACTURING INTERNATIONAL, INC. MODELS SST-20, SST-30, SST-50 SK1632 REV D 2/03/15...

  • Page 12: Parts List

    PARTS LIST February 03, 2015, Rev. K SST-20 120V/230CE Drawer Roll / Bun Warmer SST-20 120V/230CE Drawer Roll / Bun Warmer Fig No Part No Description Application Fig No Part No Description Application A4-Z2212 2J-Z2329 PILOT LIGHT 2J-Z3157 PILOT LIGHT...
  • Page 13 NUT 10-24 NYLOK 2K-Z2895 BUSHING SPLIT IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 14 THERMOSTAT A4-BW5037 DOOR ASSEMBLY COMP IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
  • Page 15 Nameplate MODEL: SST-75 STAR MANUFACTURING INTERNATIONAL, INC. SK2441 Rev. - 10/02/09...
  • Page 16 IEC CORD INLET HOT 230CE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
