Summary of Contents for Star 4RW

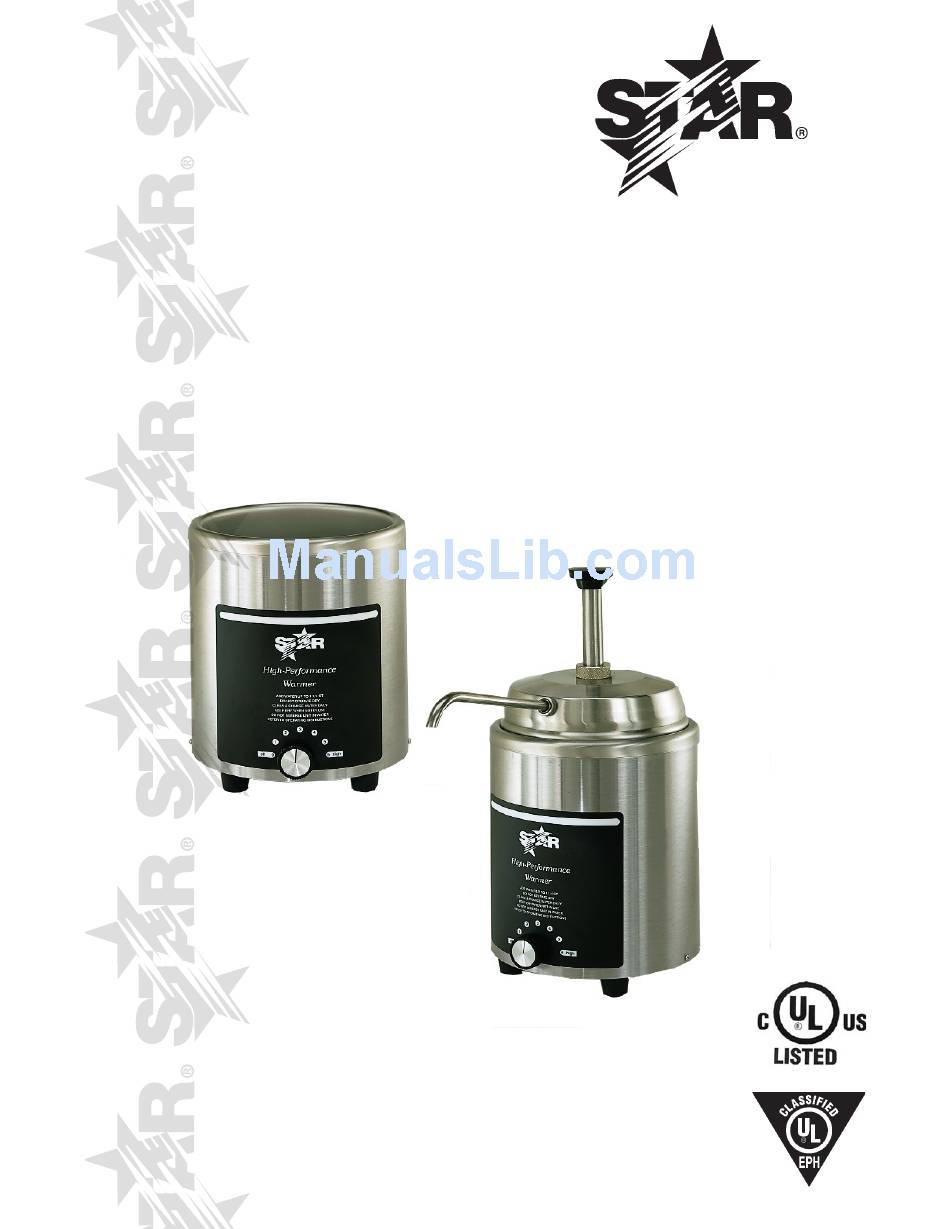

- Page 1 ROUND WARMERS MODEL 4 QUART 7 QUART 11 QUART Installation and Operation Instructions 2M-Y9795 Rev. H 12/2/05 4RW-P...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
SPECIFICATIONS MODEL 4RW 120V Capacity: 4 quarts Electrical: 0V; 60 cycle; single phase; 600W.; 5A. Dimensions: 8 /4" D x 9 7/8" H Net Weight: 6 lbs. MODEL 4RW-P 120V Capacity: / quarts Electrical: 0V; 60 cycle; single phase; 600W.; 5A. Dimensions: 4 5/8" D x 8 /4" W x 6 /8" H Net Weight: 7.5 lbs. MODEL 4RW 240VE Capacity: 4 quarts Electrical: 40V; 50/60 cycle; single phase; 600W.; .5A. Dimensions: 8 /4" D x 9 7/8" H Net Weight: 6 lbs. MODEL 4RW-P 240VE Capacity: / quarts Electrical: 40V; 50/60 cycle; single phase; 600W.; .5A. - Page 4 MODEL 7RW 240VE Capacity: 7 quarts Electrical: 40V; 50/60 cycle; single phase; 00W.; 4.6A. Dimensions: 9 /" D x 9 /8" H Net Weight: 8 lbs. MODEL 11RW 120V Capacity: quarts Electrical: 0V; 60 cycle; single phase; 600W.; .A. Dimensions: 7/8" D x 9 /8" H Net Weight: 0 lbs. MODEL 11RW-11H 120V Capacity: quarts Electrical: 0V; 60 cycle; single phase; 600W.; .A. Dimensions: 7/8" D x /8" H Net Weight: lbs. (Includes hinged lid/bowl assembly) MODEL 11RW 120V CSA Capacity: quarts Electrical: 0V; 60 cycle; single phase; 600W.; .A.
-
Page 5: Installation
CAUTION DO NOT CONNECT TO DIRECT CURRENT (DC). GENERAL OPERATING INSTRUCTIONS 4RW, 4RW-P, 7RW and 11RW These warmers are designed to use stainless steel serving bowls purchased as an option. Follow these steps for setting up the warmer: . Before using warmer clean the warmer bowl and any accessories furnished with warmer or purchased as an option.. - Page 6 CLEANING INSTRUCTIONS - IMPORTANT - Stainless steel may corrode if not cleaned properly. Clean and dry the heated bowl inside the warmer every night. Use a soft cloth and mild soap to keep exterior surfaces bright and shining. To keep the inside surface of the bowl clean, use S.O.S. or Brillo pads as often as necessary. Do not use detergents, strong abrasives or metal scouring pads on exterior surface of warmer. CAUTION DO NOT IMMERSE IN WATER AT ANY TIME. PUMP CLEANING Before using and at least daily, disassemble the pump and wash all parts. To disassemble pump: . Unscrew nut-cylinder. Pull pump-plunger from pump chamber.
- Page 7 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
-
Page 10: Pump Models
This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. 4 QT., 7QT. & 11QT. 120V STAR MANUFACTURING INTERNATIONAL, INC. MODEL 4RW, 4RW-P, 4RW-L, 4RW-4H 7RW, 7RW-7H, 11RW, 11RW-P, 11RW-11H SK1421 REV. D 01/09/1997... -
Page 11: Parts List
L-Y768 COVER N-Y9848 PLATE-PUMP RW IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 12 PUMP - COMPLETE 4RW-P N-6007 PUMP - COMPLETE RW IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
