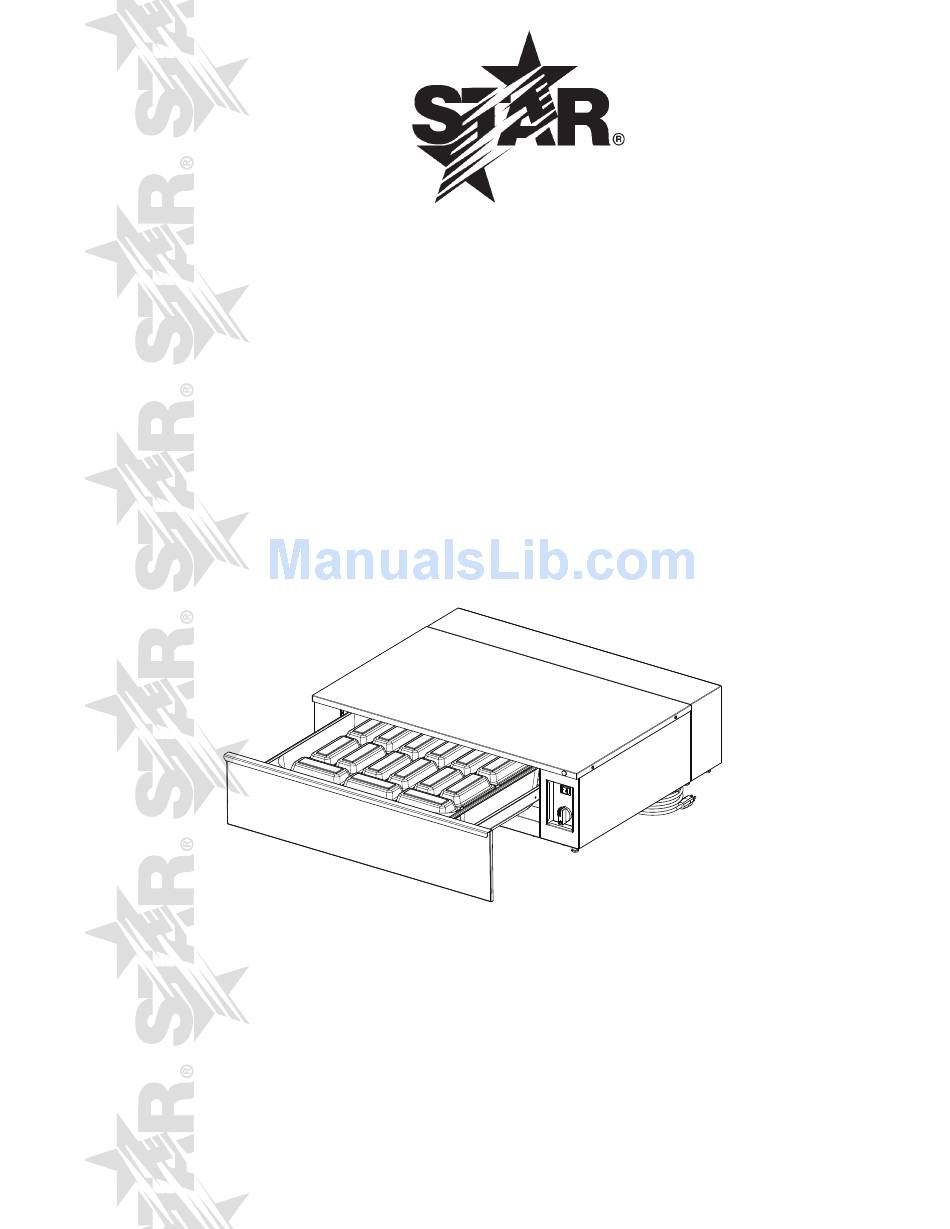

- Page 1 DRAWER ROLL/ BUN WARMER MODEL SST-20 SST-30 SST-50 SST-75 Installation and Operation Instructions 2M-Z3235 Rev. G 12/15/2010 IL1889 SST-75...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the CAUTION general public in food service locations. - Page 4 CLEANING To remove the drawer for cleaning: . Pull the drawer out until it stops. . Remove the interior pan. . Grasp the drawer assembly with both hands. . Lift the drawer in an upward direction while slowly pulling out. This will disengage the drawer from the drawer stops.
- Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 7 SST-5O LOOKS SLIGHTLY DIFFERENT STAR MANUFACTURING INTERNATIONAL, INC. MODELS SST-20, SST-30, SST-50 SK1632 REV C 5/23/13...
-
Page 8: Parts List
PARTS LIST October , 009, Rev. G SST-20 120V/230CE Drawer Roll / Bun Warmer SST-20 120V/230CE Drawer Roll / Bun Warmer Fig No Part No Description Application Fig No Part No Description Application A4-Z2212 2J-Z2329 PILOT LIGHT 2J-Z3157 PILOT LIGHT... - Page 9 NUT 10-24 NYLOK 2K-Z2895 BUSHING SPLIT IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 10 2E-Z1858 SWITCH ON/OFF 2T-Z2236 THERMOSTAT IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 11 Nameplate MODEL: SST-75 STAR MANUFACTURING INTERNATIONAL, INC. SK2441 Rev. - 10/02/09...
