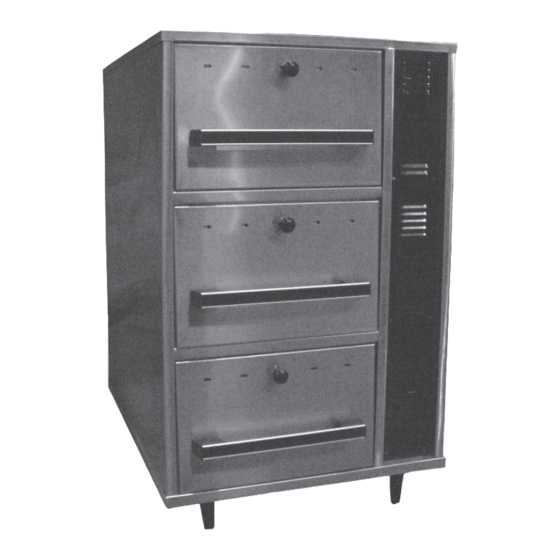

Star SDW1 Installation And Operation Instructions Manual
Heavy duty drawer style food warmers
Hide thumbs
Also See for SDW1:
- Specification sheet (2 pages) ,
- Installation and operation instructions manual (20 pages)
Related Manuals for Star SDW1
Summary of Contents for Star SDW1

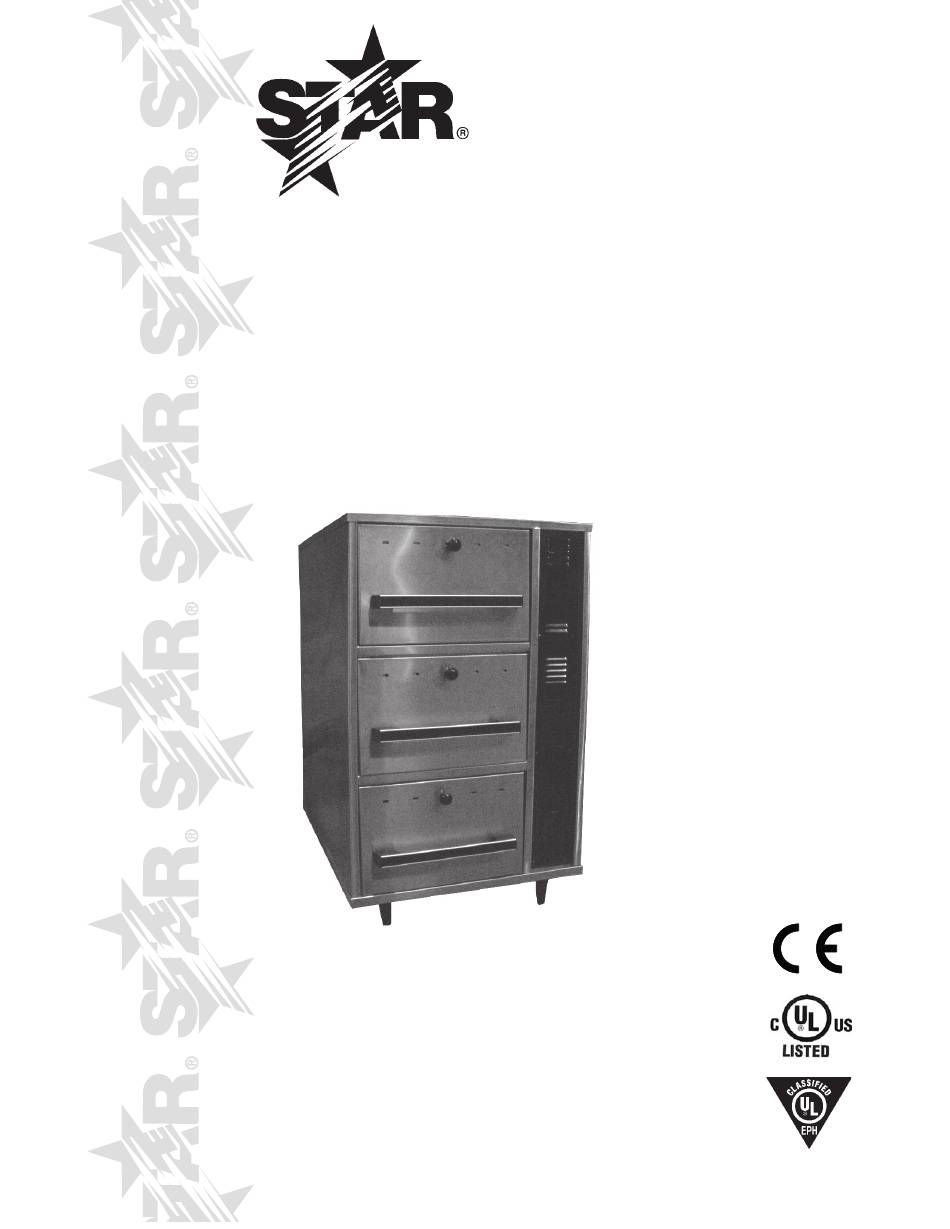

- Page 1 HEAVY DUTY DRAWER STYLE FOOD WARMERS MODELS SDW1 SDW2 SDW3 SDW1N SDW2N SDW3N SDW1W SDW2C SDW3C SDW2W SDW2NC SDW3NC Installation and Operation Instructions 2M-Z4061 Rev. C 9/27/2011 SDW3NC...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. - Page 3 SPECIFICATIONS Dimensions Model Voltage Phase Watts Plug Length Depth Height 120V NEMA 5-15P 29 1/4” 21 13/16” SDW1, SDW1W (74.3cm) (55.4cm) 220/240V 50/60 CEE 7/7 11 1/4” (28.58cm) 120V NEMA 5-15P 21 1/4” 29 13/16” SDW1N 403/475 (53.98cm) (75.72cm) 220/240V...
-
Page 4: Operation
CLEANING . Disconnect the unit from the electrical power source before cleaning. . Allow the unit to cool thoroughly before cleaning. Avoid contact with the heated parts of the unit. . Clean the unit daily. Use a soft cloth and mild detergent to keep the stainless steel panels free of scratches. - Page 5 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 8 MODEL SDW3 SHOWN DRAWER WARMER SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - SDW1, SDW2, SDW3 SK1840 REV. B 12/12/2000...
-
Page 9: Parts List
PARTS LIST September 7, 0, Rev. C Model: SDW1, SDW2, SDW3, SDW1W, SDW2W, Drawer Warmer Fig No Part No Description Application E9-Z4031 TOP PANEL E9-Z4030 SDW1 E9-Z4089 BACK PANEL SDW2 E9-Z4097 SDW2 E9-Z4027 ADAPTER PLATE 120V 2E-Y9227 INLET 230V 2K-Y2967... - Page 10 PARTS LIST September 7, 0, Rev. C Model: SDW1, SDW2, SDW3, SDW1W, SDW2W, Drawer Warmer Fig No Part No Description Application 2E-Z4062 120V CONTROL W/ SENSOR 2E-Z4153 230V E9-Z4016 1/2/3 ELEMENT BRACKET SDW1 / SDW2 / SDW3 E9-Z4026 1/2/3 REAR LINER...
- Page 11 DRAWER WARMER MODEL SDW3N SHOWN SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - SDW1N, SDW2N, SDW3N SK1838 REV. A 4/17/2001...
- Page 12 SDW1N / SDW2N / SDW3N IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1 INCLUDE MODEL AND SERIAL NUMBER OF 2 Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings Inc. Company...
- Page 13 SDW1N / SDW2N / SDW3N IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 2 INCLUDE MODEL AND SERIAL NUMBER OF 2 Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings Inc. Company...
- Page 14 MODEL SDW3NC SHOWN DRAWER WARMER SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - SDW2NC, SDW3NC SK1839 REV. A 4/17/01...
- Page 15 E9-DW0032 DRAWER ASSY COMPLETE SDW2NC / SDW3NC E9-Z4079 SDW2NC INSULATION SIDE E9-Z4107 SDW3NC E9-Z4080 SDW2NC INSULATION REAR E9-Z4108 SDW3NC E9-Z3981 INSULATION TOP E9-Z3977 INSULATION BOTTOM SDW2NC / SDW3NC E9-Z3980 INSULATION DRAWER FRONT SDW2NC / SDW3NC Star International Holdings Inc. Company...
- Page 16 MODEL SDW3C SHOWN DRAWER WARMER SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - SDW2C, SDW3C SK1841 REV. A 4/17/01...
- Page 17 DRAWER ASSEMBLY COMPLETE SDW2C / SDW3C E9-Z4092 INSULATION SIDE SDW2C E9-Z4100 INSULATION SIDE SDW3C E9-Z4093 INSULATION REAR SDW2C E9-Z4101 INSULATION REAR SDW3C E9-Z4012 INSULATION TOP/BOTTOM SDW2C / SDW3C E9-Z4015 INSULATION DRAWER FRONT SDW2C / SDW3C Star International Holdings Inc. Company...
- Page 20 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
