- Page 1 3 1/2 QUART WARMERS MODEL 3W SERIES Installation and Operation Instructions 2M-Y8316 Rev. L 6/30/2008 3WLA-B...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications

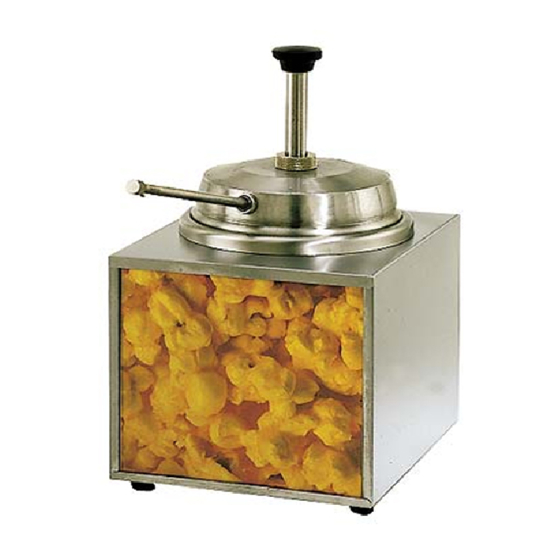

SPECIFICATIONS: MODEL 3WSA-HS 120V - STAINLESS STEEL WITH PUMP and HEATED SPOUT Capacity: 3-1/2 quarts Electrical: 120V; 50/60 cycle; single phase; 515wt; 4.3a. Dimensions: 10-1/2" D x 9" W x 15-1/2" H Net Weight: 11 lbs. MODEL 3WSA-P 120V - STAINLESS STEEL WITH PUMP Capacity: 3-1/2 quarts Electrical: 120V;... - Page 4 MODEL 3WSA-HS 240V - STAINLESS STEEL WITH PUMP and HEATED SPOUT Capacity: 3-1/2 quarts Electrical: 240V; 50/60 cycle; single phase; 473wt;2.1a. Dimensions: 10-1/2" D x 9" W x 15-1/2" H Net Weight: 11 lbs. MODEL 3WSA-P 240V - STAINLESS STEEL WITH PUMP Capacity: 3-1/2 quarts Electrical: 240V;...
- Page 5 MODEL 3WSA-4H 240V - STAINLESS STEEL WITH INSET and COVER Capacity: 4-1/8 quarts Electrical: 240V; 50/60 cycle; single phase; 460wt; 2a. Dimensions: 11" D x 9" W x 11 3/4" H Net Weight: 11 lbs. MODEL 3WLA-4H 240V - LIGHTED WITH INSET and COVER and 6* SIGNS Capacity: 4-1/8 quarts Electrical: 240V;...
-
Page 6: Installation
CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... -
Page 7: Priming Pump
CAUTION DO NOT TOUCH THE HEATED SPOUT WITHOUT HEAT INSULATING MITTENS OR OTHER MEANS OF BURN PREVENTION. DO NOT OPERATE UNIT WITHOUT WATER. CHECK WATER LEVEL FREQUENTLY. CLEANING INSTRUCTIONS IMPORTANT Stainless steel may corrode if not cleaned properly. Clean and dry the heated bowl inside the warmer every night. Use a soft cloth and mild soap to keep exterior surfaces bright and shining. -
Page 8: Light Bulb Replacement
SIGN REPLACEMENT Unplug cord from the receptacle. 2. Push front plastic panel up using a plastic pin or very small screwdriver. 3. Pull forward on the bottom edge of the plastic panel and remove it. 4. Replace the sign. 5. Place the front plastic panel back into its original position. LIGHT BULB REPLACEMENT Unplug cord from the receptacle. - Page 9 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 12 4 QT (SSB-4H) OPTIONAL NON-PUMP MODELS PUMP MODELS LIGHTED MODELS PUMP ACCESSORIES MODELS WITH RING & COVER * = FOR INSETS & LADLES CONTACT DEALER STAR MANUFACTURING INTERNATIONAL, INC. MODEL 3WLA-3WSA 3 1/2QT., 4 QT. 120V/240V SK1165 REV. I 08-22-05...
-
Page 13: Parts List
2I-Z0730 PUMP CHAMBER N2-Y9685 PIN-”U” IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 14 H.L. THERMOSTAT (ON 240V MODELS ONLY) N2-30404 PUMP ASSEMBLY COMPLETE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 16 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
