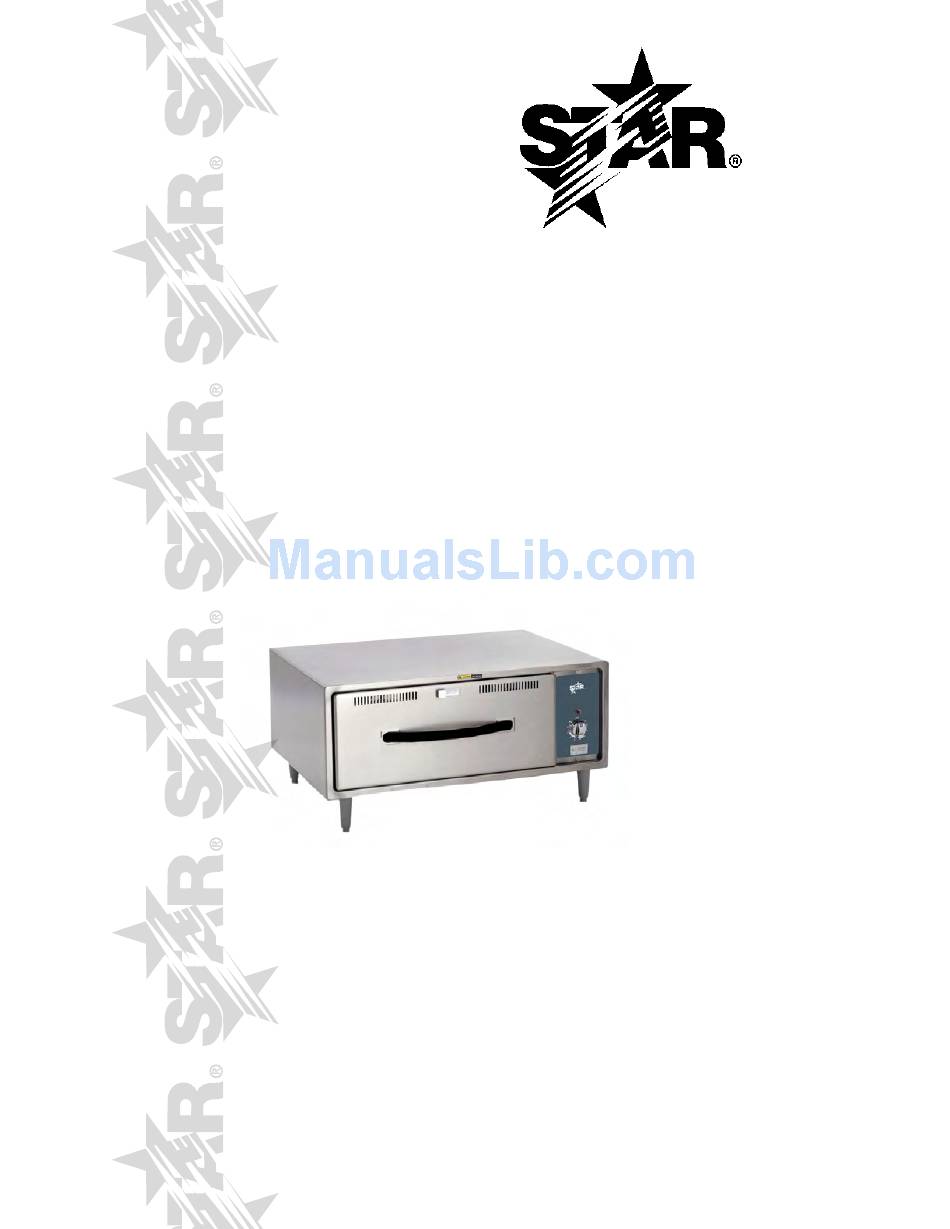

Page 1: With Thermostatic Controls
DRAWER WARMERS with thermostatic controls MODEL DW1, DWN1 DW2, DWN2 DW3, DWN3 Installation and Operation Instructions 2M-Z19504 Rev. - 1/02/15 Model DW1... -
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
PARTS & SERVICE CUSTOMER SERVICE DATA SPECIFICATIONS VOLTS MODELS WATTS AMPS POWER CORD 50/60 Hz 1ø 120 VAC 450 W NEMA-5-15P DW1, DWN1 208/240 VAC 338/450 W 1.6/1.9 NEMA 6-15P 120 VAC 900 W NEMA-5-15P DW2, DWN2 208/240 VAC 676/900 W 3.3/3.8... -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS HUMITROL RACK (Optional) DRAWER INSERT PAN AIR VENT CONTROL HEATING INDICATOR TEMPERATURE CONTROL POWER CORD ADJUSTABLE ROLLER CATCH DRAWER GASKET DRAWER STOP DRAWER ROLLER DRAWER SLIDE DRAWER DRAWER SLIDE CATCH DRAWER HEATING ROLLERS ELEMENT IL2941... -
Page 5: General Information
GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... - Page 6 INSTALLATION continued Setup MOUNTS INTO THREADED Setup the appliance only on a firm, level, non-combustible HOLES IN surface. Verify local codes for requirements. Concrete, tile, WARMER FRAME terrazzo or metal surfaces are recommended. Metal over combustible material may not meet code for non-combustible surfaces.
-
Page 7: Operation
Moist heat with pans: This Star warmer is designed to accommodate any combination of standard-size, steam table pans. Place a small amount of water in drawer pan. Place the steam table pans in the drawer pan. - Page 8 OPERATION continued Operation Determine the type of food to be warmed. Refer to the chart on page 7 to determine the type of heat required. Set the air vent control for the type of heat, and rotate the thermostat knob to the temperature setting desired.
- Page 9 CLEANING PRECAUTIONS: Turn control knob to OFF. Allow drawers to cool before proceeding. Remove drawer pans and Humitrol racks. FREQUENCY: Minimum - Daily TOOLS: Warm water and mild detergent Clean cloth or sponge Remove drawers from warmer: Pull warmer drawer out until fully extended. Slide finger along left and right slide rail until you reach the latches (located at the front end of the cabinet-mounted rails) Press down on both left and right latch.
-
Page 10: Troubleshooting
Plug warmer into appropriate receptacle No lights or heat Circuit breaker off or tripped Reset circuit breaker (all drawers) Contact an Authorized Star Service Internal damage Agency for repairs. Temperature control not set Set for desired temperature. No heat (one drawer) -
Page 11: Maintenance
MAINTENANCE ADJUSTMENTS AND LUBRICATION PRECAUTIONS: Turn control knob to OFF. Unplug warmer Allow drawers to cool before proceeding. Remove drawer pans and Humitrol racks FREQUENCY: Minimum - monthly. Every 2 weeks recommended. TOOLS: Screwdrivers, Phillips (+) and flat blade (-). Nut drivers, 3/8”... -
Page 12: Wiring Diagram
WIRING DIAGRAM... - Page 13 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 14 EXPLODED VIEW: DW1, DW2, DW3 DRAWER ASSEMBLY - COMMON TO ALL HD VERSIONS CAVITY and CABINET INERIOR - COMMON TO ALL HD VERSIONS IL2939...
-
Page 15: Parts List
PARTS LIST: DW1, DW2, DW3 PARTS LIST January 02, 2015, Rev. - DW1, DW2, DW3, DRAWER WARMER Fig No Part No. Description WS-20624 RACK HUMITROL (OPTIONAL) C8-46840 PAN INSERT DRAWER PS-DW0051 DRAWER ASSY KIT 2R-Z19493 HANDLE DRAWER SRW320 WS-51796 KNOB SQUARE ROLL WARMER VENT... - Page 16 EXPLODED VIEW: DWN1, DWN2, DWN3 DRAWER ASSEMBLY - COMMON TO ALL “NARROW” VERSION RWN-SERIES DRAWERS CAVITY and CABINET INTERIOR - COMMON TO ALL “NARROW” VERSION IL2093b...
- Page 17 PARTS LIST: DWN1, DWN2, DWN3 PARTS LIST January 02, 2015, Rev. - DWN1, DWN2, DWN3, DRAWER WARMER Fig No Part No. Description WS-20624 RACK HUMITROL (OPTIONAL) C8-49252 INSERT DRAWER NARROW PS-DW0052 DRAWER ASSY, NARROW 2R-Z19493 HANDLE DRAWER WARMER WS-51796 KNOB SQUARE ROLL WARMER VENT C8-49251 SLIDE VENT ASSY NARROW 2C-35530...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
