- Page 1 DOUBLE SPECIALTY WARMERS MODEL 3DWSA SERIES 3DWLA SERIES Installation and Operation Instructions 2M-Y8865 Rev. H 4/30/08 3DWLA...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Product Identification

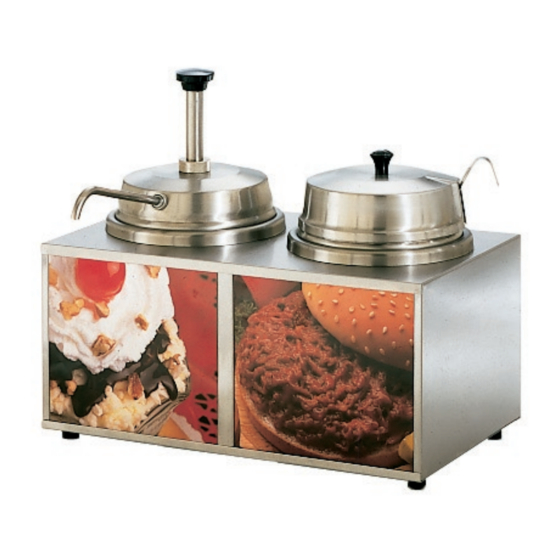

PRODUCT IDENTIFICATION Star Mfg. International Double Warmers, Models: 3DWSA, 3DWLA, 3DWLA-HS SPECIFICATIONS: MODEL 3DWSA-4H 120V - STAINLESS STEEL WITH INSETS and COVERS Capacity: 4-1/8 quarts each inset Electrical: 120V; 50/60 cycle; single phase; 1000wt; 8.4a. Dimensions: 11-1/2" D x 18" W x 12-1/2" H Net Weight: 22 lbs. - Page 4 MODEL 3DWLA-R 120V - LIGHTED WITH INSETS and COVERS Capacity: 4-1/8 quarts each inset Electrical: 120V; 50/60 cycle; single phase; 1060wt; 8.8a. Dimensions: 11-1/2" D x 18" W x 12-1/2" H Net Weight: 22 lbs. MODEL 3DWSA-PHS 120V - STAINLESS STEEL WITH 1 INSET and COVER, and HEATED SPOUT and PUMP Capacity: 4-1/8 quarts inset;...
- Page 5 MODEL 3DWLA4H240VE - LIGHTED WITH INSETS and COVERS and 6** SIGNS Capacity: 4-1/8 quarts each inset Electrical: 240V; 50/60 cycle; single phase; 1060wt; 4.4a. Dimensions: 11-1/2" D x 18" W x 12-1/2" H Net Weight: 22 lbs. MODEL 3DWLA-P240VE - LIGHTED WITH 1 INSET and COVER and 1 PUMP, and 6** SIGNS Capacity: 4-1/8 quarts each inset;...
-
Page 6: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the CAUTION general public in food service locations. -
Page 7: Priming Pump
CLEANING INSTRUCTIONS IMPORTANT Stainless steel may corrode if not cleaned properly. Clean and dry the heated bowl inside the warmer every night. Use a soft cloth and mild soap to keep exterior surfaces bright and shining. To keep the inside surface of the bowl clean, use S.O.S. or Brillo pads as often as necessary. -
Page 8: Limited Equipment Warranty
LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. - Page 10 (OPTIONAL) NON-PUMP MODELS = N2-62000 PUMP MODELS LIGHTED MODELS MODELS WITH RING & COVER MODEL 3DWLA-3DWSA STAR MANUFACTURING INTERNATIONAL, INC. 3 1/2QT., 4 1/8QT. 120V/240V SK1270 REV. E 8-13-13...
-
Page 11: Parts List
2I-Z0730 PUMP CHAMBER 2A-Y9685 PIN-"U" IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 12 N2-62000 BASIC ASSY PUMP PARTS IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
