HandHeld ALGIZ 7 Quick Start Manual
Vehicle docking
Hide thumbs
Also See for ALGIZ 7:
- Quick start manual (4 pages) ,
- Quick start manual (4 pages) ,
- Quick start manual (4 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HandHeld ALGIZ 7
Summary of Contents for HandHeld ALGIZ 7

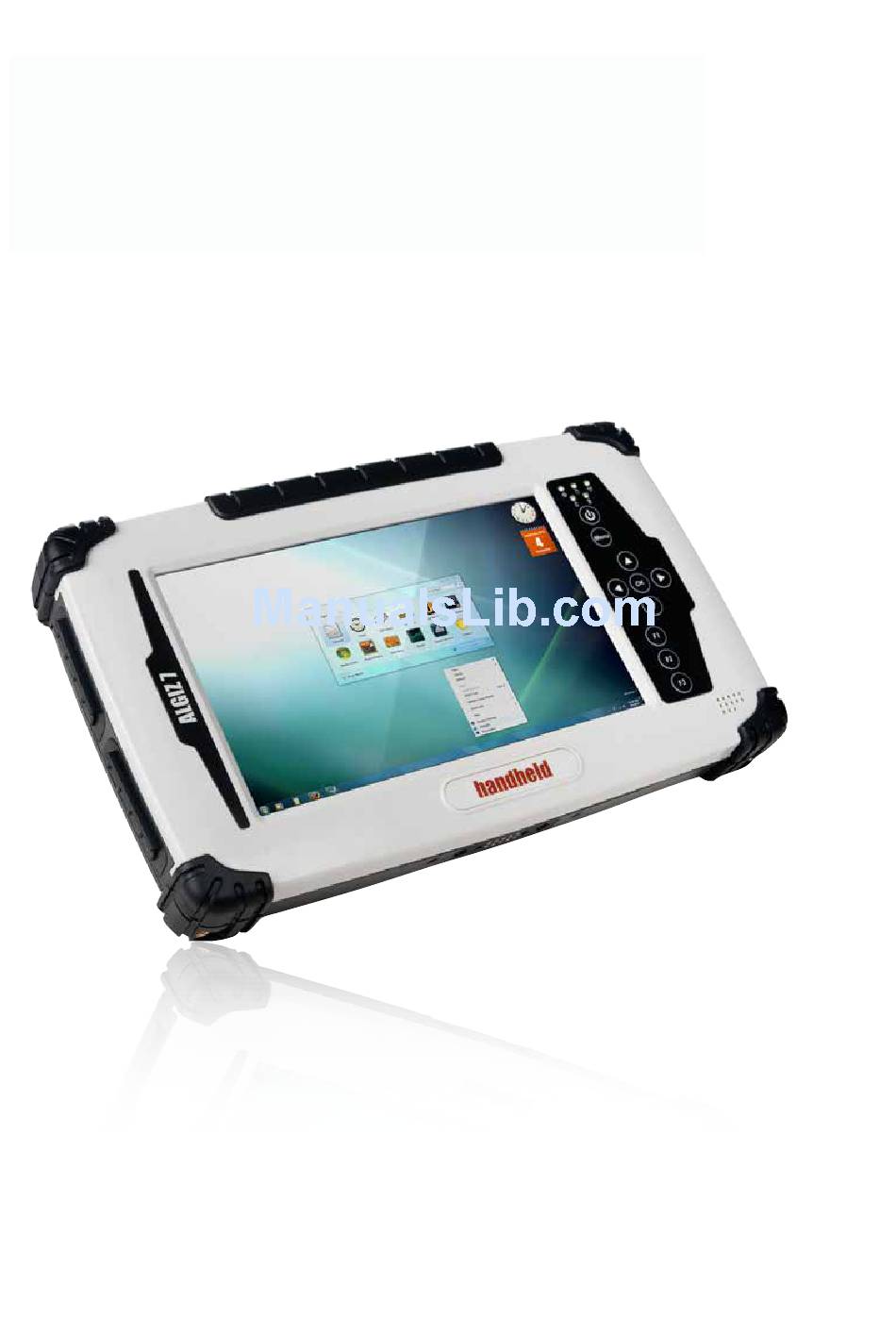

- Page 1 ALGIZ 7 Quick Start Guide handheld...
-
Page 2: Screen Calibration
Caution Please fully charge the batteries in advance of operating Algiz 7 for the first time. New battery packs should be fully charged before Algiz 7 is disconnected from the external power source. It takes approximately 3 hours to fully charge batteries from empty. - Page 3 Function Keys 1. Power Button 2. Menu 3. Up/Down/Left/ Right/OK Button 4. F1-F3 Ref. Components Description Power Button* Hold down for 4 seconds to turn the computer on Menu button to control: brightness, volume, battery, power Menu to modules, and system information Up/Down/Left/ Right/OK Button Control of up, down, left, right and Enter functions F1 –...
- Page 4 Microphone Audio Out Headphone Ethernet (RJ45) 10/100/1000-based network USB 2.0 Port DC Power Jack USB 2.0 Port RS232 Accepts external connections using the interface of RS232 (D-sub 9 pins) Please go to www.handheldgroup.com/manuals to download the full manual. handheld www.handheldgroup.com...
- Page 5 ALGIZ 7 Vehicle Docking Quick Guide...
- Page 6 Handheld Group warrants that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, Handheld Group will at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period of one year, with transportation charges prepaid.
- Page 7 ALGIZ 7 Vehicle Docking Quick Guide Customer Service We provide a service guide for any problems; see the following steps：First visit the website at http://www.handheldgroup.com to find the updated information about the product. Secondly, contact your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
- Page 8 UL-60950 and CAN/CSA C22.2 No. 601.1. Power Supply Announcement The Handheld Rugged Tablet PC Power Supplies are supported by a Power Adapter and Battery Pack, the power rating announcement and manufacturer information list are as below.
- Page 9 ALGIZ 7 Vehicle Docking Quick Guide (1) Please be aware that the power code of the adapter needs to be grounded. (2) Please notice the Power button needs to be pressed down for at least 4 seconds to go to power off or on.
-
Page 10: Table Of Contents
ALGIZ 7 Vehicle Docking Quick Guide Content CHAPTER 1 INSTALLATION .......................... 7 1.1 INTRODUCTION ........................8 1.2 INSTALLATION ........................9-10 CHAPTER 2 POWER AND I/O CONNECTOR SPECIFICATION ..............11 2.1 I/O SPECIFICATION ......................12 2.1.1 POWER INPUT ......................... 12 2.1.2 SERIAL COM PORTS ....................... 12 2.1.3 ETHERNET INTERFACE .................... -
Page 11: Chapter 1 Installation
ALGIZ 7 Vehicle Docking Quick Guide Chapter 1 Installation This Chapter introduces how to install the 7” Handheld Algiz 7 to the vehicle mount docking kit. -
Page 12: Introduction
The schematic diagram is shown below. If you experience difficulty installing the 7” Handheld Algiz 7 PC, seek the assistance of a... -
Page 13: Installation
ALGIZ 7 Vehicle Docking Quick Guide 1.2 Installation Install the Algiz 7 handheld tablet pc to the vehicle mount docking station： Put the female docking connector with the male docking pins on the vehicle mount docking station. Connect them and push the top of the tablet pc into the vehicle mount docking station. - Page 14 ALGIZ 7 Vehicle Docking Quick Guide 1.2 Installation To remove the Algiz 7 handheld tablet pc from the vehicle mount docking station: Press the unlock handle. Then push the top part of the tablet PC out from the vehicle mount docking station.
-
Page 15: Power And I/O Connector Specification
ALGIZ 7 Vehicle Docking Quick Guide Chapter 2 Power and I/O Connector Specification This Chapter describes the vehicle mount docking station connector types. -
Page 16: I/O Specification
Use only with approved cigarette power adaptors or AC/DC adapters. Use of other cigarette power plugs or AC/DC adapters may cause damages to the Vehicle docking or the Algiz 7. Do not use the cigarette power plug and the AC/DC adapter simultaneously. -
Page 17: Serial Com Ports
ALGIZ 7 Vehicle Docking Quick Guide 2.1.2 Serial COM ports Two RS-232 connectors that can be connected to other RS-232 devices. 2.1.3 Ethernet interface The Ethernet port provides one standard RJ-45 port. Two LEDs are built into the RJ-45 LAN connector showing the LAN connection status. -
Page 18: Power Specification
ALGIZ 7 Vehicle Docking Quick Guide 2.2 Power Specification The vehicle dock is equipped with two kinds of DC input choices. One is for a DC 9~36V input terminal block connector and another is for an AC/DC adaptor. Users can choose the appropriate connector to use, but do not connect the power source to both of these at... -
Page 19: Appendix - Docking System Diagram
ALGIZ 7 Vehicle Docking Quick Guide Appendix – Docking System Diagram Appendix A: Function Block Diagram... -
Page 20: Appendix B: Exploded Diagram
ALGIZ 7 Vehicle Docking Quick Guide Appendix B: Exploded Diagram The exploded diagram is shown as below. There are front and rear covers, PCB, docking connector, fan, etc. www.handheldgroup.com...
