Your 7444 Voice Terminal

The 7444 Voice Terminal is designed so that you can conveniently use the features of
the AT&T DEFINITY® Communications System Generic 2 and System 85. Familiarize
yourself with your telephone, shown in Figure 1 and explained below.
1
1 9
18
16
1 7
Starting with the handset and continuing clockwise:
1) Handset
2) Drop/Test button
3) Conference/Ring
button
4) Display
5) Transfer button
6) Hold button
7) Speakerphone/
headset adapter jack
(on back of telephone)
8) Line jack (on back
of telephone)
2 4
3 5
1 2
1 4 13 1 1
1 5

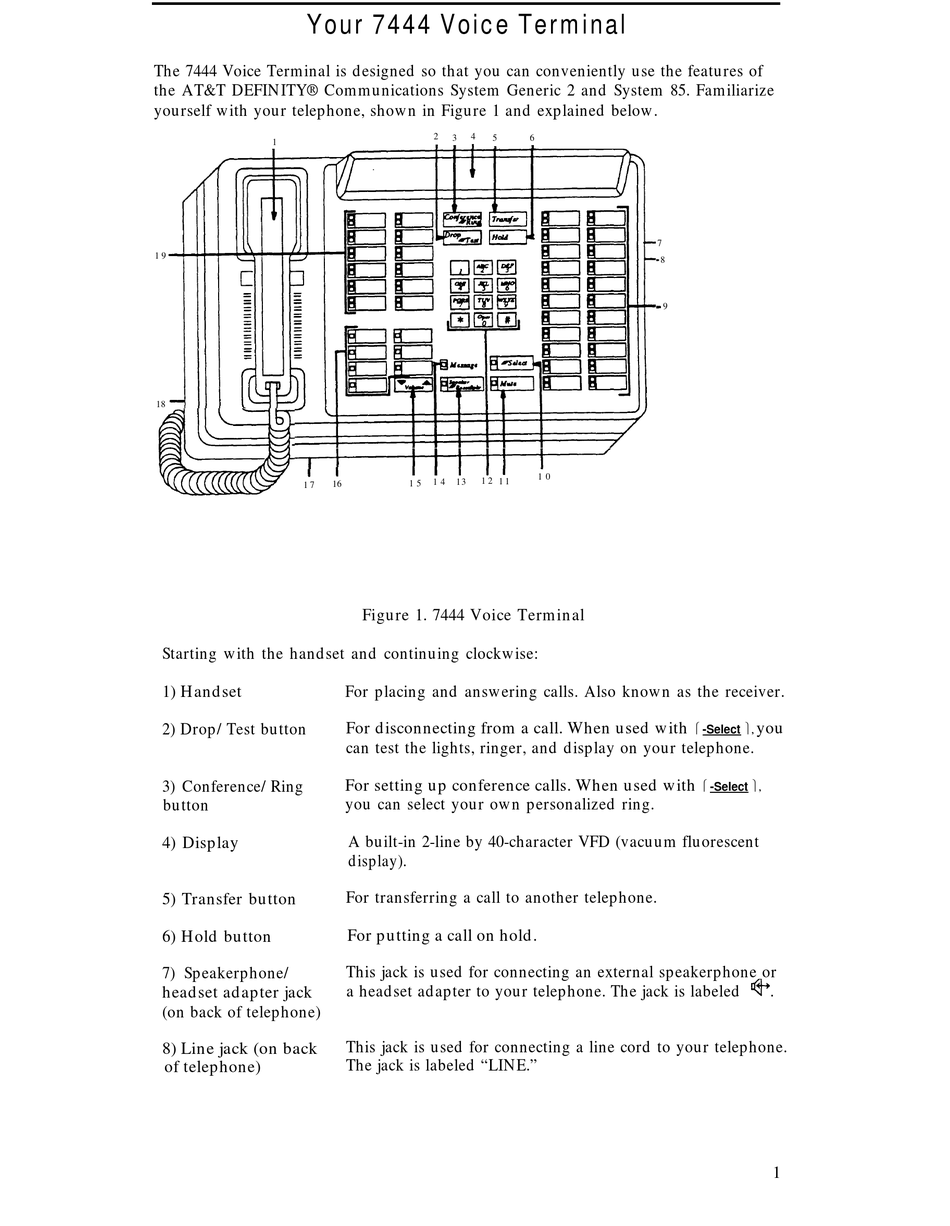

Figure 1. 7444 Voice Terminal
For placing and answering calls. Also known as the receiver.
For disconnecting from a call. When used with
can test the lights, ringer, and display on your telephone.
For setting up conference calls. When used with
you can select your own personalized ring.
A built-in 2-line by 40-character VFD (vacuum fluorescent
display).
For transferring a call to another telephone.
For putting a call on hold.
This jack is used for connecting an external speakerphone or
a headset adapter to your telephone. The jack is labeled
This jack is used for connecting a line cord to your telephone.
The jack is labeled "LINE."
