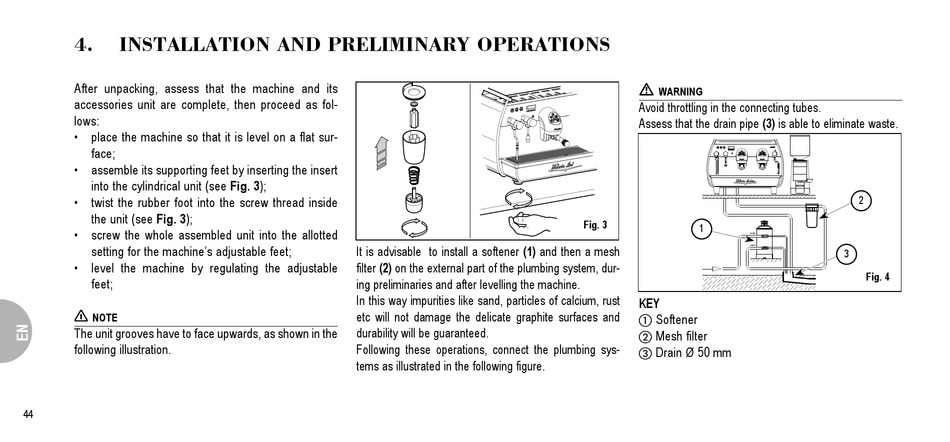

4. inSTALLATiOn And pReLiminARY OpeRATiOnS
After unpacking, assess that the machine and its
accessories unit are complete, then proceed as fol-
lows:
• place the machine so that it is level on a flat sur-
face;
• assemble its supporting feet by inserting the insert
into the cylindrical unit (see Fig. 3);
• twist the rubber foot into the screw thread inside
the unit (see Fig. 3);
• screw the whole assembled unit into the allotted
setting for the machine's adjustable feet;
• level the machine by regulating the adjustable
feet;

NOTE
The unit grooves have to face upwards, as shown in the
following illustration.
44
It is advisable to install a softener (1) and then a mesh
filter (2) on the external part of the plumbing system, dur-
ing preliminaries and after levelling the machine.
In this way impurities like sand, particles of calcium, rust
etc will not damage the delicate graphite surfaces and
durability will be guaranteed.
Following these operations, connect the plumbing sys-
tems as illustrated in the following figure.

WARNING
Avoid throttling in the connecting tubes.
Assess that the drain pipe (3) is able to eliminate waste.
Fig. 3
1
KEY
① Softener
② Mesh filter
③ Drain Ø 50 mm
2
3
Fig. 4
