ON Semiconductor NCP1083QBCGEVB User Manual

NCP1083QBCGEVB
Compact, high efficiency,
30 W Reference platform
with the NCP1083
Evaluation Board
User's Manual

Board Details

The NCP1083QBCGEVB implements a PoE module that
converts the power from the Ethernet cable to a lower
voltage. The board also supports getting its power from and
auxiliary input, in case PoE network is not available

Warnings

Close to the switching MOSFET voltages on the board
may exceed 200 V (@250 kHz). Temperature of board and
its components may exceed 85C during normal operation.
The Evaluation board was designed to operate correctly
under these conditions.
The input voltage should never exceed 57 V nor should
the evaluation board be loaded with loads higher than the
specified 30 W. Exceeding the specified input and output
values could permanently damage the board.
Table 1. EVALUATION BOARD SPECIFICATIONS
Characteristic
Input Voltage, PoE Input
Input Voltage, Auxiliary Input
Output Voltage
Output Current
Oscillator Frequency
Output Ripple
Efficiency
 Semiconductor Components Industries, LLC, 2011
December, 2011 − Rev. 0
EVAL BOARD USER'S MANUAL

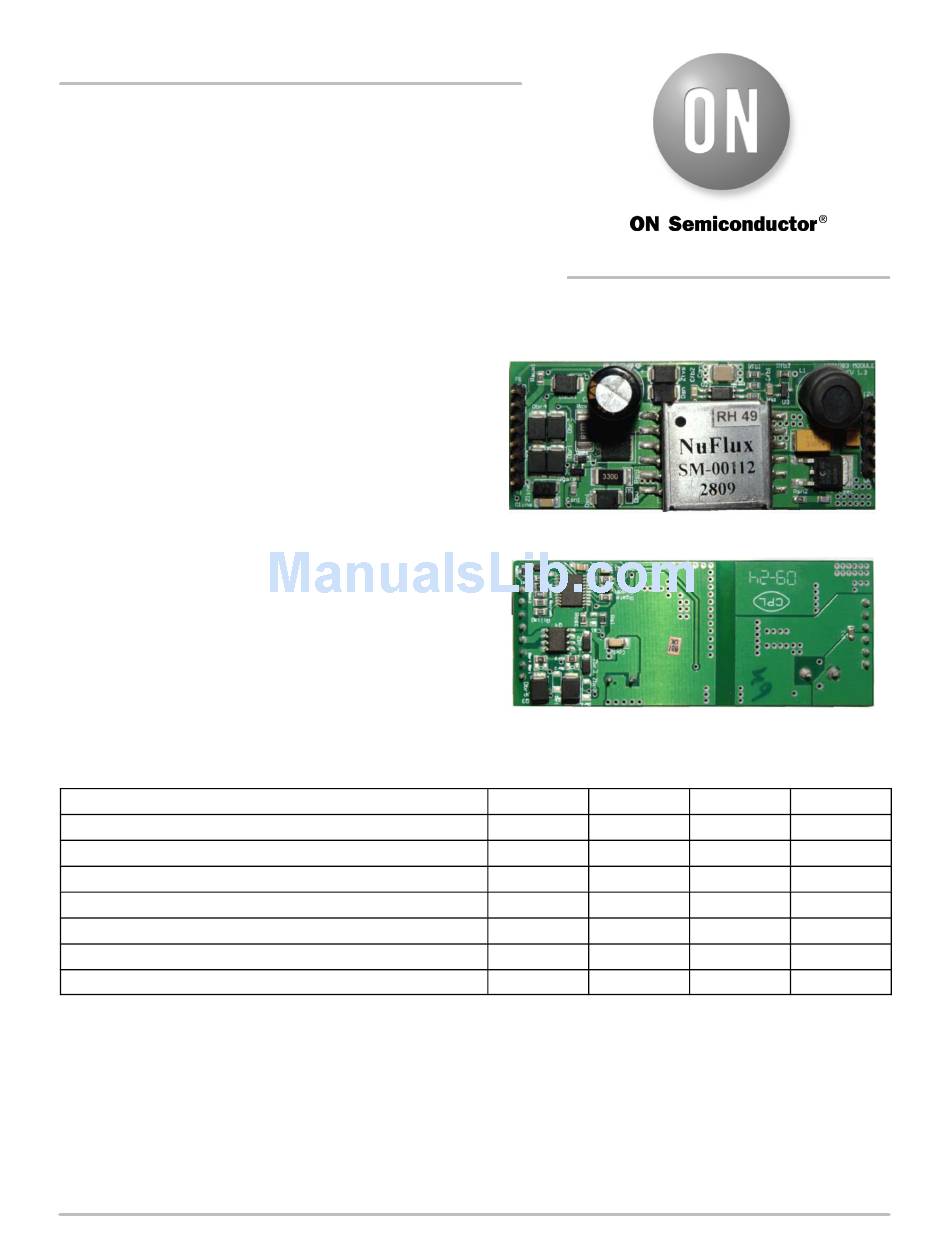

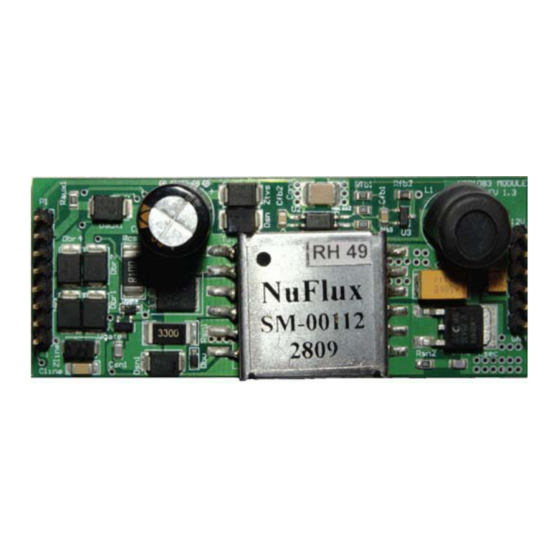

Figure 1. Front Side of EVB
Figure 2. Back Side of EVB
Min Typ
36 −
24 −
− 12
− −
− 250
− −
− −
1
http://onsemi.com
Max Unit
57 V
57 V
− V
2.5 A
− kHz
170 mV
88 %
Publication Order Number:
EVBUM2006/D
