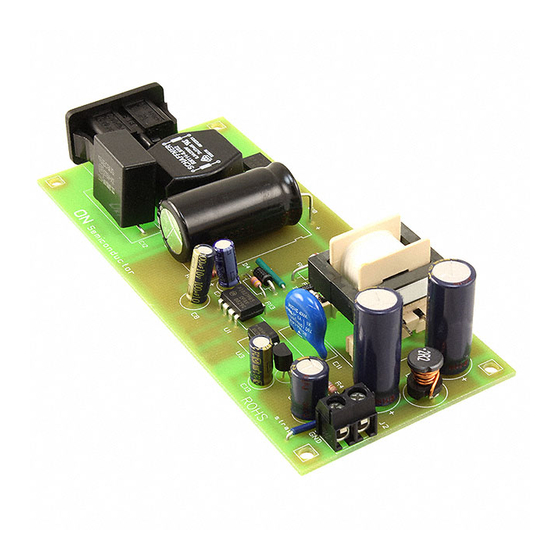

Test Procedure for the NCP1027ATXGEVB
04/20/2006

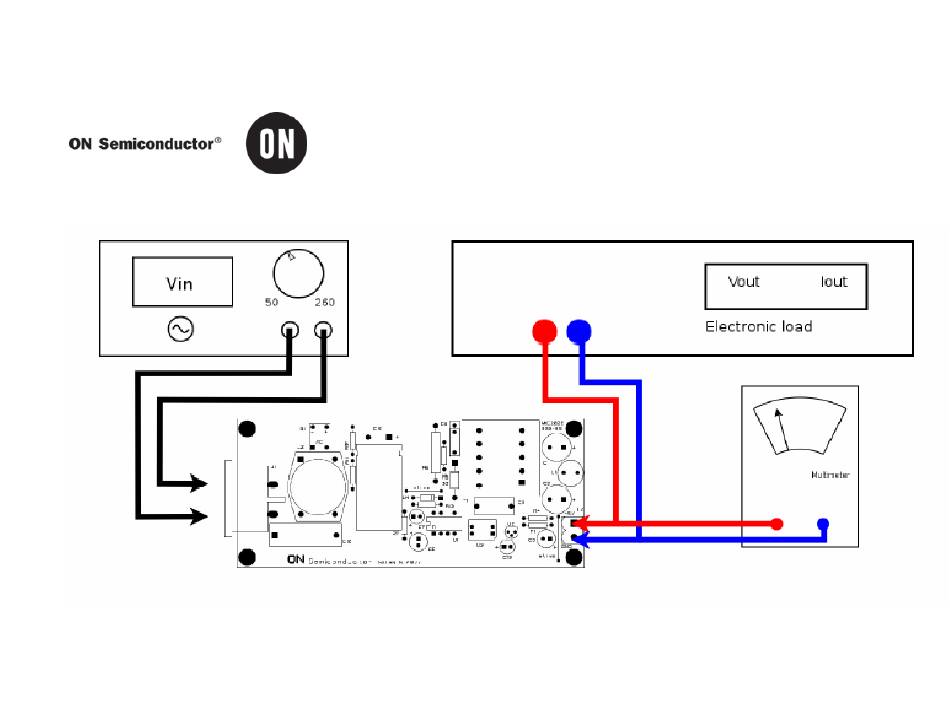

Figure 1: Test Setup

Advertisement

loading
Need help?

Need help?

Do you have a question about the NCP1027ATXGEVB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ON Semiconductor NCP1027ATXGEVB

Summary of Contents for ON Semiconductor NCP1027ATXGEVB

  • Page 1 Test Procedure for the NCP1027ATXGEVB 04/20/2006 Figure 1: Test Setup...
  • Page 2 Table 1: Required Equipment ac Power Supply, 85 V – 265 Yokogawa Power Meter WT210 Multimeter , 1 A Electronic Load, 5 V up to 3 A NCP1027ATX Evaluation Board Test Procedure: 1. Connect the test setup as shown in Figure 1. 2.
  • Page 3 Table 2: Desired Results Measurments Conditions Results Comments = 100 V 1 Output Voltage no load = 5 V ± 5% No load measurment can Input consumption at = 230 V = 0.09 W ± 15%, fluctuate, run WT210 in high line and no load no load = 5 V...
