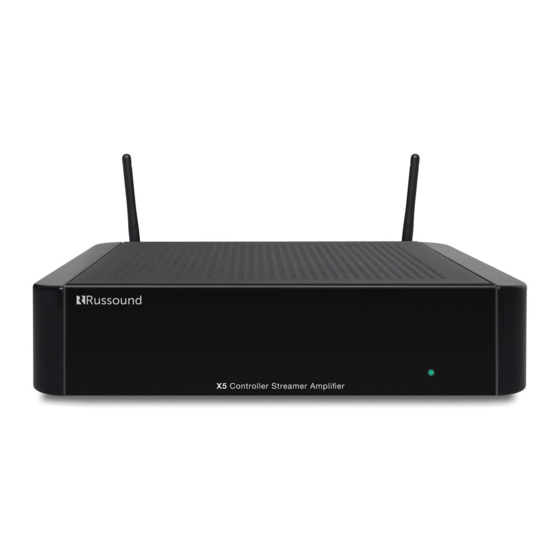

Russound XStream X5 Installation Manual

Controller streamer amplifier
Hide thumbs Also See for XStream X5:
Table of Contents

Advertisement

Quick Links

XStream
X5
Controller Streamer Amplifier
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XStream X5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Russound XStream X5

Summary of Contents for Russound XStream X5

  • Page 1 XStream Controller Streamer Amplifier ™...

  • Page 2: Table Of Contents

    Table of Contents XStream™ X5 Catalog Page 3 X5 Manual Quick Start Guide Page15 X5 Installation Manual Page 22 XStream Control Sales Sheet Page 66 XStream Performance Support Page 67 XStream Content Introducing XStream The new performance standard in wireless audio everywhere. ™...
  • Page 3 Experience X5 Whole-House Audio – Audiophile Sound Quality, Superior Content, Real Control. WiFi Enabled with On Board Streaming WiFi Enabled with On Board Streaming App and keyboard control App and keyboard control Bluetooth® ready Bluetooth® ready IR controller IR controller 50 watts X 2 amplifiers with subwoofer out 50 watts X 2 amplifiers with subwoofer out Digital Coax or Optical Input...
  • Page 4 Every X5 zone can be controlled by a keypad or the My Russound App, available for iOS and Android. And the X5 has an IR database with universal and learning commands to control other AV devices.

  • Page 5: Xstream Control

    • Gold Plated Audio Connections • High-end Build Quality Keypad MDK-C6 XStream Content ™ Russound was the first multi-room audio company to embrace Apple™ Airplay™ and offer popular on-board streaming services. Popular Built-in Streaming Services • AirPlay Device • Reliable...
  • Page 6 The X5 offers extensive connectivity options, integration capabilities and synchronization features to provide unique customized options for every room in your home. Every X5 zone can be controlled by a keypad or the My Russound App, and includes IR features to control other AV devices. The X5 is loaded with digital inputs, line-level and subwoofer outputs, Apple AirPlay, and a Bluetooth option to provide a plethora of media connections (yes, we said “plethora”.) No matter where your music comes...
  • Page 7 Wired or Wireless Standard Ethernet port for wired connection; pair of diversity antennas for wireless connectivity Bluetooth® Optional BTC-1X transceiver can be connected via CAT5 cable for Bluetooth® streaming Digital Inputs Coax and Optical inputs for connecting external digital audio device (CD player, Cable TV box, etc.) Subwoofer Output...
  • Page 8 It can even be programmed with a custom passcode and room name for easy identification, using a USB cable and a free software download. Like all Russound Local Source Modules, the BTC-1X can be set to automatically interrupt an active audio signal. It integrates easily...
  • Page 9 • 5-character LCD shows source name, volume level Connect one of Russound’s keypads or touchscreens, and status or control it wirelessly using the My Russound app. • Single gang Decora-style design • Responsive easy-to-use buttons for simple control • IR receiver •...
  • Page 10 The thin bezel design and magnetic grill makes Acclaim the most visu- ally appealing speakers Russound has ever offered. With multiple choices of driver configurations, there’s an Acclaim speaker to meet every need.
  • Page 11 XStream™ Content Pandora Russound was the first multi-room audio company to embrace Pandora provides a customized experience allowing you to create Apple™ Airplay™ and offer popular on-board streaming services. up to 100 stations based on your musical preferences. The same •...
  • Page 12 USB cable and a free software download. Like all Russound Local Source Modules, the BTC-1X can be set to automatically inter- rupt an active audio signal. It integrates easily with the X5 via a dedicated CAT5...
  • Page 13 Installation X5 Specifications Mounting tabs on side panels. Product Dimensions 10.6" (W) x 2.4" (H) x 9.5" (D) (27.0 x 6.0 x 24.1 cm) The XStream™ X5 controller can be wall mounted, Shipping Dimensions 13.8" (W) x 4.0" (H) x 13.8" (D) cabinet mounted or placed on a shelf in an (34.9 x 10.2 x 34.9 cm) equipment rack.
  • Page 14 The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, iPad model names Inc. and any use of such marks by Russound is under license. other trademarks and trad www.russound.com names are those of their respective owners.
  • Page 15 XStream™ X5 Controller Streamer Amplifier Quick Start Guide...
  • Page 16 1 IR emitter turn on power switch near AC inlet on the back of the X5. The XStream X5 will turn on to Access Point Mode. Wait for yellow and green lights to be solid. Like other Wi-Fi enabled devices, Access 2.
  • Page 17 XStream™ X5 Controller Streamer Amplifier Quick Start Guide Connecting XStream X5 to your home network 3. Open browser on mobile device or laptop. For iOS (Safari browser), browse to http://XStrmX5-XXXXXX. local. Again reference sticker on bottom of unit to find host name.
  • Page 18 XStream™ X5 Controller Streamer Amplifier Quick Start Guide Connecting to a wired network Connecting to a wireless network To connect to a wired network, de-select “Enable Wi-Fi” and press continue. To connect to a wireless network, pick the desired network from the list of available Wi-Fi Attach Ethernet cable.
  • Page 19 XStream™ X5 Controller Streamer Amplifier Quick Start Guide Connecting to a wired network Follow the steps shown in the dialog box below Enter security information and press connect. On confirmation screen, press continue. The X5 will now connect to the new network, wait for green LED to turn on solid. If yellow LED begins to blink the X5 could not connect to the specified network.
  • Page 20 Name” field on the “Stream Settings” page. To view the Stream Settings page, select Administration then Stream Settings. The XStream X5 can be fully configured using Russound SCS (SCS-C5) configuration software. SCS software off ers zone customization, local source set up, IR management and power management options.
  • Page 21 XStream™ X5 Controller Streamer Amplifier Quick Start Guide IR Learning System On LED Reinitializing Access Point Mode IR Talkback System Status LEDs Depress the button on the bottom panel for 2 seconds. Yellow and green LEDs will blink Yellow Green Red Blue 6 times then go solid.

  • Page 22: X5 Installation Manual

    XStream™ X5 Controller Streamer Amplifier Installation Manual...

  • Page 23: Safety Instructions

    Safety Instructions Cleaning - The appliance should be cleaned only as recommended Wall or Ceiling Mounting - The appliance should be mounted to a by the manufacturer. From time to time you should wipe off the wall or ceiling only as recommended by the manufacturer. front and side panels and the cabinet with a soft cloth.
  • Page 24 IR Connection ..................59 Wireless Network ...............31 Zone 12 VDC Trigger Outputs ............60 Setting AirPlay Name ...............32 USB Devices Connection .............61 Russound Interfaces ............... 33-37 Ethernet Connections ..............62 TS3 Touchscreen ................33 SCS Software Download ..............62 MDK-C6 .................. 34-36 SCS Software Programming ............63 SLK-1 ....................37...

  • Page 25: Product Overview

    Product Overview Introduction Additionally, every X5 zone can be controlled by the My Russound App, available for iOS and Android Thank you for choosing the Russound XStream X5 Controller Streamer Amplifier to fill your home devices. The app and keypad can be configured to control other AV devices connected to X5. Every with audio everywhere.

  • Page 26: X5 Front Panel Illustration

    Front Panel IR Learning IR Talkback System On LED (blue) System Status LEDs (yellow green red)

  • Page 27: X5 Back Panel Illustration

    Back Panel Antenna Power Antenna Trigger Out Digital Audio In Line Out 12VDC 100mA Coax Optical Subwoofer Speaker Out Ethernet Keypad Bluetooth IR Out 100-240V~ 4 ohms min 50/60Hz 2.5A Made in China Ethernet Port AUX USB Port IR Out Digital Audio Line Output Power Switch...

  • Page 28: Setting Up X5

    Setting Up XStream X5 1. Unpack the X5 and all of its contents: 4. Strip back 1/8” of the insulation on the speaker wire and twist the end of each wire to tighten the bundle of copper strands on each wire.

  • Page 29: Connecting X5 To Home Network

    1. Plug in power cable. (All other cables, including Ethernet should be disconnected.) Locate and 3. Open a browser on mobile device or laptop. For iOS (Safari browser), turn on power switch near AC inlet on the back of the X5. The XStream X5 will turn on to Access Point browse to http://XStrmX5-XXXXXX. local.

  • Page 30: Wired Network

    Connecting XStream X5 To Your Home Network Connecting to a wired network To connect to a wired network, de-select “Enable Wi-Fi” and press continue. Attach Ethernet cable. The X5 will reboot in wired mode.

  • Page 31: Wireless Network

    Connecting XStream X5 To Your Home Network Connecting to a wireless network Enter security information and press connect. On the confirmation screen, press continue. The X5 will To connect to a wireless network, pick the desired network from the list of available Wi-Fi networks.

  • Page 32: Setting Airplay Name

    “Stream Settings” page. To view the Stream Settings page, select Administration (from the dropdown menu), then Stream Settings. Now the XStream X5 can be fully configured using Russound SCS (SCS) configuration software. SCS software offers zone customization, local source set up, IR management and power management...

  • Page 33: Russound Interfaces

    It supports custom names for presets, banks, themes and favorites for a truly personal Can be disabled if desired. touch. The TS3 makes a great addition to an installed Russound system, as it can be installed into an existing double-gang junction box and built into your home.

  • Page 34: Mdk-C6

    Russound User Interfaces MDK-C6 Multiline Display Keypad are arranged in menus and lists. The navigation buttons also act as source controls to select next/ previous song, etc., depending upon the type of source. The MDK-C6’s buttons and menus allow the user to easily find and control music sources and to make changes to system settings and room audio levels.

  • Page 35: Sleep Timer

    Russound User Interfaces MDK-C6 Basic Operation Edit name - Choose the favorite to rename from the favorite menu select edit and use the +/- buttons to scroll through the alphabet and the forward button to move to the next character.
  • Page 36 Russound User Interfaces Home Menu - Sleep Timer Installer Options You can set the timer so the zone turns off in one of the following increments: 15, 30, 45, IR enable/disable - The default is Enabled. If an external IR receiver is used, the keypad IR receiver or 60 minutes.
  • Page 37 Russound User Interfaces SLK-1 The SLK-1 keypad is an in-wall, Decora® style single-gang keypad designed for individual zone control of MCA-C3/MCA-C5 Multiroom Controller Amplifier and XStream X5 product. (Wall plate not included). Red LED will blink to indicate IR remote...

  • Page 38: Installation Overview

    Installation Overview Ventilation Requirements Side Panel Important: The XStream™ X5 should be situated so that its location or position does not interfere with its proper ventilation. Do not block vents above of the unit, as it requires ventilation for proper operation.
  • Page 39 Installation Overview Electrical Power The XStream™ X5 operates at 100-120VAC ~60 Hz or 220-240VAC ~50 Hz. Voltage is selected automatically by the power supply and the appropriate detachable power cord. It is recommended that the XStream™ X5 and the source equipment be plugged into a dedicated 15-amp circuit. The power switch for the unit is on the rear panel as shown.

  • Page 40: Basic Operation

    Basic Operation Home Menu - Favorites XStream™ X5 can be accessed from the source list or through a dedicated button on keypads or touchscreen devices. The X5 stream will be displayed as the name configured through SCS (SCS) Favorites - Save a source or a radio station/channel as a favorite. configuration software.
  • Page 41 • Network Settings - This screen displays an IP and MAC address for the XStream X5 when the controller is connected to a network. This screen also provides diagnostic messages when IP assignment is incomplete.

  • Page 42: Listening To Airplay Streaming

    Listening to Airplay Streaming Using the swipe feature in iOS 7, swipe from the Press the AirPlay menu button to reveal a list The XStream™ X5 has Apple’s AirPlay technology built into the streamer. AirPlay works over your Wi-Fi bottom of the screen to the top of the screen to of AirPlay capable devices.

  • Page 43: Listening To Pandora Internet Radio

    Listening to Pandora Internet Radio ® Pandora provides a customized experience allowing you to create up to 100 stations based on your TS3 Menu Navigation for X5 musical preferences. You can access the same Pandora account on all - network connected - Now Playing X5 streams.
  • Page 44 Listening to Pandora Internet Radio ® MDK-C6 Menu Navigation for X5 SLK-1 Menu Navigation for X5 Red LED will blink to indicate IR remote reception Press Volume Up or Down buttons to Press and release source adjust volume level button to scroll through the available sources 1.

  • Page 45: Listening To Siriusxm Internet Radio

    Listening to SiriusXM Internet Radio ® SiriusXM Internet radio permits one instance of streaming content per subscription. So while, the same user TS3 Menu Navigation for X5 account credentials can be entered into all streaming modules of the multiple X5 products, only one can stream content at any given time.
  • Page 46 Listening to SiriusXM Internet Radio ® MDK-C6 Menu Navigation for X5 SLK1 Menu Navigation for X5 Red LED will blink to indicate IR remote reception Press Volume Up or Down buttons to Press and release source adjust volume level button to scroll through the available sources 1.

  • Page 47: Listening To Vtuner Internet Radio

    Users can filter content by Local Stations, Location, Genre, New Stations, Most Popular, and Favorites. Back Button Button Users can access the online web portal at http://russound.vtuner.com Using the X5 and vTuner, users can search stations & podcasts, create favorites, and even add stations not listed in the vTuner database.
  • Page 48 Listening to vTuner Internet Radio MDK-C6 Menu Navigation for X5 SLK1 Menu Navigation for X5 Red LED will blink to indicate IR remote reception Press Volume Up or Down buttons to Press and release source adjust volume level button to scroll through the available sources 1.

  • Page 49: Listening To Tunein Internet Radio

    Listening to TuneIn™ Internet Radio TS3 Menu Navigation for X5 TuneIn™ Internet Radio can be accessed on the X5 and is supported through all supported user interfaces. TuneIn™ lets you listen to the world’s radio from the any X5 connected in the home. Now Playing Whether you love sports, music, news, or comedy, TuneIn gives you the best of what’s live with Back Button...
  • Page 50 Listening to TuneIn™ Internet Radio MDK-C6 Menu Navigation for X5 SLK1 Menu Navigation for X5 Red LED will blink to indicate IR remote reception Press Volume Up or Down buttons to Press and release source adjust volume level button to scroll through the available sources 1.

  • Page 51: Listening To Network Audio Files (Media Server)

    Users can also install UPnP/DLNA media server software on their computers to allow access and control of iTunes library content from a Russound user interface instead of only having AirPlay select and control what is listened to from within iTunes.
  • Page 52 Listening to Network Audio Files (Media Server) MDK-C6 Menu Navigation for X5 SLK1 Menu Navigation for X5 Red LED will blink to indicate IR remote reception Press Volume Up or Down buttons to Press and release source adjust volume level button to scroll through the available sources 1.

  • Page 53: Controller/Keypad Connection

    If more keypads are desired for a zone, use an optional SA-ZX3 keypad splitter with a Russound 1201A (12VDC 1A) power supply at the controller end. All keypads on an SA-ZX3 control the same zone.

  • Page 54: Speaker Connection

    Speaker Connection Speaker Output Connections CAUTION: Do not connect L- and R- together. Use four-conductor cable and wire each ground individually. Do not use a common ground. Shorting between terminals will cause damage to the digital amplifier. The XStream™ X5 supports speaker outputs for one room of audio. The 50 watt per channel stereo speaker level outputs have high-current two-channel digital amplifiers.

  • Page 55: Adding Controller Amplifier Or A-Bus To X5

    Adding Controller Amplifier or A-BUS to X5 Set the Line Output to Variable in the SCS menu. RCA Cable Set the Line Output to Fixed in the SCS menu. A-H4 A-BUS Hub RCA Cable...
  • Page 56 Disabling the feature requires the user to select the Bluetooth® source input on the keypad or My Russound App and then push audio to the BTC-1X from the device. If no music is playing from the hand-held Bluetooth® device, the X5 zone will be quiet when the Bluetooth®...

  • Page 57: Source Audio Connection

    The X5 zone will turn on when the TV digital signal is active. If using a keypad in that zone, the keypad will also turn on and indicate the source TV on the keypad display. If the My Russound app is being used as the control of the X5, the app will indicate that the zone is on and the TV source is active.
  • Page 58 Source Audio Connections SCS dealer programming tool Speaker Speaker Cable box Subwoofer MDK-C6 USRC...

  • Page 59: Ir Connection

    There is an IR receiver located on the front panel of the X5 for learning IR commands. See SCS software for more details on setting universal codes, learning commands or building Macros to control source devices connected to the X5. 12V Trigger Cable IR emitter Russound 845.1 Connecting Block 12V Trigger Cable...

  • Page 60: Zone 12Vdc Trigger Outputs

    Zone 12VDC Trigger Outputs There is one 12VDC trigger on the back of the XStream™ X5. The 3.5mm jack provides 12VDC 100mA when the X5 is turned on and is disengaged when the zone is turned off. The trigger can be used to engage any 12VDC trigger device or component that does not exceed 100mA such as a subwoofer or another amplifier.

  • Page 61: Usb Devices Connection

    USB Device Connection Ethernet Connection The XStream™X5 has a USB 2.0/1.1 port on the rear panel for easy firmware updating of controller. The IP address can be seen on the MDK-C6 keypad. From the keypad’s Home screen, choose Settings, Software can be updated by Ethernet, Wi-Fi or by USB if necessary. If no internet connection is then Installation.

  • Page 62: Scs Software Download

    The third is “Support’ and is used primarily for checking system updates, contacting Russound for support and corporate contact information. See the Quick Guide for more information about the web server...

  • Page 63: Scs Software Programming

    IR Universal Code Library – Universal commands are stored in the X5 database to simplify programming. FIRMWARE UPDATE - If an update is released, it will be available online at www.russound.com. Firmware updates are available via IP and USB download. You can use SCS to check for updates.

  • Page 64: Technical Specifications

    Technical Specifications Troubleshooting Specifications • Make sure the power switch is in the On position. The power switch is in the rear panel of the product. Specification Type* Specification Text Shipping Dimensions 13.75” x 13.75” x 4” (350mm x 350mm x 102mm) •...

  • Page 65: Tech Tip

    Technical Tips Why does the channel I am listening to keep closing down? Why does the stream say “Are you listening?” or stop playing after 90 minutes? Rebuffering is something found in all live internet streaming experiences. It is mostly due to your internet connection speed (56k or lower) or excess network traffic.

  • Page 66: Led Diagnostic Chart

    X5 LED Diagnostic Chart IR Learning System On LED Reinitializing Access Point Mode IR Talkback System Status LEDs Depress the button on the bottom panel for 2 seconds. Yellow and green LEDs will blink Yellow Green Red Blue 6 times then go solid. If the Ethernet cable is connected, the Red LED will blink as a warning Booting that the X5 will reboot in wired-ethernet mode.

  • Page 67: Warranty

    For this warranty to apply, the unit must be installed and used according to its written instructions. Newmarket, NH 03857 If service is necessary, it must be performed by Russound. The unit must be returned to Russound at the owner’s expense and with prior written permission. Accidental damage and shipping damage...

  • Page 68: Sales Sheet

    X5 Sales Sheet...

  • Page 69: Support

    8:00 AM to 12:00 PM / 12:30 PM to 7:00 PM EST 8:30 AM ET to 5:00 PM EST Toll free Toll free 1.866.888.7466 1.800.638.8055 International Phone International Phone +1.603.659.5170 +1.603.659.5170 Email (Sales) sales@russound.com +1.603.659.5388 Email (Tech Support): Russound tech@russound.com 5 Forbes Road...
