Russound CAV6.6 Instruction Manual

Six-zone, six-source audio-video controller amplifier
Hide thumbs Also See for CAV6.6:
Table of Contents

Advertisement

Quick Links

CAV6.6
Six-Zone, Six-Source
Audio-Video Controller Amplifier
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAV6.6 and is the answer not in the manual?

Questions and answers

Related Manuals for Russound CAV6.6

Summary of Contents for Russound CAV6.6

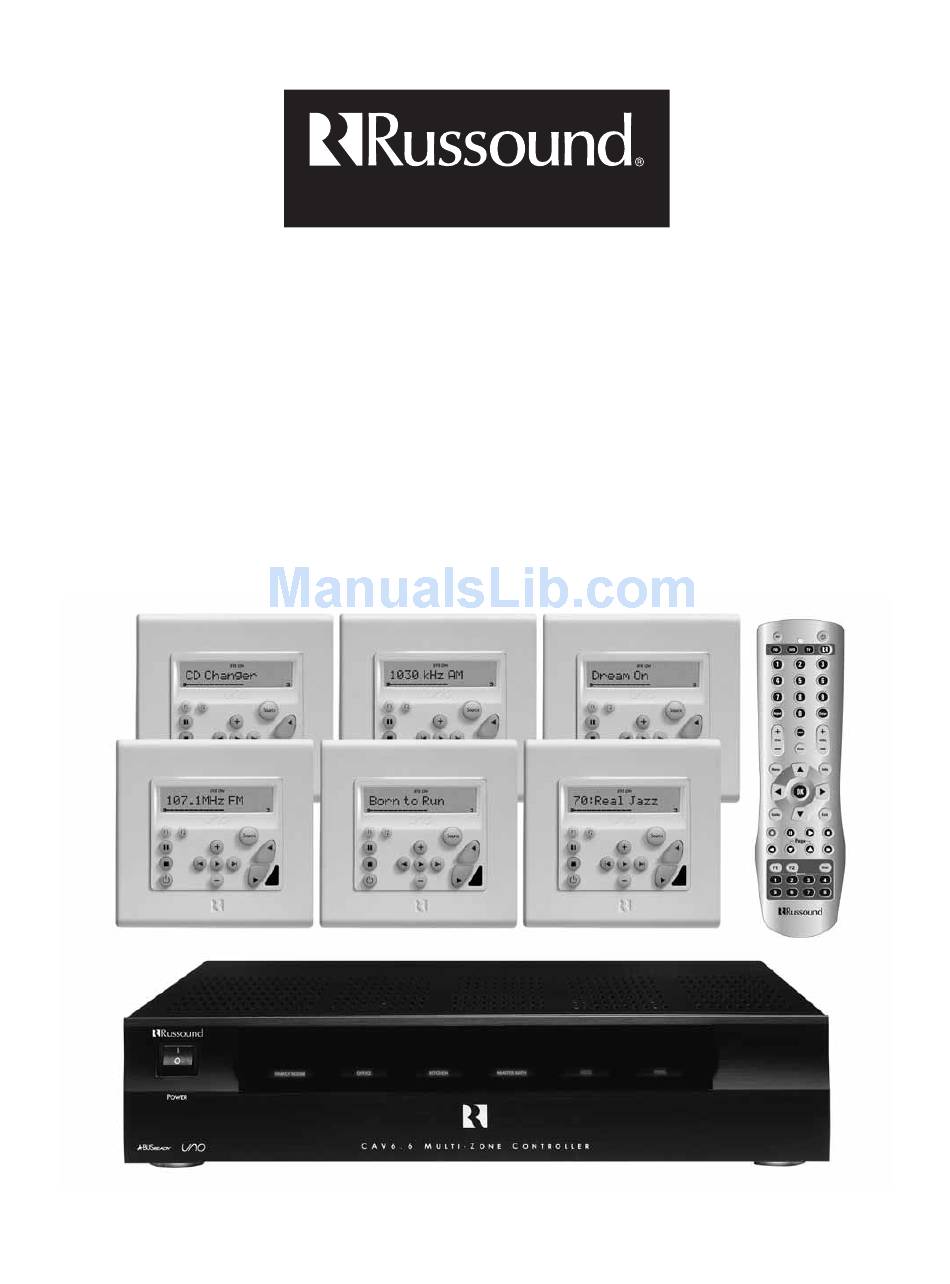

  • Page 1 CAV6.6 Six-Zone, Six-Source Audio-Video Controller Amplifier INSTRUCTION MANUAL...

  • Page 2: Important Safeguards

    50Hz voltages. The unit will autoswitch to either of these voltages 2. Do Not Touch The CAV6.6 With Wet Hands – Do not handle the CAV6.6 or power cord when your hands are wet or damp. If water or any other liquid enters the CAV6.6 cabinet, take the CAV6.6 to a qualified service...

  • Page 3: Table Of Contents

    USER SECTION Product Introduction...5 Component Guide CAV6.6 Controller (Front panel operation)...6-7 UNO-S2 Keypad ...8 UNO-TS2 Touchscreen ...9 UNO-S1 Keypad ...10 SRC2 Remote Control...11 Operation UNO-S2 Keypad Button Functions...12 UNO-S2 User Menu - Setting Preferences...13 UNO-S1 Keypad Button Functions...14 UNO-S1 User Menu - Setting Preferences...15 UNO-TS2 Touchscreen Button Functions ...16...
  • Page 4 IR Device Code List ...74-77 Source Names List...78-79 Sample System Configurations 1 -Six Zones and Six Sources ...80-81 2 - Integrate Multiple CAV6.6's ...82-83 3 - Zone Keypad Expansion ...84-85 4 - A-BUS Ready Sub-zone Addition ...86-87 5 - Additional Amplification ...88-89 6 - Home Theater ...90-91...

  • Page 5: Product Introduction

    This controller’s state-of-the-art features and components blend seamlessly with your unique lifestyle and preferences. Besides distributing and controlling six A-V sources to six rooms (zones), your CAV6.6 offers many features that increase your enjoyment of living. Here are several features that you may find particularly beneficial.

  • Page 6: Component Guide

    ROOM LABEL WINDOW - Holds the selected room Label (included) AUX A/V LINE INPUTS - Supports connection of a seventh A/V source to the CAV6.6 AUX IR OUT PORT - Connects IR emitter for IR control of the Aux A/V source component...
  • Page 7 CAV6.6 Controller-Front Panel The AUX IR jack adjacent to the line input accepts an IR Emitter with a 1/8” plug (e.g., Russound 845.1 IR emitter). The emitter’s other end attaches to the IR window of the component to control the auxiliary source.

  • Page 8: Uno-S2 Keypad

    Party Mode is enabled, and “MASTER” indicates the Master Keypad in Party Mode SOURCE SELECT BUTTON - Scrolls through the sources directly connected to the CAV6.6. Press and hold brings up the USER MENU for loudness, bass, treble, etc. VOLUME UP/DOWN BUTTONS - Raises and lowers the volume for the room IR RECEIVER - Receives IR signals and passes them to the controller and source equipment.

  • Page 9: Uno-Ts2 Touchscreen

    IR RECEIVER - Receives IR signals and passes them to the controller and source equipment. Also used when operating the touchscreen by using the SRC2 remote TOUCHSCREEN - Full color resistive touchscreen with multi-sound feedback. Screen can be programmed to go blank after a period of inactivity. Touching the screen any- where reactivates it.

  • Page 10: Uno-S1 Keypad

    USER COMPONENT GUIDE UNO-S1 Keypad LCD PANEL - 5-character backlit display shows source, volume and room status (messages scroll, then display first 5 characters of message) SOURCE SELECT - Scrolls through the available sources. Press and hold brings up the USER MENU for loudness, bass, treble, etc. VOLUME UP/DOWN BUTTONS - Raises and lowers the volume for the room IR RECEIVER - Receives IR signals and passes them to the controller and source equip- ment.

  • Page 11: Src2 Remote Control

    (e.g., VCR, DVD, or CD player) with these buttons. SOURCE - Directly select sources connected to the Russound controller while in the Russound mode. F1 AND F2 BUTTONS - Selects and saves Favorite 1 or Favorite 2 preset selections.

  • Page 12: Operation Uno-S2 Keypad Button Functions

    Press and release to turn on the UNO System Keypad. This also turns on the corre- sponding CAV6.6’s room, and any presets previ- ously assigned will be activated, including set- tings for bass, volume, last source selected, etc. Press and release to turn off the UNO System Keypad.

  • Page 13: Uno-S2 User Menu - Setting Preferences

    The User Menu allows the user to adjust the audio properties and control functions of a par- ticular room. The following keys are used to navigate and make changes while using the User Menu: To enter the User Menu, press and hold ing normal operation.

  • Page 14: Uno-S1 Keypad Button Functions

    Press and release to turn on the UNO System Keypad. This also turns on the corre- sponding CAV6.6’s room, and any presets previ- ously assigned will be activated, including set- tings for bass, volume, last source selected, etc. Press and release to turn off the UNO System Keypad.

  • Page 15: Uno-S1 User Menu - Setting Preferences

    The UNO-S1 User Menu allows the user to adjust the audio properties and control func- tions of a particular room. To enter or exit the User Menu, press and hold during normal operation. The following keys are used to navigate and make changes while using the User Menu: Press and hold to adjust feature setting (increment)

  • Page 16: Uno-Ts2 Touchscreen Button Functions

    USER OPERATION UNO-TS2 Touchscreen Button Functions Room On/Off To turn on the room and the touchscreen, touch the UNO-TS2 screen anywhere, or press and release the power button. Any presets previously assigned will be activated, including settings for bass, volume, last source selected, etc. Press and release the power button to turn off the touch- screen, and to put the room into a standby state.

  • Page 17: User Menu Settings

    USER USER MENU SETTINGS UNO-TS2 - Setting Preferences The Options button on the UNO-TS2 home screen Options brings up room setting options and screen adjust- ments. (For more detailed information, consult the UNO-TS2 Instruction Manual) Features Turn On Volume - This sets the room’s default vol- ume when the room is turned on.

  • Page 18: Getting Started

    A rack-mount location may require fans and vents. Connection Tips • It is recommended that the CAV6.6 and the source equipment be plugged into a dedicated 20-amp circuit with an isolated ground. A power...

  • Page 19: Component Guide

    PC or other RS-232 interface devices IR CONFIRMATION LED - IR Learning and preprogrammed IR output confirmation LED IR RECEIVER - Receives IR signal when learning IR codes into the CAV6.6 ZONE LABEL - Selectable backlit labels identify active zones...

  • Page 20: Cav6.6 Controller Rear Panel

    ZONE 12VDC TRIGGER OUT - 12VDC 50ma is available whenever the corresponding zone is turned on UNO KEYPAD PORTS - One UNO Keypad Port for each of the six CAV6.6 Zones 24VDC 2.5A INPUT - Provides power to the A-BUS READY SUB-ZONES when used with a 24VDC 2.5A power supply (e.g., Russound A-PS)

  • Page 21: Cav6.6 Controller Rear Panel

    A-BUS READY SUB-ZONES - A-BUS Amplified Control Modules and Hubs can be added for additional sub-zones of audio (Zones 1 to 4 only) RNET LINK IN AND LINK OUT - Links multiple CAV6.6’s, also links future Russound components that are RNET compatible RS-232 INTERFACE - The RS-232 Interface on the rear and on the front, allows the zones to be controlled by PC or other devices that have an RS-232 Interface.

  • Page 22: Uno Keypad Os Update Port

    UNO Keypad-OS Update Port Software Update If a keypad update is released, it will be available online at www.russound.com through the Document Center, under RNET Systems. Before starting the update procedure, download updates to a PC and con- nect the correct programming cable from the PC to the OS update port on the front of the keypad.

  • Page 23: Uno Keypad Rear Panel

    RESET BUTTON - (UNO-S2) Reset whenever changing from RUN to OS update (UNO-TS2) Reset after touchscreen firmware update 110 PUNCHDOWN CONNECTOR - Termination for CAT-5 connection between the UNO Keypad and the CAV6.6 controller UNO Keypads-Rear Panel RNET NEWMARKET, NH USA...

  • Page 24: Wiring Instructions

    CAV6.6 location. The maximum recommended wire run length is 250 feet for each UNO Keypad.

  • Page 25: Uno-S2 Keypad Installation

    CAT-5 Connection The UNO-S2 Keypad uses a 110-punchdown terminal to provide a simple installation and strong connection for CAT-5 cable’s eight con- ductors. Punchdown terminals require the use of a punchdown tool which has been provided with the keypad kit. Attach the CAT-5 cable to the 110 punchdown terminal on the UNO-S2 Keypad as shown, matching the conductor colors to the connection color guide.

  • Page 26: Ir Receiver Connection

    IR Receiver Connection The UNO-S2 keypad has an External IR Receiver In terminal for connecting an external IR receiver such as the Russound SaphIR 858, 862 Eye, or 860 Phantom. Use 2 twisted pair wire with Back of Russound 858...

  • Page 27: Keypad Location

    (do not use metal boxes). Screw UNO-S2 KEYPAD-INSTALLATION • Route CAT-5 wire to the junction box from the CAV6.6. • Use the supplied 110 punchdown tool to con- nect each wire to its corresponding color labeled on the punchdown terminal.

  • Page 28: Making Connections

    MAKING CONNECTIONS UNO System Keypad Port Connection The UNO System Keypad Ports are located on the back of the CAV6.6 in the top left corner. Connections made at the UNO Keypad Ports are made using CAT-5 T568A RJ-45 wire configura- tion.

  • Page 29: Source Audio/Video Input Connections

    Source Audio/Video input number located on the CAV6.6. Source IR Connections Each source component has a designated IR port on the back of the CAV6.6. This IR port is directly below the Source Audio/Video Input/Output Connections. MAKING CONNECTIONS Source Audio/Video Input Connections 1.

  • Page 30: Source Audio/Video Loop Output Connection

    This source loop configuration allows the CAV6.6 to pass source signals to another component, such as a home theater receiver or to another CAV6.6 for sharing sources in a multiple controller system. The Source Loop Outputs are located directly to the right of the Source Audio/Video Inputs.

  • Page 31: Speaker Connections

    The speakers are connected to the CAV6.6 using modular snap speaker connectors. Each of these color coded connectors is designated for the speaker set of a particular amplified zone. To avoid confusion, connect one zone speaker set at a time starting with Zone 1, tak- ing care to keep zone and speaker wire identi- ties straight.

  • Page 32: Accessory Ir Connection

    INSTALLER MAKING CONNECTIONS ACC IR Connection The Accessory IR jack on the rear of the CAV6.6 allows control of any source equipment without that source being selected on the keypad. The connection for the ACC IR jack is made using an IR emitter with the 1/8’’...

  • Page 33: Zone Audio/Video Outputs

    (e.g., Russound R235LS two-channel amplifier). The Zone Audio/Video Outputs are located slightly to the left of center on the rear of the CAV6.6. MAKING CONNECTIONS Zone Audio (to Amp) and Video Outputs Use quality RCA signal cables to ensure a con- stant quality Audio signal.

  • Page 34: A-Bus Ready Sub-Zone Connection

    A-BUS Ready Sub-zone Connection A-BUS products can easily expand the CAV6.6 audio system by adding A-BUS Ready Sub-zones to the first four CAV6.6 zones. The A-BUS Ready Sub-zones are located on the back of the CAV6.6 at the bottom left corner. The A-BUS Ready Sub-zones are powered by a 24VDC power supply such as the A-PS.

  • Page 35: 12Vdc Trigger In/Out

    12VDC is provided to the trigger, the sources will be turned on until it is removed. When the last zone on the CAV6.6 is turned off, 12VDC pres- ence to the trigger input will prevent the sources from being turned off. The connections for the trigger are made using a two-conductor cable with 1/8”...

  • Page 36: Page Trigger In/Out

    The Page Trigger In is located in the Page connection area of the CAV6.6 Controller. The connections for the trig- ger are made using a two-conductor cable with 1/8” male mini-plug jacks. The tip is positive (+) and sleeve is negative (-).
  • Page 37 INSTALLER MAKING CONNECTIONS 12VDC Trigger In/Out...

  • Page 38: Zone Trigger Out

    The trigger can be used to engage any 12VDC trigger device or component such as the Russound R235LS amplifier. The connections for the trigger outputs are made using a two-con- ductor cable with 1/8” male mini-plug jacks at each end.

  • Page 39: Rnet Link In/Out - Multiple Controllers

    The RNET Link In and Link Out is used to con- nect two or more (up to 6) CAV6.6 or CAM6.6 controllers. The connection is made using a CAT-5 patch cable from the Link Out of the mas- ter controller and into the Link In of the next controller.

  • Page 40: Rnet Link In/Out - Rnet-Enabled Components

    RNET Link In and Link Out - RNET-enabled Components The RNET Link In and Link Out is also used to connect the CAV6.6 to other Russound RNET-enabled products. The connection is made using a CAT-5 patch cable from the Link Out of the controller and into the Link In of the RNET- enabled component.

  • Page 41: Rs-232 Interface

    PC Power Tool soft- ware program. The two RS-232 com ports are located on the front and the back of the CAV6.6 and use a DB-9 cable connection. Before performing INSTALLER MAKING CONNECTIONS...

  • Page 42: Programming Center Keypad Port Connection

    IR commands directly into the IR receiver on the controller’s front panel. (see Learn IR flow chart on page 70) . The CAV6.6 can also be programmed from any UNO-S2 keypad connected to its keypad ports.

  • Page 43: Initial Install Test

    1. Check the source to see that it is operating properly. 2. Check the RCA A/V cable connections from the source to the Source #1 Input on the CAV6.6. 3. Check the speaker connections and verify that they are correct and are connected to the Zone #1 speaker outputs.

  • Page 44: Programming

    IR Device Codes (Pages 74-77) This list of command type IR device codes reflects the built-in IR codes in the CAV6.6 library. During programming, these codes will be entered for each source at the “Device Code” prompt. If a code is not listed for a source, the Learn IR procedure is available to learn in and centrally store IR codes.
  • Page 45 INSTALLER PROGRAMMING System Programming Overview (cont’d) 2. Number of Sources (# of Sources/SOURCE SETUP) (Page 56) This procedure sets the number of sources used in the system. This prevents the user from selecting a source input that is not used. 3.

  • Page 46: Source Information Form

    INSTALLER PROGRAMMING Source Information Form...

  • Page 47: Zone Information Form

    INSTALLER PROGRAMMING Zone Information Form...

  • Page 48: Macro Editor Form

    INSTALLER PROGRAMMING Macro Editor Form...

  • Page 49: Installation Menu

    There are three item types in the installation menu: Menu – “Folder” that holds procedures and/or feature options. Procedure – A series of steps to perform a guided operation, such as configuring a button. Feature – The actual settings that will change the system configuration. The following UNO-S1 and UNO-S2 buttons are used to navigate and make selections while using the installation menus.

  • Page 50: Source Setup

    INSTALLER INSTALLATION MENU The following items make up the Installation Menu: SOURCE SETUP (SrcSu) POWER MGT (PwMgt) SYSTEM INFO (SInfo) SOURCE SETUP (SrcSu) Source Setup allows the system’s sources to be configured. The following items can be found in the SOURCE SETUP menu: BASIC SETUP (BasSu) KEY CONFIG (KeyCf) SRC VOL TRIM (SrcVT)

  • Page 51: Basic Setup

    ii. TEMPLATE TYP – (TType) b. Selected: Unassigned (Unasg) c. All Other Selections: 4. DEVICE CODE – (DevCd) 5. TEST IR? – (TstIR) 6. SUCCESS? – (OK?) 7. USE NUM IR? – (NumIR) 8. HIGHEST NUM – (High#) 9. AUTO PLAY? – (AtoPl) 10.
  • Page 52 INSTALLER INSTALLATION MENU Key Config (cont’d.) 2. SOURCE NUM – (Src #) 3. SELECT A KEY – (SelKy) 4. KEY TYPE – (KeyTp) 5. KEY NAME – (KeyNm) 6. COMMAND TYPE – (CmdTp) a. Selected: Learned IR – (LrnIR) i. LEARNED SRC – (LnSrc) b.
  • Page 53 SOURCE NAMES (SrcNm) This procedure allows the installer to customize the source names for the sources attached to the CAV6.6. See Source Setup Menu on Page 50 and Source Names/Vol Trim - Flow Chart on page 64 1. SOURCE NUM –...
  • Page 54 INSTALLER INSTALLATION MENU Numeric IR (cont’d) a. Selected: Learned IR (LrnIR) i. LEARNED SRC – (LnSrc) b. Selected: Unassigned (Unasg) c. Selected: Default (Deflt) d. Selected: Macro: i. MACRO - (Macro) ii. MACRO ID – (MacID) e. All Other Selections: 7.
  • Page 55 i. MACRO - (Macro) ii. MACRO ID – (MacID) e. All Other Selections: 11. DEVICE CODE – (DevCd) 12. KEY FUNCTION – (KeyFn) 13. SAVE CHANGES? – (Save?) SRC SEL CMD (SrcSC) This procedure permits a command to be sent to the source component when the source component is initially selected.

  • Page 56: Zone Setup

    # OF SOURCES (#Srcs) At this field it is necessary to enter the number of sources used in the CAV6.6 system (1 to 6). This limits the sources displayed on the keypad in the normal running mode when the source button is pressed, but also limits source selections in the configuration menus.

  • Page 57: Controller Setup

    (FInit) POWER MGT (PwMgt) The CAV6.6 is capable of managing the power state of the connected source equipment. The power management is configured on a source-by-source basis. All sources that have power management enabled are initialized by a “POWER ON” command or macro which must cause the source to produce an audio signal.

  • Page 58: Power Management

    INSTALLER INSTALLATION MENU Power Management (cont’d) one minute after that. This timeout is postponed for as long as the home theater trigger input has 12VDC present. See Installation Menu on Page 50 and Power Management - Flow Chart on page 69 1.

  • Page 59: Learn Ir

    IR codes that operate the source equipment. NOTE: IR codes must be learned in pointing the source’s remote control at the CAV6.6’s front panel IR receiver. Use a keypad connected to the CAV6.6’s front panel programming port for convenience in navigating the Learn IR procedure menu.

  • Page 60: Macro Editor

    INSTALLER INSTALLATION MENU Learn IR (cont’d) 1. LEARNED SRC – (LnSrc) 2. KEY FUNCTION – (KeyFn) 3. LEARN/DELETE – (Ln/Dl) 4. TEST IR? – (TstIR) 5. SUCCESS? - (OK?) MACRO EDITOR (MacEd) This procedure is used to create a sequence of commands that are launched with one key touch or other event.

  • Page 61: System Info

    Source component code for IR control. Select a function (Play, etc.). BUILD DATE (Bdate) Displays the number of CAV6.6 controllers in the system. Displays the Software Build Time of the controller. Displays the Software Build Date of the controller. Displays the software version of the CAV6.6.

  • Page 62: Setup Menu Flow Charts

    INSTALLER SETUP MENU FLOW CHARTS Source Setup: Basic Setup...

  • Page 63: Key Configuration

    INSTALLER SETUP MENU FLOW CHARTS Source Setup: Key Configuration...

  • Page 64: Source Names/Volume Trim

    INSTALLER SETUP MENU FLOW CHARTS Source Setup: Source Names/Volume Trim...

  • Page 65: Numeric Ir

    INSTALLER SETUP MENU FLOW CHARTS Source Setup: Numeric IR...

  • Page 66: Source Select/Number Of Sources

    INSTALLER SETUP MENU FLOW CHARTS Source Setup: Source Select Command/# of Sources...

  • Page 67: Zone Setup

    INSTALLER SETUP MENU FLOW CHARTS Zone Setup...

  • Page 68: Controller Setup

    INSTALLER SETUP MENU FLOW CHARTS Controller Setup...

  • Page 69: Power Management

    INSTALLER SETUP MENU FLOW CHARTS Power Management...

  • Page 70: Learn Ir

    INSTALLER SETUP MENU FLOW CHARTS Learn IR...

  • Page 71: Macro Editor

    INSTALLER SETUP MENU FLOW CHARTS Macro Editor...

  • Page 72: Setup Menu Flow Charts

    INSTALLER SETUP MENU FLOW CHARTS System Info...

  • Page 73: Keypad Diagnostic Menu

    The Diagnostics Menu allows the installer to run a diagnostic check on the keypad and to verify the firmware version. The Diagnostics Menu also contains the update firmware procedure for updating the UNO-S1 and UNO-S2’s firmware. To access the Diagnostics Menu, press and hold the Setup button on the right side of the keypad until “DIAGNOSTICS”...

  • Page 74: Ir Device Code List

    INSTALLER IR DEVICE CODES Device Codes for TVs: Admiral 0093, 0463 Advent 0761, 0842 Aiko 0092 Akai 0030, 0672, 0702, 0812 Albatron 0700, 0843 America Action 0180 Anam 0180 0030 Apex Digital 0748, 0765, 0767, 0879, 1943 Audiovox 0451, 0180, 0092, 0623 Bell &...
  • Page 75 Device Codes for Cable: (cont’d) Starcom 0003 Supercable 0276 Supermax 0883 Torx 0003 Toshiba 0000 Tristar 0883 0883 Viewmaster 0883 Vision 0883 Vortex View 0883 Zenith 0000, 0525, 0899 Device Codes for Video Acc: 1272 Alienware 1272 CyberPower 1272 D-Link 1554 Escient 1151, 1371, 1370, 1373, 1372...
  • Page 76 INSTALLER IR DEVICE CODES Device Codes for VCRs: (cont’d) Pulsar 0039 Quasar 0035, 0162 Radio Shack 0000 Radix 0037 Randex 0037 0060, 0240, 0042, 0149, 0880 Realistic 0035, 0037, 0048, 0047, 0000, 0104 ReplayTV 0616 Runco 0039 Samsung 0045, 0240 Sanky 0048, 0039 Sansui...
  • Page 77 0892 Lenoxx 1561 Marantz 0892, 1491 Motorola 1464 Omnifi 1605 Optimus 0395 Philips 0892 Polk Audio 0892 Realistic 0395 Russound 1302 Sony 0159 Soundesign 0078 Victor 0331 Wards 0078 Yamaha 0354 Device Codes for CD Players: Aiwa 0157 Burmester 0420 Calif.

  • Page 78: Source Names List

    SOURCE NAMES UNO-S1 UNO-S2 Aux 1 AUX 1 Aux 2 AUX 2 Blues Blues Cable Cable Cbl 1 Cable 1 Cbl 2 Cable 2 Cbl 3 Cable 3 CDCh CD Changer CDCh1 CD Changer 1 CDCh2 CD Changer 2 CDCh3 CD Changer 3 CD Player CD 1...
  • Page 79 UNO-S1 UNO-S2 RepTV ReplayTV Rock Rock Satellite Sat 1 Satellite 1 Sat 2 Satellite 2 Sat 3 Satellite 3 SatRd Sat Radio Src 1 Source 1 Src 2 Source 2 Src 3 Source 3 Src 4 Source 4 Src 5 Source 5 Src 6 Source 6...

  • Page 80: Sample System Configurations

    IR receiver on the source component to the source component’s IR emitter output port on the rear on the CAV6.6. This type of configura- tion allows independent control over more than one identical source component. The IR from the remote will be routed to the selected source.
  • Page 81 SAMPLE SYSTEM CONFIGURATION 1 Six Zones and Six Sources...

  • Page 82: Integrate Multiple Cav6.6'S

    SAMPLE SYSTEM CONFIGURATION 2 Integrate Multiple CAV6.6’s This configuration uses an additional CAV6.6 to add six additional amplified zones, controlled through UNO-S2 Keypads. The source compo- nents are connected to both CAV6.6s with RCA cables using the source in/loop out to intercon- nect the audio/video signals.

  • Page 83: Integrate Multiple Cav6.6'S

    SAMPLE SYSTEM CONFIGURATION 2 Integrate Multiple CAV6.6’s...

  • Page 84: Zone Keypad Expansion

    Zone Keypad Expansion This configuration uses a SA-ZX3 Keypad Splitter hub to connect up to three UNO-S2 key- pads to one CAV6.6 UNO keypad port. For clean installations, use RJ-45 CAT-5 patch cables with the T568A configuration. To connect from the SA-ZX3 to an RJ-45 wall...

  • Page 85: Zone Keypad Expansion

    SAMPLE SYSTEM CONFIGURATION 3 Zone Keypad Expansion...

  • Page 86: A-Bus Ready Sub-Zone Addition

    CAV6.6 system. This configura- tion demonstrates sub-zoning of the first zone through the use of an A-BUS expansion hub. Only the first four (1-4) CAV6.6 zones can be expanded using the same numbered (1-4) A-BUS Ready Sub-Zone ports.
  • Page 87 SAMPLE SYSTEM CONFIGURATION 4 TATUS OWER 12VDC 100mA 24VDC 2A , NH U.S.A. EWMARKET , 1-S OURCE URFACE OUNT UDIO EYPAD UTPUTS YPASS TATUS IR C ONFIRM UDIO IR E MITTERS XPANSION A-H2 NPUT A-BUS Ready Sub-Zone Addition...

  • Page 88: Additional Amplification

    CAV6.6. Keypads The configuration uses a single UNO-S2 Keypad per zone on the CAV6.6. Each keypad is con- nected to the UNO System Keypad Port using the CAT-5 T568A RJ-45 wiring configuration. This gives complete control of each of the 6 UNO System Controlled Zones to the correspon- ding UNO-S2 Keypad.
  • Page 89 SAMPLE SYSTEM CONFIGURATION 5 Additional Amplification...

  • Page 90: Home Theater

    SRM-2.1. When zone 1 is pow- ered on, the SRM-2.1 is triggered allowing audio from zone 1 of the CAV6.6 to power the speak- ers. When the UNO System Keypad for zone 1 is shut off, 12VDC is no longer provided to the SRM-2.1, and the output of the SRM-2.1 is...
  • Page 91 SAMPLE SYSTEM CONFIGURATION 6 Home Theater...

  • Page 92: Ir Key Code List

    INSTALLER KEY CODES TV (HDTV) KEY FUNCTION UNO-S1 TV (HDTV) Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR Learned Only A / B TV/DVD TVDVD Learned Only TV/LD...
  • Page 93 KEY FUNCTION UNO-S1 TV (HDTV) Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up DiskU...
  • Page 94 INSTALLER KEY CODES CABLE KEY FUNCTION UNO-S1 CABLE Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR A / B TV/DVD TVDVD TV/LD TV LD Input...
  • Page 95 KEY FUNCTION UNO-S1 CABLE Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up DiskU...
  • Page 96 INSTALLER KEY CODES VIDEO ACC KEY FUNCTION UNO-S1 VIDEO ACC Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR A / B TV/DVD TVDVD TV/LD...
  • Page 97 KEY FUNCTION UNO-S1 VIDEO ACC Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up...
  • Page 98 INSTALLER KEY CODES SAT/DSS KEY FUNCTION UNO-S1 SAT/DSS Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR Learned Only A / B TV/DVD TVDVD Learned Only TV/LD...
  • Page 99 KEY FUNCTION UNO-S1 SAT/DSS Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up DiskU...
  • Page 100 INSTALLER KEY CODES KEY FUNCTION UNO-S1 VCR Volume Up VolUp Volume Down VolDn Mute Mutte Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR Learned Only A / B TV/DVD TVDVD Learned Only TV/LD TV LD...
  • Page 101 KEY FUNCTION UNO-S1 VCR Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up DiskU...
  • Page 102 INSTALLER KEY CODES LASER DISC KEY FUNCTION UNO-S1 LASER DISC Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR Learned Only A / B TV/DVD TVDVD Learned Only TV/LD...
  • Page 103 KEY FUNCTION UNO-S1 LASER DISC Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up...
  • Page 104 INSTALLER KEY CODES KEY FUNCTION UNO-S1 DVD Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR Learned Only A / B TV/DVD TVDVD Learned Only TV/LD TV LD...
  • Page 105 KEY FUNCTION UNO-S1 DVD Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up DiskU...
  • Page 106 INSTALLER KEY CODES RECEIVER KEY FUNCTION UNO-S1 RECEIVER Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR A / B TV/DVD TVDVD TV/LD TV LD Input...
  • Page 107 KEY FUNCTION UNO-S1 RECEIVER Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up DiskU...
  • Page 108 INSTALLER KEY CODES AMP/MISC AUDIO KEY FUNCTION UNO-S1 AMP/MISC AUDIO Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR Learned Only A / B TV/DVD TVDVD Learned Only TV/LD...
  • Page 109 KEY FUNCTION UNO-S1 AMP/MISC AUDIO Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up...
  • Page 110 INSTALLER KEY CODES KEY FUNCTION UNO-S1 CD Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR Learned Only A / B TV/DVD TVDVD TV/LD TV LD...

  • Page 111: Key Codes

    KEY FUNCTION UNO-S1 Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up DiskU...
  • Page 112 INSTALLER KEY CODES HOME CONTROL KEY FUNCTION UNO-S1 HOME CONTROL Volume Up VolUp Volume Down VolDn Mute Mute Channel Up Ch Up Channel Dn Ch Dn Power Power Enter Enter Prev Channel PrvCh TV/Video TVVid TV/VCR TVVCR A / B TV/DVD TVDVD TV/LD...
  • Page 113 KEY FUNCTION UNO-S1 HOME CONTROL Off, Power On/Off Learned Only Learned Only Learned Only Learned Only Learned Only Learned Only Bright Brght Learned Only Learned Only Close Close Learned Only Open Open Learned Only Halt Halt Learned Only AM/FM AM/FM Learned Only Learned Only Disk Up...

  • Page 114: Technical Specification

    TECHNICAL SPECIFICATION CAV6.6 Controller/Amplifier Dimensions: Power Supply: Fuse Rating: Frequency Response: Watts per channel: Total Harmonic Distortion: Signal to Noise Ratio: A/V Source Inputs: A/V Source Outputs: A-BUS Ready Ports: Source Audio Input: Source Audio Loop Output: Source Video Input:...

  • Page 115: Warranty And Repair

    In these cases, repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with a note explaining the nature of service required. Be sure to pack the unit in a corrugated container with at least three (3) inches of resilient material to protect the unit from damage in transit.
  • Page 116 A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd Australia. Russound 5 Forbes Road, Newmarket, NH 03857 Specifications subject to change without notice. tel 603.659.5170 • fax 603.659.5388 Russound is not responsible for typographical errors or omissions. For use with CAV6.6 Rev. 5 Hardware e-mail: tech@russound.com 28-1143 Rev. 5 05/10/06 www.russound.com...
