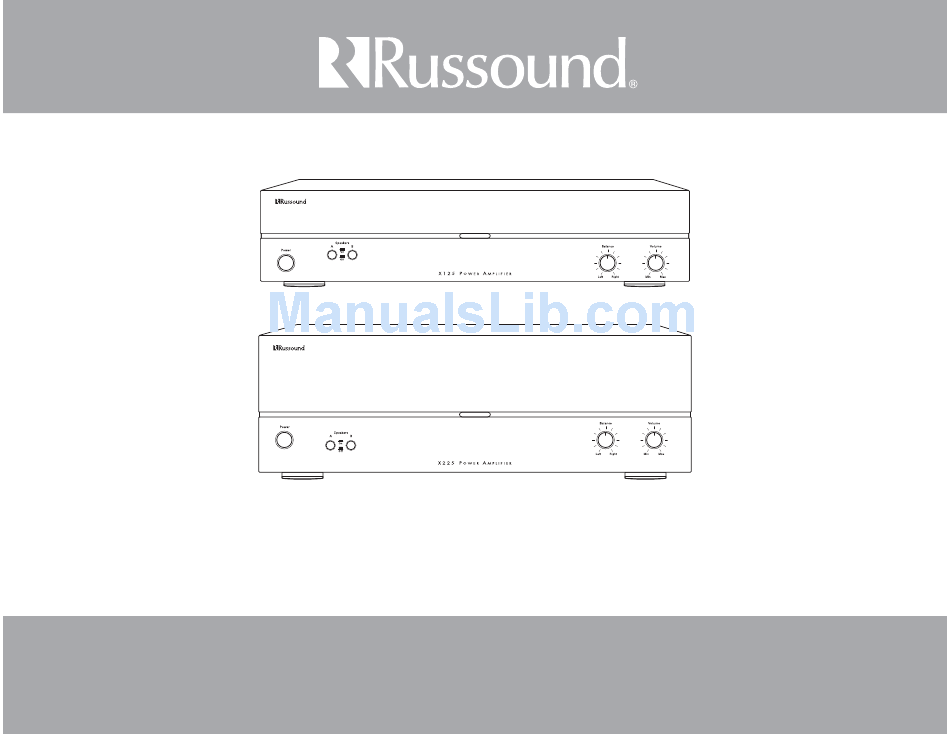

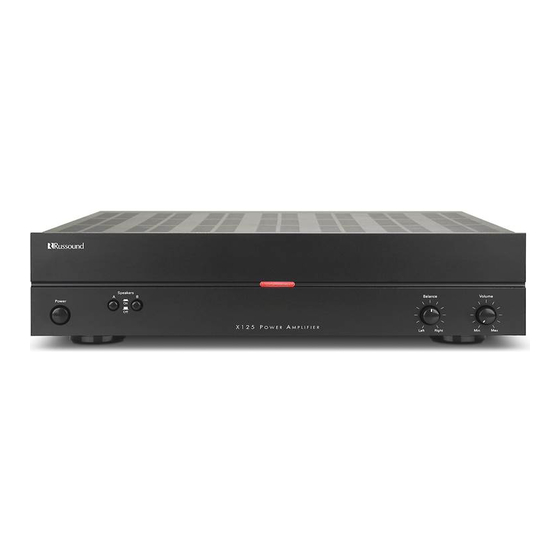

- Page 1 X125 - X225 Dual Source Power Amplifiers Installation Manual...
-
Page 2: Safety Instructions
Russound X125-X225 Installation Manual Rev. 1... -
Page 3: Table Of Contents
Front and Rear Panels ......................5 System Configuration - Stereo Mode ................6 System Diagram - Stereo Mode..................7 System Configuration - Bridged Mode ................8 System Configuration - External Volume Control ............9 Technical Specifications ......................10 Warranty ...........................11 Rev. 1 Russound X125-X225 Installation Manual... -
Page 4: Product Overview
In Bridge Balance - adjust speaker output balance between right and left channels. The mode the X125 is rated at 250 watts of power into a single 8 ohm load, and the default setting is at center. -
Page 5: Front And Rear Panels
Speaker Level Line Input Switch Delay Right/Left Stereo/Bridge 12V Trigger Power Option Speaker Output Power Inlet / Speaker Level Input Voltage Time Channel Switch In / Out Switch Fuseholder (Spring Connector) Selector Controls X125 Rear Panel Rev. 1 Russound X125-X225 Installation Manual... -
Page 6: System Configuration - Stereo Mode
Set the switch to Primary or Secondary. This forces the input to act as either the primary or secondary input. The X125 and X225 can be configured as a power upgrade for specific zones, Only one type of input (speaker or line) should be assigned to each input. -
Page 7: System Diagram - Stereo Mode
SYSTEM DIAGRAM - STEREO MODE Stereo Mode Configuration with Dual Sources (CD player is primary source) Rev. 1 Russound X125-X225 Installation Manual... -
Page 8: System Configuration - Bridged Mode
An 8 Ohm minimum load is recommended. Restore power to the amplifier. Be sure to equally adjust the Master Level right and left. Bridged Mode Configuration Russound X125-X225 Installation Manual Rev. 1... -
Page 9: System Configuration - External Volume Control
SYSTEM CONFIGURATION - EXTERNAL VOLUME CONTROL System Configuration with External Volume Control The X125 and X225 amplifiers can be configured for large autoformer-based Each amplifier has a minimum 4-ohm load in stereo mode, and minimum volume control systems or speaker selectors. Connect up to eight (total) 8-ohm load in bridged mode. -
Page 10: Technical Specifications
Power Requirements: 120VAC 60Hz 10A 230VAC 50Hz 5.2A IEC 320 type connector with 3 terminal detachable power cord. Dimensions: 16.5” W x 13.75”D x 5.25”H (41.9 x 34.9 x 13.3 cm) Weight: 34.2 lbs. (15.4 kg) Russound X125-X225 Installation Manual Rev. 1... -
Page 11: Warranty
WARRANTY Warranty Before returning a unit for repair, call Russound at (603) 659-5170 for a Return The Russound X125 and X225 Power Amplifiers are fully guaranteed against Authorization number. Write this number on the shipping label and ship to: all defects in materials and workmanship for two (2) years from the date of purchase. - Page 12 Russound, Inc. All trademarks are the property of their respective owners. 5 Forbes Road, Newmarket, NH 03857 Specifications are subject to change without notice. Russound is not responsible for typographical errors or omissions. email: tech@russound.com www.russound.com 28-1355 Rev. 1 11/16/10...
