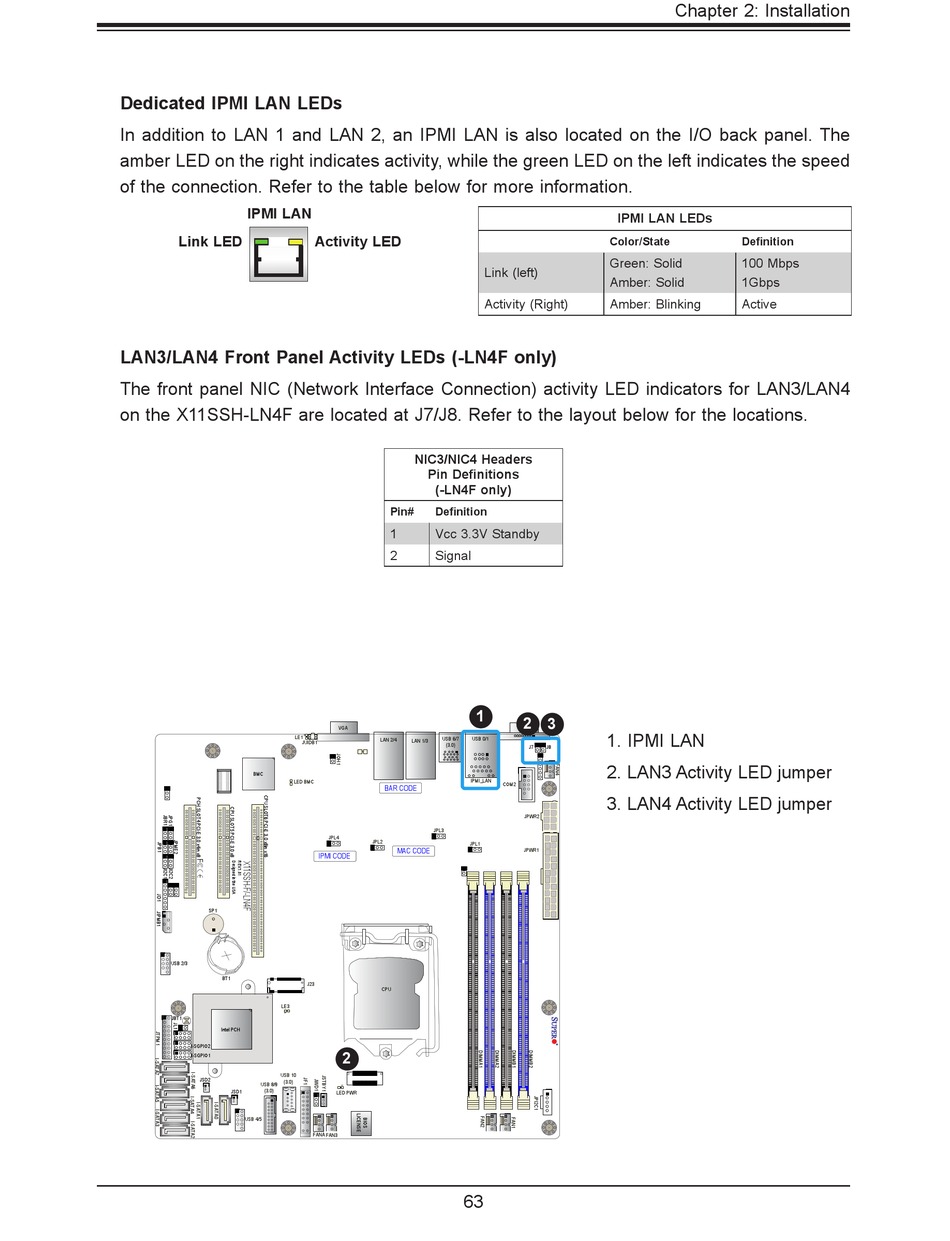

Supermicro X11SSH-F User Manual page 63

Dedicated IPMI LAN LEDs
In addition to LAN 1 and LAN 2, an IPMI LAN is also located on the I/O back panel. The
amber LED on the right indicates activity, while the green LED on the left indicates the speed
LAN 1/LAN 2
of the connection. Refer to the table below for more information.
IPMI LAN
Link LED
IPMI LAN
(X8ST3-F)
LAN3/LAN4 Front Panel Activity LEDs (-LN4F only)
The front panel NIC (Network Interface Connection) activity LED indicators for LAN3/LAN4
on the X11SSH-LN4F are located at J7/J8. Refer to the layout below for the locations.
LE1
BMC
LED BMC
SP1
USB 2/3
BT1
LE3
JBT1
Intel PCH
I-SGPIO2
I-SGPIO1
USB 10
JSD2
(3.0)
USB 8/9
(3.0)
JSD1
USB 4/5
Activity LED
NIC3/NIC4 Headers
Pin Definitions
(-LN4F only)
Pin# Definition
1 Vcc 3.3V Standby
2 Signal
1
VGA
USB 6/7 USB 0/1
LAN 2/4
LAN 1/3
JUIDB1
(3.0)
IPMI_LAN
BAR CODE
JPL3
JPL4
JPL2
JPL1
MAC CODE
IPMI CODE
J23
CPU
2
LED PWR
FANA FAN3
63
IPMI LAN LEDs
Color/State
Green: Solid
Link (left)
Amber: Solid
Activity (Right) Amber: Blinking
2 3
COM 1
1. IPMI LAN
J7 J8
2. LAN3 Activity LED jumper
COM2
3. LAN4 Activity LED jumper
JPWR2
JPWR1
Chapter 2: Installation
Definition
100 Mbps
1Gbps
Active
