Supermicro X11SSH-F User Manual page 61

BMC Enabled

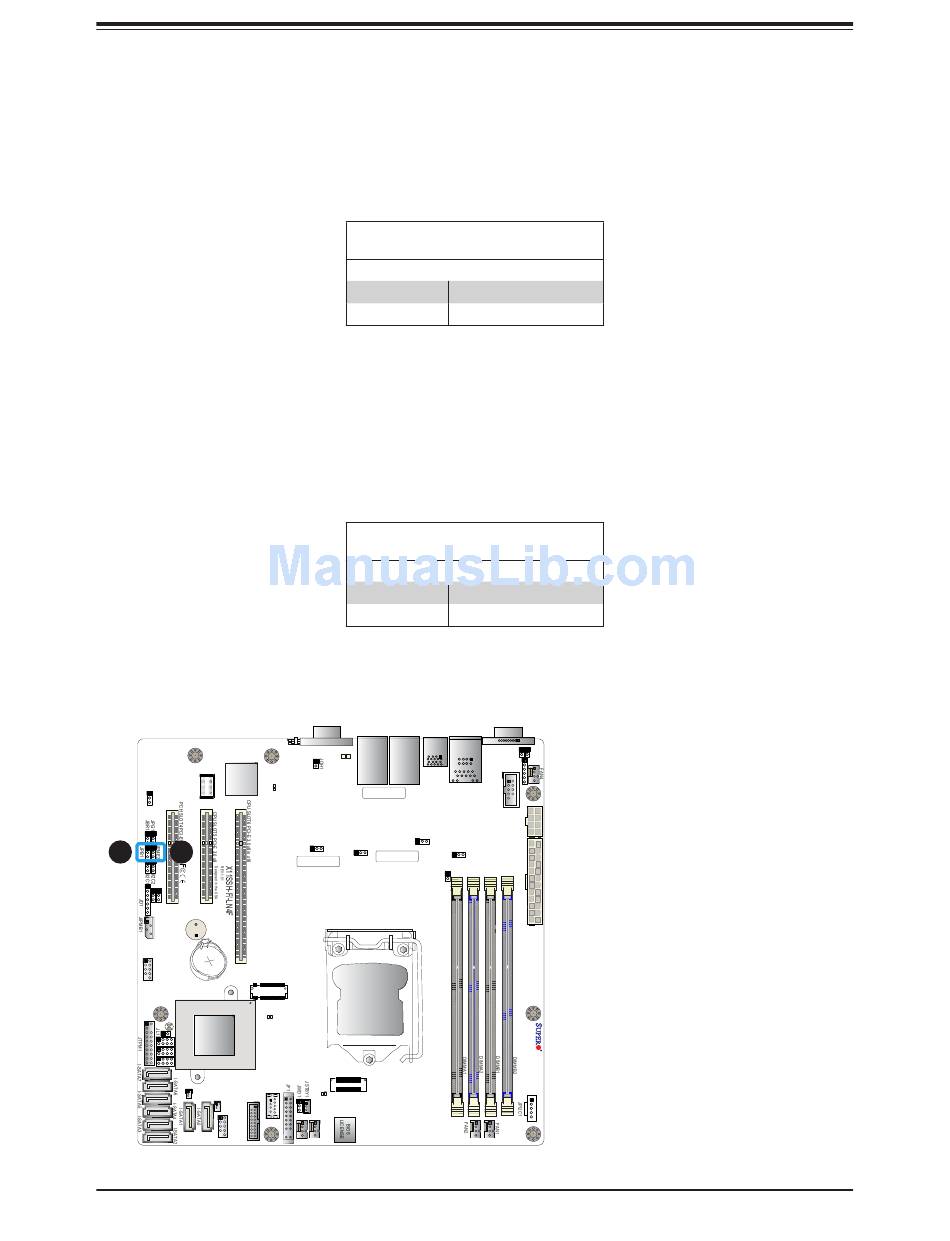

Jumper JPB1 allows you to enable the embedded ASpeed AST2400 Baseboard Management
Controller (BMC) to provide IPMI 2.0/KVM support on the motherboard. Refer to the table
below for jumper settings. The default setting is BMC Enable.
Manufacturer Mode Select
Close pin 2 and pin 3 of jumper JPME2 to bypass SPI flash security and force the system to
operate in the manufacturer mode, which will allow the user to flash the system firmware from
a host server for system setting modifications. Refer to the table below for jumper settings.
The default setting is Normal.
