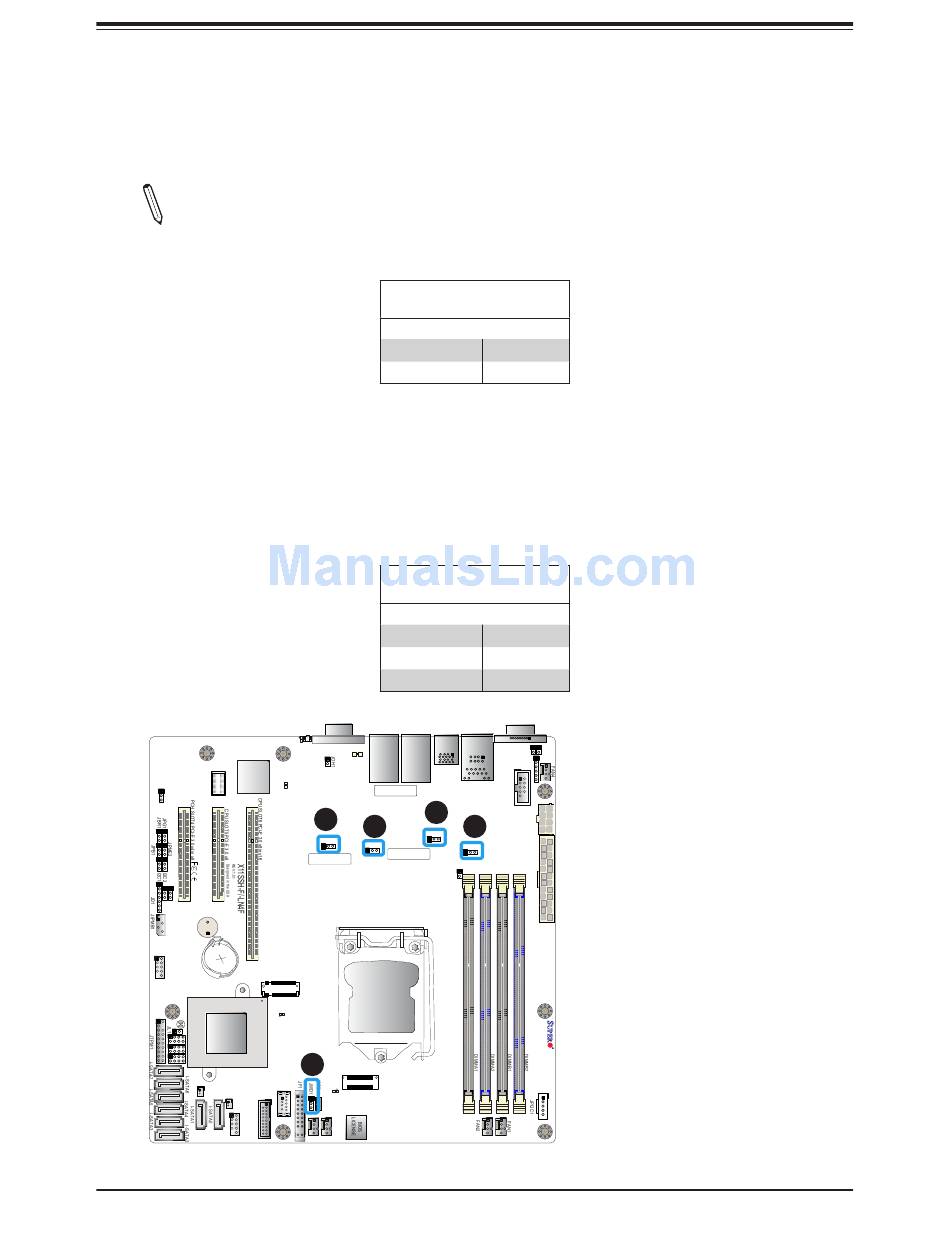

LAN Port Enable/Disable
Change the setting of jumper JPL1/JPL2 to enable or disable the LAN1/LAN2 LAN ports,
respectively. The default setting is Enabled.
Note: X11SSH-LN4F has additional jumpers JPL3/JPL4 which enable or disable LAN
ports 3/4 on the motherboard.
Watch Dog
Watch Dog (JWD1) is a system monitor that can reboot the system when a software
application hangs. Close pins 1-2 to reset the system if an application hangs. Close pins 2-3
to generate a non-maskable interrupt (NMI) signal for the application that hangs. Refer to the
table below for jumper settings. The Watch Dog must also be enabled in the BIOS.
