M.2 Slot

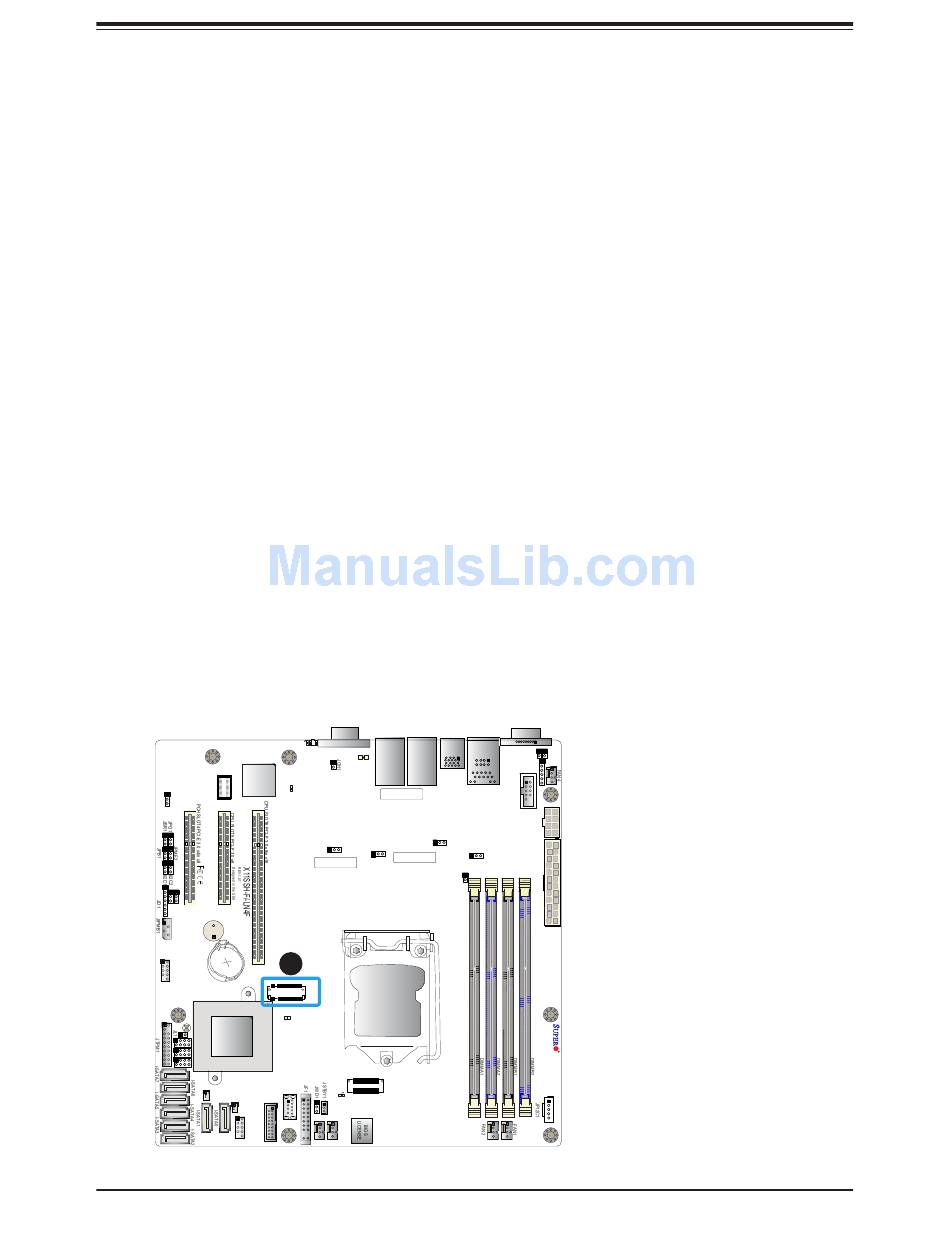

The X11SSH-F/-LN4F motherboard contains one M.2 socket at J23. M.2 was formerly Next
Generation Form Factor (NGFF) and serves to replace mini PCI-E and mSATA. M.2 allows for
a greater variety of card sizes, increased functionality, and spatial efficiency. The M.2 socket
on the X11SSH-F/-LN4F motherboard supports PCI-E 3.0 x2 M.2 cards in the 22x80mm
form factor.
