X11SSH-F/-LN4F User Manual

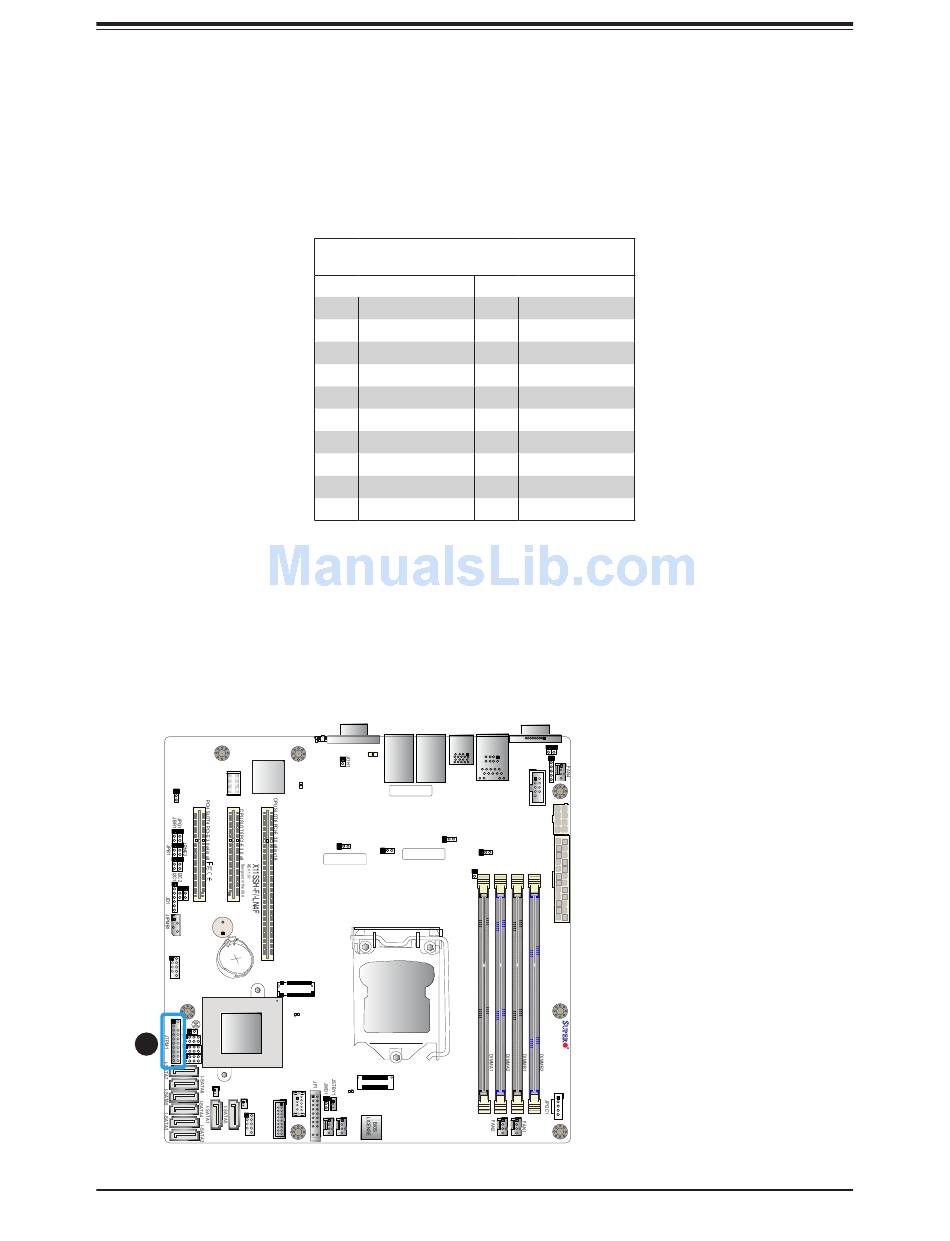

TPM/Port 80 Header
A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support
and Port 80 connection. Use this header to enhance system performance and data security.
Refer to the table below for pin definitions.
BMC
SP1
USB 2/3
BT1
JBT1
Intel PCH
1
I-SGPIO2
I-SGPIO1
JSD2
USB 8/9
(3.0)
JSD1
USB 4/5
Trusted Platform Module Header
Pin Definitions
Pin# Definition
1 LCLK
3 LFRAME#
5 LRESET#
7 LAD3
9 +3.3V
11 LAD0
13 SMB_CLK
15 +3V Stdby
17 GND
19 LPCPD#
VGA
LE1
USB 6/7
LAN 2/4
LAN 1/3
JUIDB1
(3.0)
LED BMC
BAR CODE
JPL3
JPL4
JPL2
MAC CODE
IPMI CODE
J23
CPU
LE3
USB 10
(3.0)
LED PWR
FANA FAN3
50
Pin# Definition
2 GND
4 <(KEY)>
6 +5V
8 LAD2
10 LAD1
12 GND
14 SMB_DAT
16 SERIRQ
18 CLKRUN#
20 LDRQ#
COM 1
USB 0/1
J7 J8
IPMI_LAN
COM2
JPWR2
JPL1
JPWR1
1. TPM Header
