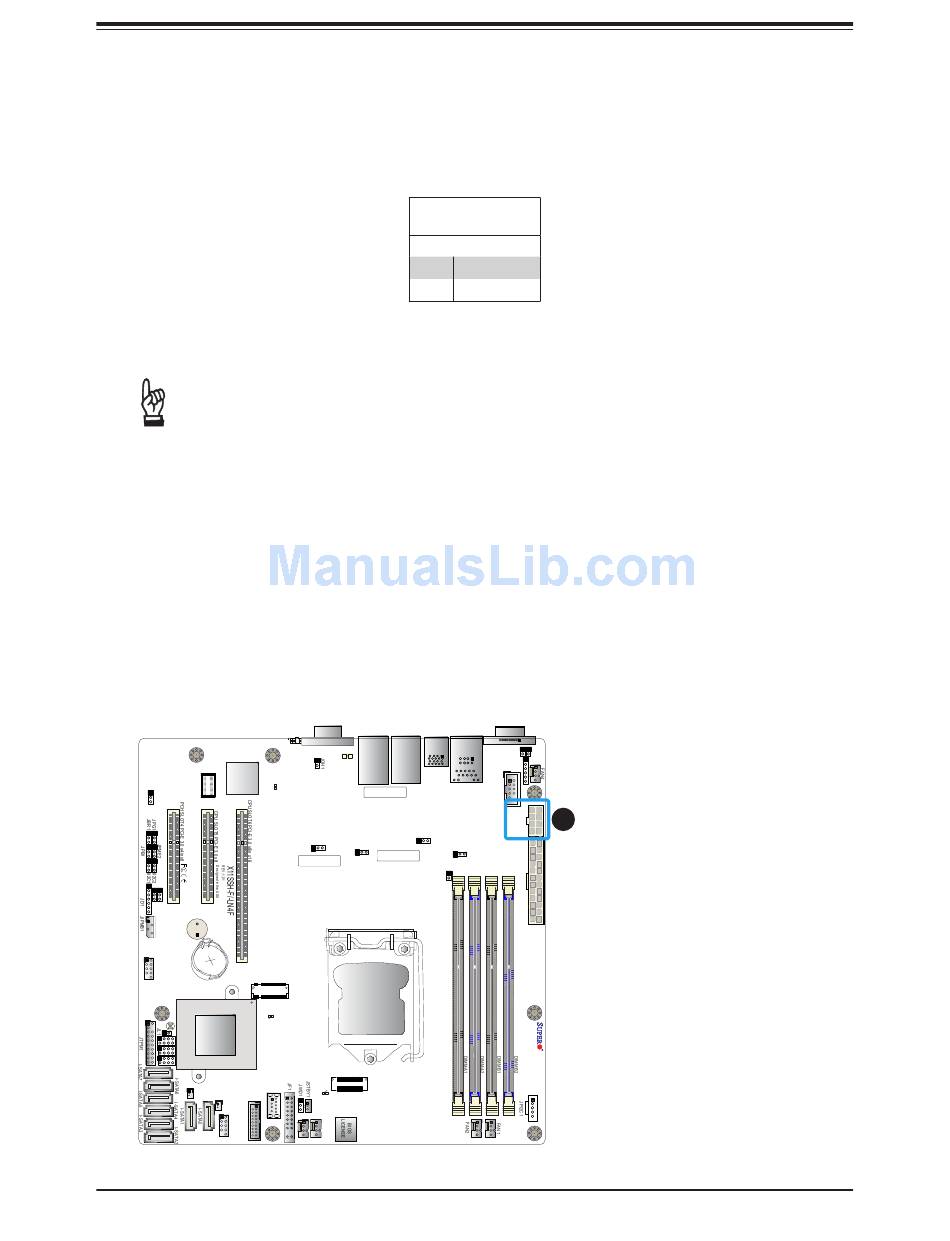

Secondary Power Connector
JPWR2 must also be connected to the power supply. This connector is used to power the
processor(s).
Important: To provide adequate power supply to the motherboard, be sure to connect
the 24-pin ATX PWR and the 8-pin PWR connectors to the power supply. Failure to
do so may void the manufacturer warranty on your power supply and motherboard.
