2.6 Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specifically for use

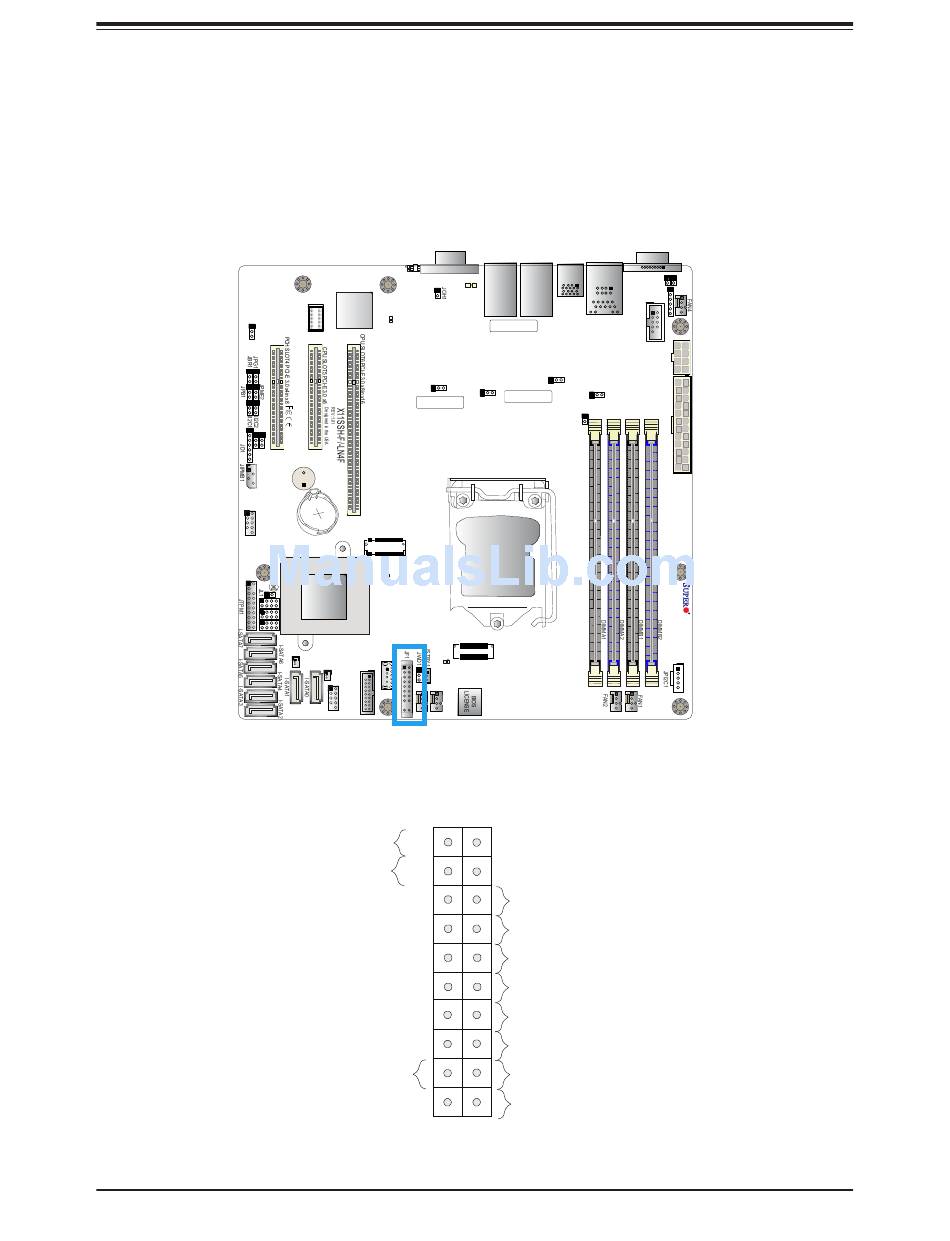

with Supermicro chassis. See the figure below for the descriptions of the front control panel
buttons and LED indicators.
