X11SSH-F/-LN4F User Manual
VGA Port

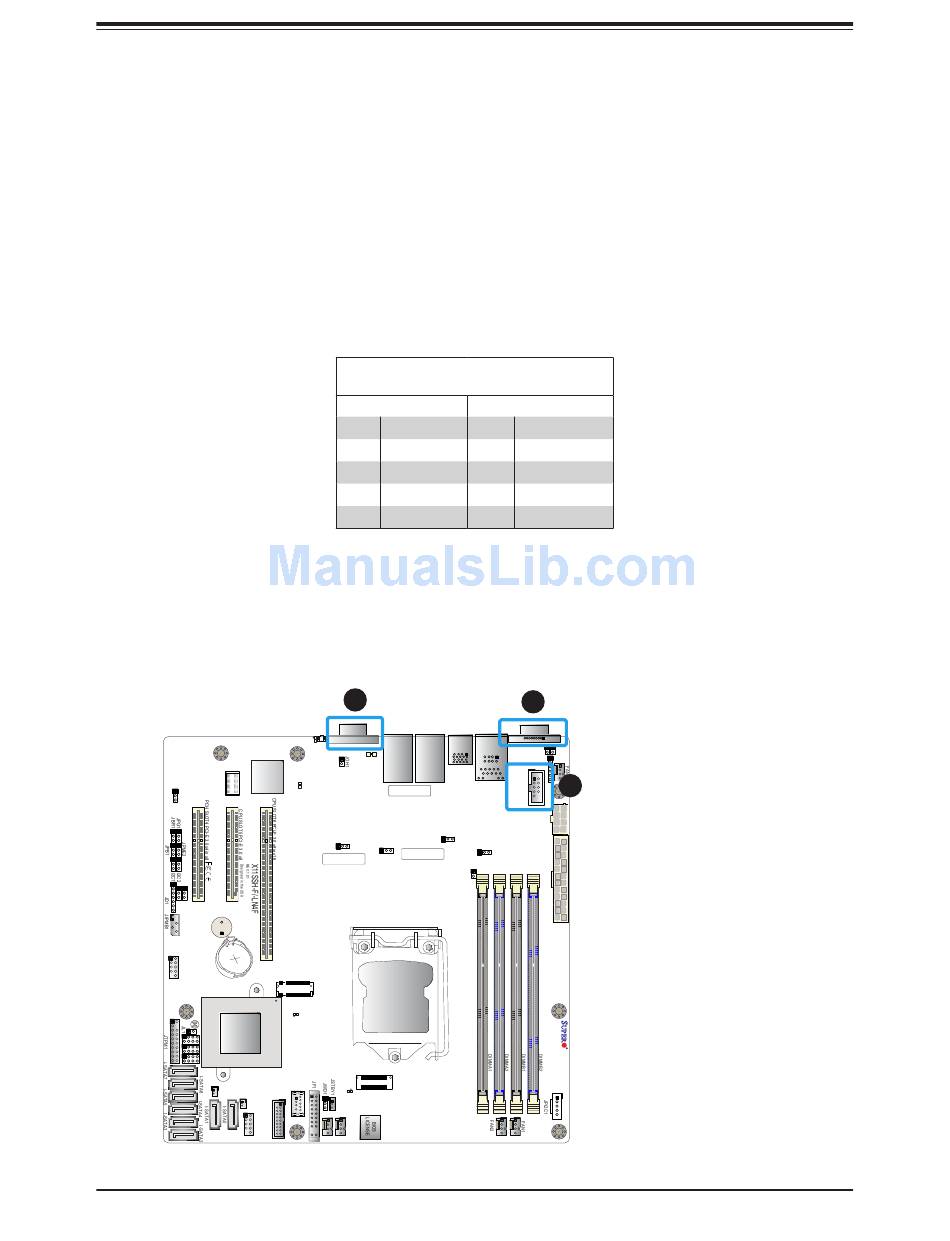

A video (VGA) port is located next to LAN2 on the I/O back panel. Refer to the board layout
below for the location.
Serial Ports
Two COM connections (COM1 & COM2) are located on the motherboard. COM1 is located on
the I/O back panel. COM2 is located next to COM1. See the table below for pin definitions.
BMC
SP1
USB 2/3
BT1
JBT1
Intel PCH
I-SGPIO2
I-SGPIO1
JSD2
USB 8/9
(3.0)
JSD1
USB 4/5
COM Port
Pin Definitions
Pin# Definition
1 DCD
2 RXD
3 TXD
4 DTR
5 Ground
1
VGA
LE1
USB 6/7
LAN 2/4
LAN 1/3
JUIDB1
(3.0)
LED BMC
BAR CODE
JPL3
JPL4
JPL2
MAC CODE
IPMI CODE
J23
CPU
LE3
USB 10
(3.0)
LED PWR
FANA FAN3
36
Pin# Definition
6 DSR
7 RTS
8 CTS
9 RI
10 N/A
2
COM 1
USB 0/1
J7 J8
3
IPMI_LAN
COM2
JPWR2
JPL1
JPWR1
1. VGA Port
2. COM1
3. COM2
