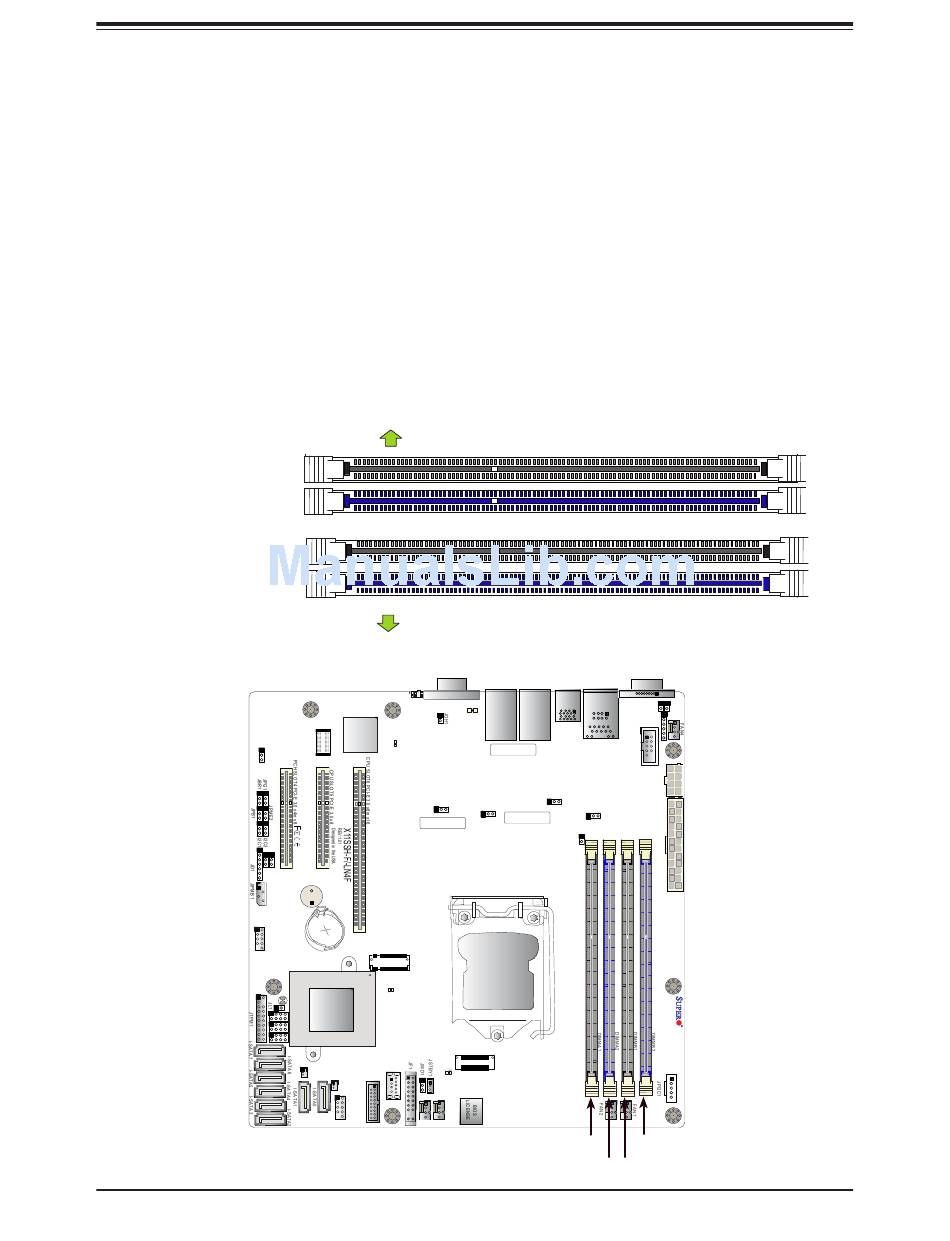

DIMM Module Population Sequence

When installing memory modules, the DIMM slots should be populated in the following order:
DIMMB2, DIMMA2, DIMMB1, DIMMA1.
Always use DDR4 DIMM modules of the same type, size and speed.
Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the
slowest DIMM.
The motherboard will support odd-numbered modules (1 or 3 modules installed). However,
for best memory performance, install DIMM modules in pairs to activate memory interleav-
ing.
DIMMA1
DIMMA2 (Blue Slot)
DIMMB1
DIMMB2 (Blue Slot)
USB 2/3
JBT1
I-SGPIO2
I-SGPIO1
JSD2
Towards the CPU
Towards the edge of the motherboard
VGA
LE1
JUIDB1
BMC
LED BMC
JPL4
JPL2
IPMI CODE
SP1
BT1
J23
LE3
Intel PCH
USB 10
(3.0)
USB 8/9
(3.0)
JSD1
LED PWR
USB 4/5
FANA
FAN3
33
COM 1
USB 6/7
USB 0/1
LAN 2/4
LAN 1/3
(3.0)
J7
J8
IPMI_LAN
COM2
BAR CODE
JPWR2
JPL3
JPL1
MAC CODE
JPWR1
CPU
DIMMB2
DIMMA1
DIMMA2 DIMMB1
Chapter 2: Installation
