X11SSH-F/-LN4F User Manual

2.2 Motherboard Installation

All motherboards have standard mounting holes to fit different types of chassis. Make sure
that the locations of all the mounting holes for both the motherboard and the chassis match.
Although a chassis may have both plastic and metal mounting fasteners, metal ones are
highly recommended because they ground the motherboard to the chassis. Make sure that
the metal standoffs click in or are screwed in tightly.
Philips
Screwdriver
(1)

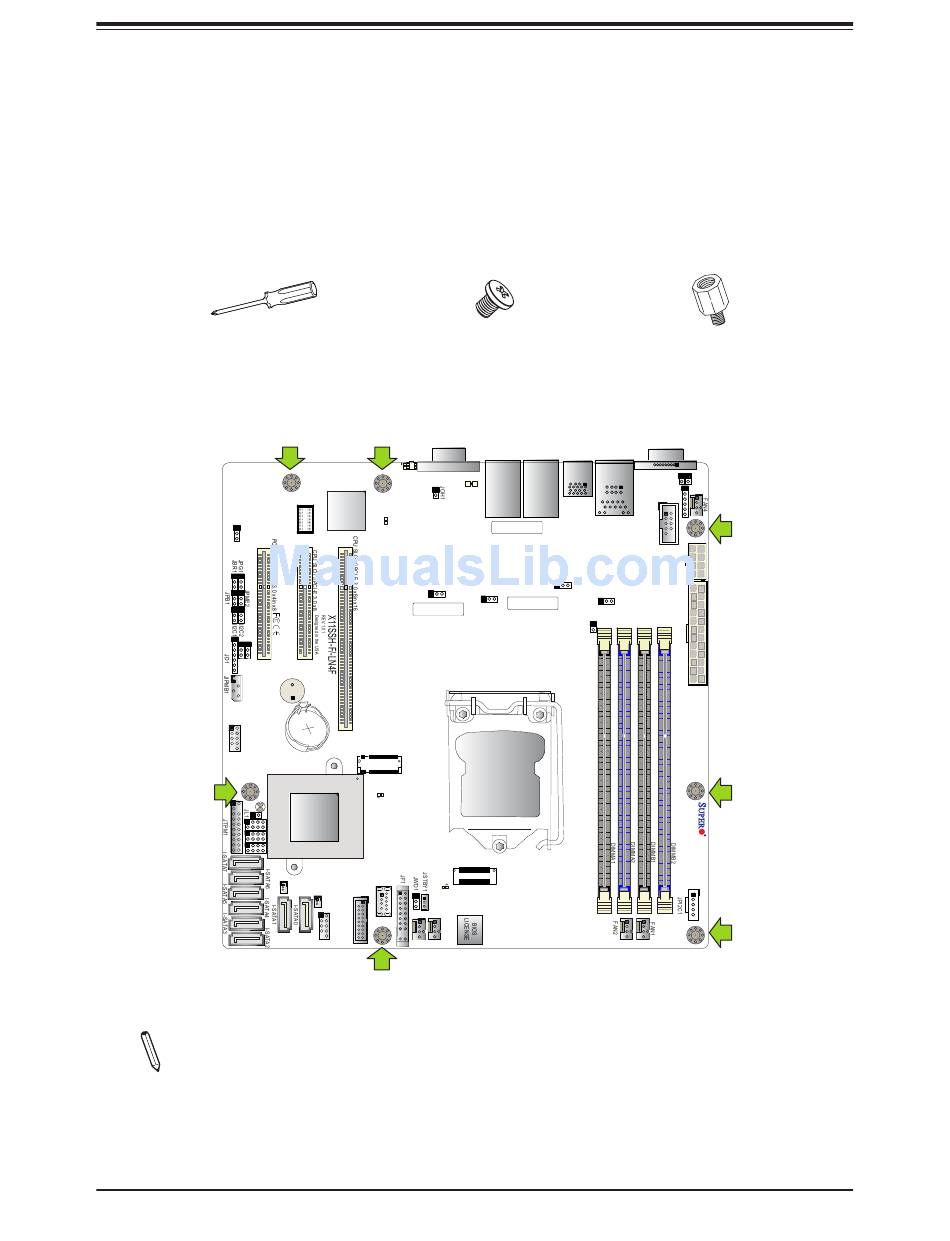

Tools Needed

USB 2/3
JBT1
I-SGPIO2
I-SGPIO1

Location of Mounting Holes

Note: 1) To avoid damaging the motherboard and its components, please do not use
a force greater than 8 lb/inch on each mounting screw during motherboard installation.
2) Some components are very close to the mounting holes. Please take precautionary
measures to avoid damaging these components when installing the motherboard to
the chassis.
Philips Screws
VGA
LE1
JUIDB1
BMC
LED BMC
JPL4
IPMI CODE
SP1
BT1
J23
LE3
Intel PCH
USB 10
JSD2
(3.0)
USB 8/9
(3.0)
JSD1
LED PWR
USB 4/5
FANA FAN3
(7)
USB 6/7
USB 0/1
LAN 2/4
LAN 1/3
(3.0)
IPMI_LAN
COM2
BAR CODE
JPL3
JPL2
JPL1
MAC CODE
CPU
22
Standoffs (7)
Only if Needed
COM 1
J7 J8
JPWR2
JPWR1
