MST MS-01D Pro Manual page 9

u
F4
× 4
避震器筒身
Damper Cylinder
F6
避震軸心
× 4
Piston Rod
F7
× 4
避震調整環
Spring Retainer
F9
× 4
避震器下蓋
Red Guide Cap
F10
× 4
O環墊片
Shaft Guide
F11
× 4
下蓋墊片
Rod Guide
F12
× 4
避震活塞
Piston
F13
× 4
11.5 × 1.5mm O形環
O-ring
F15
× 4
3mm O形環
O-ring
F16
× 8
E2.0 E扣
E-clip
i
F14
× 4
避震氣室
Oil Seal
o
F5
× 4
避震彈簧
Coil Spring
F8
× 4
避震器上蓋
Cylinder Cap
u

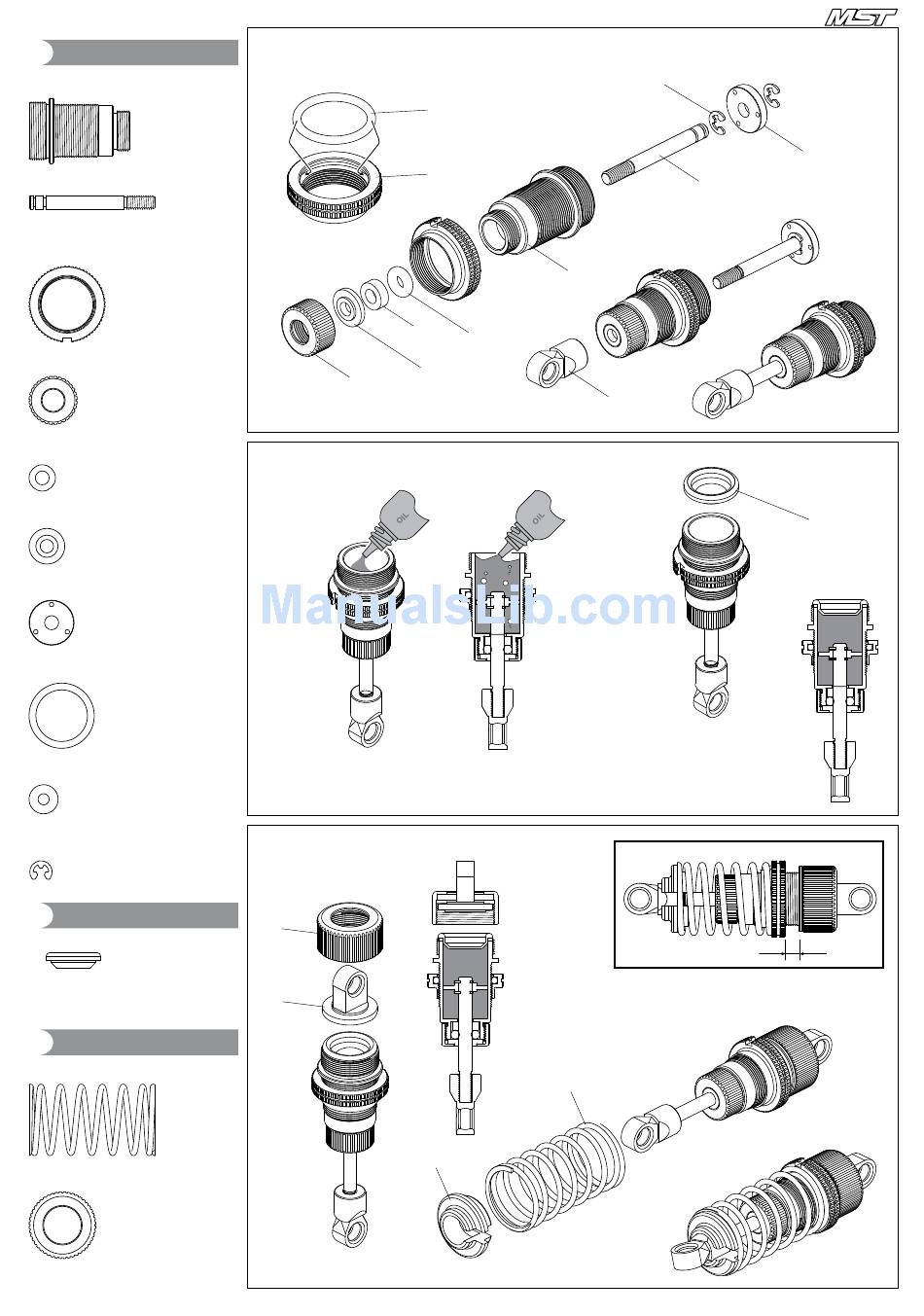

避震器組裝
Damper Assembly
F13
F10
F11
F9
i
避震油組裝
Damper Oil
拉下活塞並填入矽油，緩慢上下移動活塞將氣泡移除
Pull down piston and pour oil into cylinder.
Remove air bubbles by slowly moving piston up and down.
o
避震油組裝
Damper Oil
F8
F1
F2
﹡製作4份
Make 4
11.5 × 1.5mm
F7
F4
F15
3mm
鎖緊上蓋
Tighten Cylinder
Cap
F5
壓縮彈簧以安裝F2
Compress spring to
attach F2
9
F16
E2.0
F6
F3
拉下活塞蓋上氣室，並以面
紙拭去溢出的矽油
Pull down piston, attach oil
seal and absorb oil oilflow
with tissue paper.
以前後車高來調整，預設車高為前5mm / 後6mm
The pre-setting height of chassis is at 5mm(front) /
6mm(rear). It's suggested to adjust the damper
according this value.
F12
F14
MS-01D Pro
