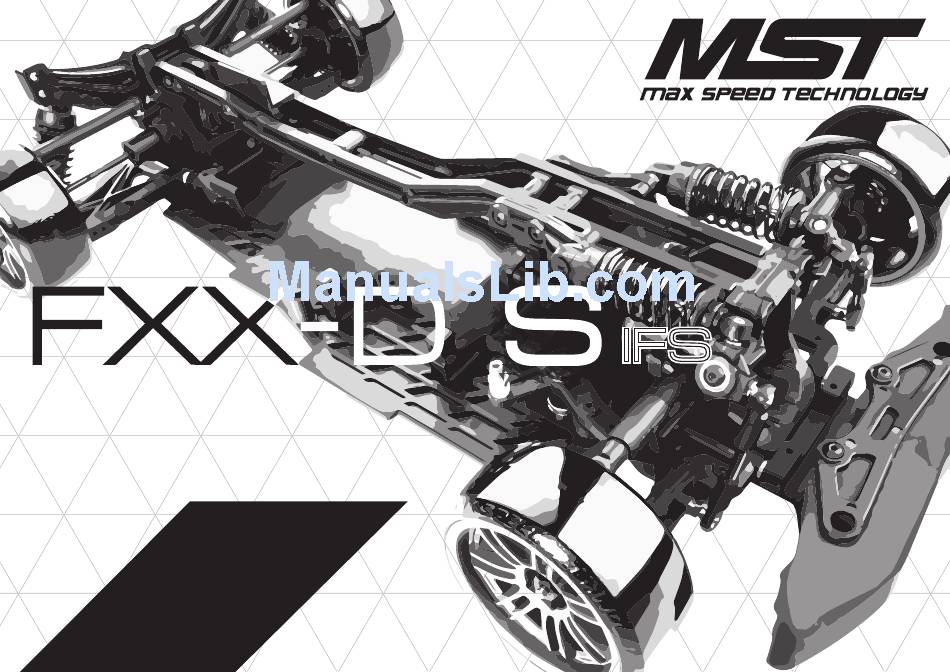

10 DRIFT CHASSIS
/
INSTRUCTION
MANUAL
ON ROAD USE ONLY
FULL BALL BEARINGS
WHEELBASE :
STANDARD 257mm (adjustable)
WIDTH :
STANDARD 190mm (adjustable)
GEAR RATIO :
2.12 (36T/17T)
CASTER :
8 degrees variableness
IFS
IFS
www.rc-mst.com
※SPECIFICATION ARE SUBJECT TO CHANGE WITHOUT NOTICE
