MST MS-01D Pro Manual page 5

9
2.5 × 6mm 半圓頭螺絲
Screw
A15
× 3
2 × 13.8mm 插銷
Shaft
A20
× 1
J5
B1
10 × 15mm
B1
× 2
10 × 15mm 滾珠軸承
Ball Bearing
E5
× 1
直軸C環
Solid Axle C Ring
E8
× 2
金屬接杯環
Joint Ring (Steel)
J5
× 2
皮帶調整環
Belt Tension Adjuster
9

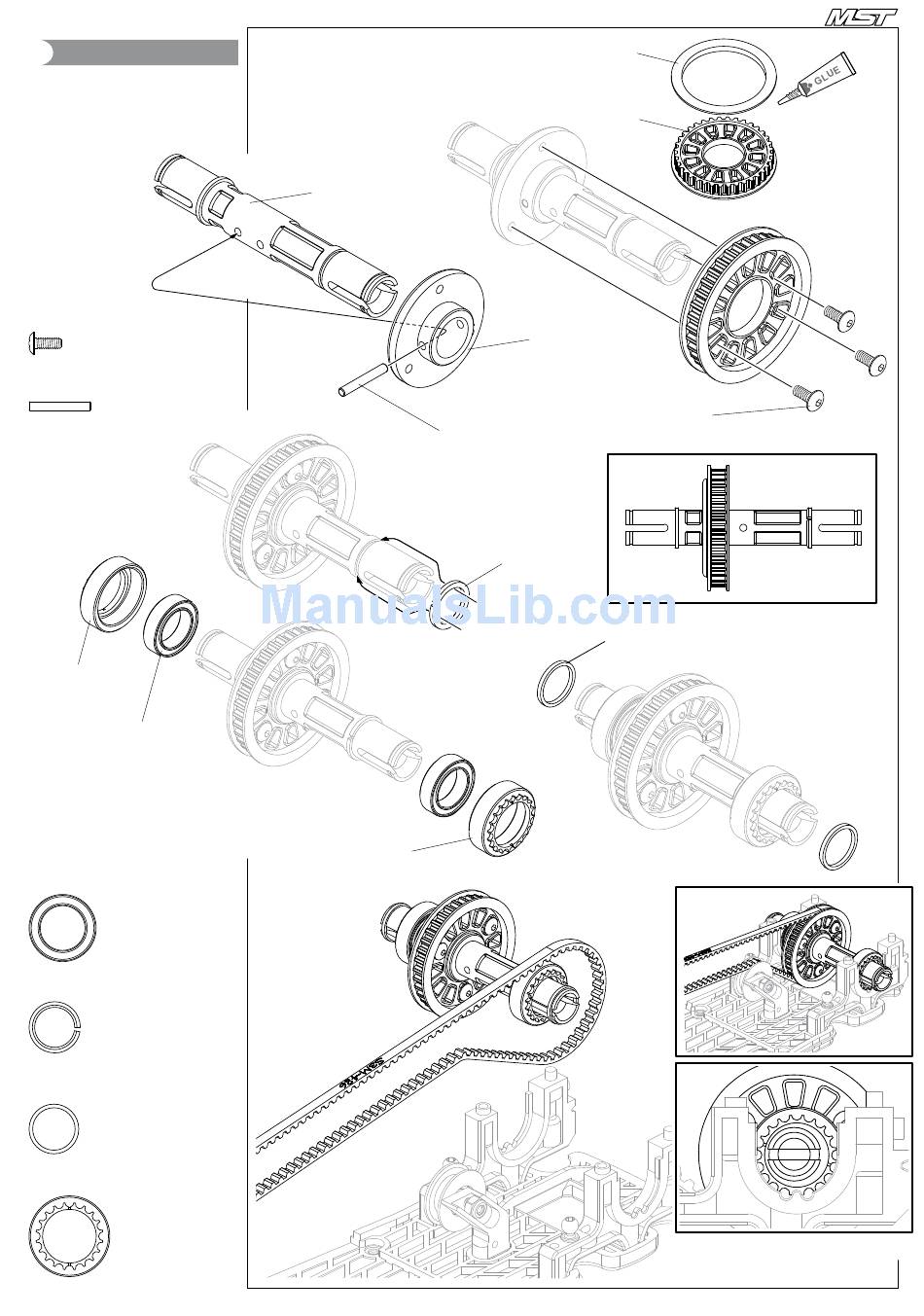

後直軸組
Rear Solid Axle (Spool) Assembly
E7
J5
E2
E6
A20
2 × 13.8mm
E5
E8
5
E3
A15
2.5 × 6mm
請注意J5上缺口的位置。
Attach J5 as shown noting position of
"I" mark.
組裝例
Example
組裝例
Example
組裝例
Example
MS-01D Pro
