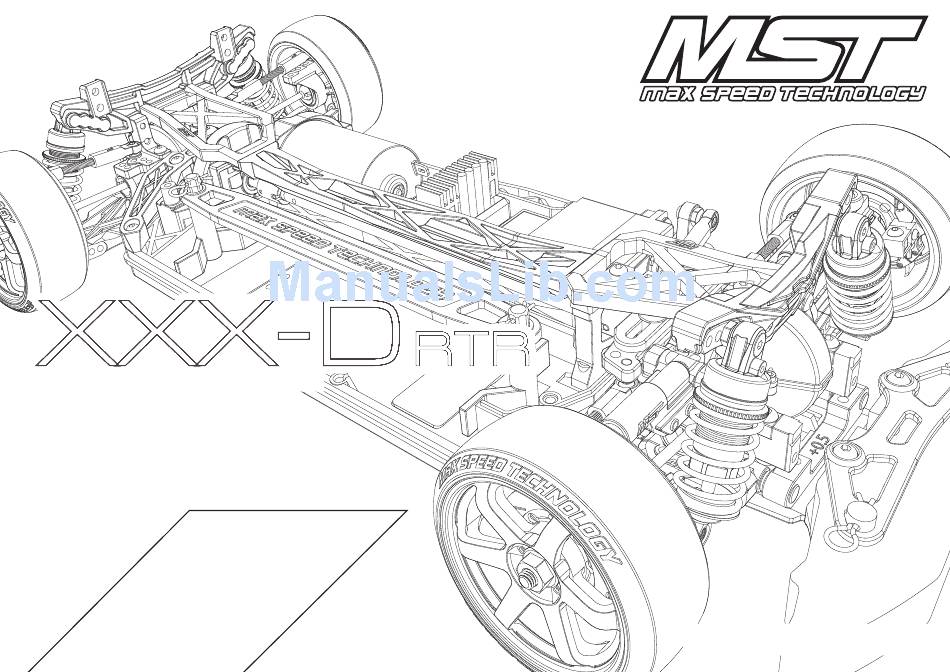

XXX - R
XXX - D
1
10 SCALE RC HIGH PERFORMANCE DRIFT CAR
/
EXPLODED
MANUAL
ON ROAD USE ONLY
FULL BALL BEARINGS
WHEELBASE :
STANDARD 257mm (adjustable)
WIDTH :
STANDARD 190mm (adjustable)
GEAR RATIO :
1.89 (34T/18T)
CASTER :
8 degrees variableness
CAMBER :
0 to -12 degrees
RTR
RTR
www.rc-mst.com
※
SPECIFICATION ARE SUBJECT TO CHANGE WITHOUT NOTICE
Advertisement
Related Manuals for MST XXX-D RTR
Summary of Contents for MST XXX-D RTR
- Page 1 EXPLODED MANUAL ON ROAD USE ONLY FULL BALL BEARINGS WHEELBASE : STANDARD 257mm (adjustable) WIDTH : STANDARD 190mm (adjustable) www.rc-mst.com GEAR RATIO : 1.89 (34T/18T) CASTER : 8 degrees variableness CAMBER : 0 to -12 degrees ※ SPECIFICATION ARE SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 2 XXX - D 10 SCALE RC HIGH PERFORMANCE DRIFT CAR 540 Motor 馬達 Appreciate for your choice of XXX-D RTR! You will be impressed with its performance and beauty. FACTORY Please prepare additional parts as car battery, transmitter battery, and charger. ELECTRONIC Please follow the process for assemble and setting of parts package.
- Page 3 Recommened battery measurement L140 × W48 × H25.4mm (not exceed) ※ 建議安裝長140 × 寬48 × 高25.4mm尺寸以內的電池。 Connect to battery! 連接電池! Please play in safe place after all setting finish. ※ Before playing, please switch on transmitter then on the car. Please switch off reversely. 安裝設定完成後，請於安全場所使用本產品! 使用前請先開啟遙控器電源後再開啟車體電源! 使用後請反向操作關閉! XXX-D RTR...
-
Page 4: Exploded View
XXX - D EXPLODED Please add color remark for part number. Color 顏色 Red 紅 e.g. 210123 R for Red 210123 VIEW 請增加顏色標示在 ( ) 編號 Remark 標示 10 SCALE RC HIGH PERFORMANCE DRIFT CAR 例 : 210123 R for 紅色... - Page 5 120001 310051 310048 210145 210060 110017 310054 120011 210063 W 110017 110017 110029 110061 120001 110003 110017 210054 210063 W 310047 120011 110067 210055 110004 110015 210003 210043 210063 W 210145 210043 110015 310055 210031 210063 W 110012 XXX-D RTR...
- Page 6 10 × 12 × 0 . 3 spacer × 6 Wheel axle × 4 Rod guide × 4 Spring retainer × 4 3 × 7 screw × 1 墊片 萬向接杯 自攻六角沉頭螺絲 3 × 7 避震器下蓋墊片 ( 黑 ) 避震器調整環 820024 310006 210082 310053 110075 XXX-D RTR...
- Page 7 & 拉桿頭 伺服機座 210098 210095 XXX Front damper stay 前避震架 230001 XXX Gear dust cover & brace & 齒箱防塵殼 補強架 210097 XXX Rear damper stay CS - R tire × 4 後避震架 CS - R 甩尾胎 230002 101024 XXX-D RTR...
- Page 8 10 × 15 Ball bearing × 8 Lower arm mount + 2 . 5 × 1 KPI Upright set Bevel gear box set × 2 培林 培林 下擺臂座 + 2 . 5 輪座組 傘齒座組 120007 120001 210086 210060 210041 XXX-D RTR...
- Page 9 Gear holder steering rail set 齒座搖臂滑軌組 210042 Bevel gear set 40 - 16 Wheel hubs w disc shape 傘齒組 ( 40 - 16 Spur gear 48 P - 74 T 210025 碟型六角輪座組 大直齒 48 P - 74 T 210043 210096 XXX-D RTR...
-
Page 10: Setup Sheet
1 2 . Shock oil: Spring color: 1 2 . Alum. spool Alum. center one way Length: Piston: Length: Piston: 1 2 . 1 2 . Spring: Piston hole: Spring: Piston hole: Motor & ESC: ___________________________ Battery: _________________ XXX-D RTR... -
Page 11: Gear Ratio
210025 210035 210036 大直齒 PARTS CODE PINION GEAR 馬達齒 1:1.19 1:1.40 1:1.73 1:2.15 210362 < 1.78 > 1:1.12 1:1.32 1:1.63 1:2.02 210069 < 1.89 > 1:1.18 1:1.45 1:1.80 210034 < 2.12 > 1:1.23 1:1.53 210025 < 2.50 > XXX-D RTR... - Page 12 Flat head screw M 3 X 5 130036 Tools 210069 310032 Diff. screw & spring set Cap screw M 2 . 5 X 30 MST 48 P Pinion gear 21 T Damper cylinder Diff. plate 110005 Countersunk screw M 3 X 8 110053 148021...
