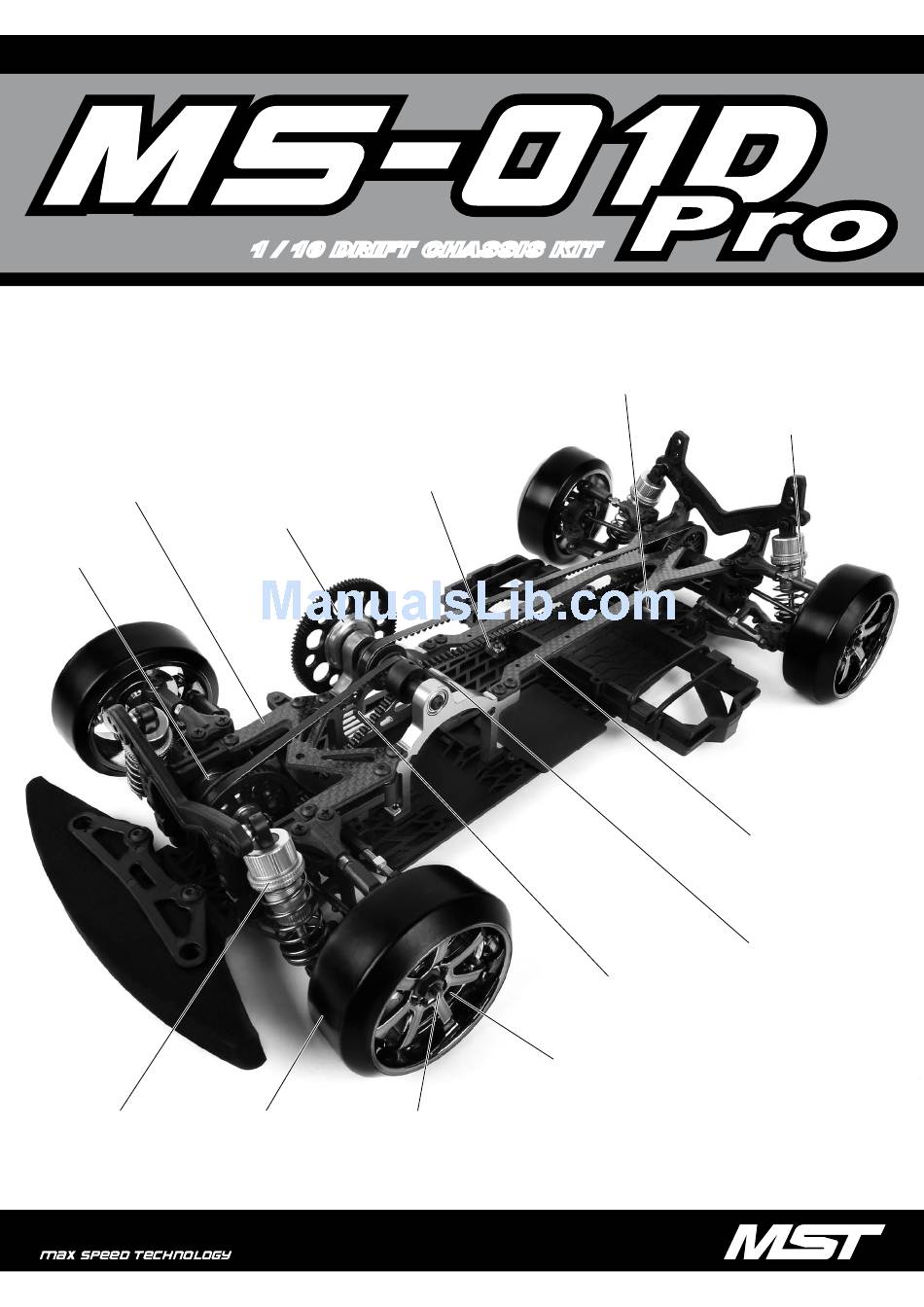

1 / 1 0 S C A L E RC 4 W D H I G H P E R F O R M A N C E D R I F T C A R
MS-01D Pro
ON ROAD USE ONLY
FULL BALL BEARINGS
210125
Carbon Front
Upper Deck
碳纖維二樓板 F
210102
One Way Unit
鋁合金前單向組
210115
Alum Damper Set
鋁合金避震器組
1 / 10 DRIFT CHASSIS KIT
210117 & 210116
Spur Gear Holder & Cover
鋁合金大齒固定板
鋁合金大齒固定座
101005S
Great Angle Tire S
大角度甩尾胎S(軟)
210123
Alum Belt Stabilizer Mount
鋁合金可調後皮帶壓輪座
210101
Alum Servo Mount
鋁合金伺服機座
210145
Brake Calipers
煞車卡鉗
210146
60deg Universal Shaft Set
大角度CVD傳動軸組
210106S & 210107S
F&R Steel Turn-Buckle Shaft
前後鋼製可調拉桿
210126
Carbon Rear Upper Deck
碳纖維二樓板 R
210112
Main Shaft Mount
Supporting Bar
210114
主軸座支撐桿
Alum Motor Heat
Sink Mount
鋁合金馬達散熱固定座
* 210111 CS pulley set (1.51/1.66/1.82) &
210145 Brake calipers are also included.
另附反胎齒比組與煞車卡鉗組。
※ Specifications are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS-01D Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MST MS-01D Pro

  • Page 1 1 / 1 0 S C A L E RC 4 W D H I G H P E R F O R M A N C E D R I F T C A R 1 / 10 DRIFT CHASSIS KIT MS-01D Pro ON ROAD USE ONLY...
  • Page 2 馬達散熱座 × 1 Alum Moter Heat Sink Mount 後側板底盤組合 Attaching Rear Bulkhead 主軸座支撐桿 × 1 Main Shaft Mount Sipporting Bar × 4 3 × 8mm 沉頭螺絲 Screw × 2 3 × 8mm 4.8 × 5mm 球頭 Ball Connector MS-01D Pro...
  • Page 3 Holder Cover 5 × 10mm × 1 3 × 6mm 半圓頭螺絲 Screw × 2 2 × 11.8mm 插銷 5 × 10mm Shaft × 2 5 × 10mm 滾珠軸承 Ball Bearing × 1 3 × 6mm 主軸套管 Center Shaft Spacer MS-01D Pro...
  • Page 4 10 × 15mm One Way Joint × 2 10 × 15mm 滾珠軸承 Ball Bearing 組裝例 Example × 2 皮帶調整環 Belt Tension Adjuster 前皮帶組裝 Attaching Front Belt 組裝例 Example 組裝例 Example 請注意J5上缺口的位置。 Attach J5 as shown noting position of “I” mark. MS-01D Pro...
  • Page 5 10 × 15mm 滾珠軸承 Ball Bearing × 1 直軸C環 組裝例 Solid Axle C Ring Example 組裝例 Example × 2 金屬接杯環 Joint Ring (Steel) × 2 皮帶調整環 請注意J5上缺口的位置。 Belt Tension Adjuster Attach J5 as shown noting position of “I” mark. MS-01D Pro...
  • Page 6 3 × 8mm Alum Steering Post × 3 4.8 × 5mm 球頭 穿過皮帶 Ball Connector T h r o u g h The Belt 3 × 8mm 半圓頭螺絲 Screw × 2 3 × 6mm 半圓頭螺絲 組裝例 Screw Example × 2 MS-01D Pro...
  • Page 7 Screw × 2 後下死點設定 Rear Down Stop 後二樓板組裝 3 × 8mm Attaching Rear Upper Deck 3 × 6mm 3 × 8mm 半圓頭螺絲 Screw × 2 穿過皮帶 3 × 6mm 半圓頭螺絲 Through The Belt Screw × 4 組裝例 Example MS-01D Pro...
  • Page 8 3 × 13mm 扁 頭螺絲 Screw 34.5mm × 4 3 × 13mm 5.8 球 頭 Ball Connector 3 × 20mm × 2 5.8 × 21mm 拉 桿頭 Adjuster 請參考圖示中擺臂上之字樣安裝 Attaching the arms per “A” “B” position as shown MS-01D Pro...
  • Page 9 以前後車高來調整,預設車高為前5mm / 後6mm The pre-setting height of chassis is at 5mm(front) / 6mm(rear). It’s suggested to adjust the damper according this value. × 4 避震彈簧 Coil Spring × 4 避震器上蓋 Cylinder Cap 壓縮彈簧以安裝F2 Compress spring to attach F2 MS-01D Pro...
  • Page 10 3 × 13mm 3 × 11mm 扁 頭螺絲 Screw × 2 × 4 4.8 球 頭 3 × 11mm Ball Connector × 2 3 × 5.5 × 2 鋁 墊片 Alum Spacer 3 × 8mm 3 × 11mm MS-01D Pro...
  • Page 11 5.8 × 21mm 拉 桿頭 Adjuster 3 × 25mm × 2 3 × 25mm 可 調拉桿(鋼) Turn-Buckle Shaft (Steel) × 4 4.8 球 頭 Ball Connector 請參考圖示中擺臂上之字樣安裝 Attaching the arms per “A” “B” position as shown MS-01D Pro...
  • Page 12 3 × 28mm 可 調拉桿 (鋼) Turn-Buckle Shaft (Steel) 14.0mm 後束角拉桿組裝 Rear Toe - in Rod Assembly 6.0mm 3 × 20mm 4.8 × 18mm 拉 桿頭 × 4 Adjuster × 2 3 × 20mm 可 調拉桿 (鋼) Turn-Buckle Shaft (Steel) MS-01D Pro...
  • Page 13 3 × 11mm × 2 4.8 × 5mm 球頭 Ball Connector 3 × 11mm 3 × 11mm × 4 組裝例 3 × 11mm 扁 頭螺絲 Example Screw 3 × 11mm × 4 5.8 球 頭 Ball Connector MS-01D Pro...
  • Page 14 × 2 4.8 × 5mm 球頭 Ball Connector 3 × 11mm 3 × 11mm 3 × 11mm 組裝例 Example × 4 3 × 11mm 扁 頭螺絲 Screw 3 × 11mm × 4 5.8 球 頭 Ball Connector MS-01D Pro...
  • Page 15 Screw × 1 依照伺服機規格挑選適合的螺絲。 Match part with servo. 伺服中立點設定 3 × 6mm 半圓頭螺絲 Attaching the servo as shown 3 × 6mm Screw × 4 4.8 × 5mm 球頭 3 × 10mm Ball Connector 2.6 × 10mm × 1 MS-01D Pro...
  • Page 16 2 × 4mm 2 × 4mm 半圓頭螺絲 Screw × 2 接收機組裝 Attaching Receiver 車體之電子設備請依各廠之說明書安 裝設定,本說明書僅做安裝範例。 This instruction of R/C unit assembly is only for reference. Please follow the instruction manual of R/C unit which is used MS-01D Pro...
  • Page 17 Pinion Gear (Separately Available) * 齒 比計算公式 Formula : 大齒盤齒數 Spur gear teeth × 2.0 : 1 馬達盤齒數 Pinion gear teeth 調整齒輪間隙至運作平順 Adjust the gear clearance * 更多詳細內容請上官網 for running smoothly  More details, please refer to MST website  [ www.rc-mst.com ] MS-01D Pro...
  • Page 18 Turn-Buckle Shaft 前輪組裝 Attaching Front Wheels × 2 M4 突緣螺帽 Flange Nut ※ 輪胎樣式為組裝範例。 Tire type for reference purposes only. 後輪組裝 Attaching Rear Wheels × 2 M4 突緣螺帽 Flange Nut ※ 輪胎樣式為組裝範例。 Tire type for reference purposes only. MS-01D Pro...
  • Page 19 44 × 2.6mm × 2 44 × 2.6mm O形環 O-Ring 44 × 2.6mm Battery 車殼固定座組裝 Attaching Body Mount 2 × 11.8mm 插銷 × 4 Shaft 2 × 11.8mm 2 × 11.8mm 插銷孔位需依照車殼位置 Determine the position of shafts according to body MS-01D Pro...
  • Page 20 Black grease 130008 M3×6 CAP螺絲 ×6 ×2 R-clip Screw 110016 110011 C PARTS 避震油 300# ×1 Damper oil 300# 130009 210002 ×1 130011 工具包 Tools D PARTS ×1 單向組 210102 One way unit ×2 單向接杯 210103 One way joint MS-01D Pro...
  • Page 21 ×4 Shaft guide 210153 下蓋墊片 ×4 Rod guide 210153 J PARTS × 2 避震活塞 210009 ×4 Piston 210152 11.5×1.5 O形環 ×4 O-ring 130002 避震氣室 ×4 Oil seal 130004 3mm O形環 ×4 O-ring 130001 E2.0 E形扣 ×10 E-clip 110013 MS-01D Pro...
  • Page 22 鋼製可調拉桿3×25mm ×4 ×2 Steel Turn-buckle shaft 3×20mm Steel Turn-buckle shaft 3×25mm 210166 210168 N PARTS 210012 M PARTS ×1 210125 碳纖維二樓板 R ×1 ×2 碳纖維二樓板 F Rear upper deck 210126 210183 Front upper deck 轉向支柱 Alum steering post MS-01D Pro...
  • Page 23 Please refer to its assembled instraction (included). 4.8 金屬球頭 ×16 4.8 ball connector 210132 ×1 210155 緩衝器簧圈 (中) (藍) 4.8×5 球頭 ×10 Servo saver spring (M) (blue) 4.8x5 ball connector 310001 ×2 210101 3×5.5×2 鋁墊片 ×4 伺服機座 Alum. spacer 310019 Servo mount 210001 ×1 MS-01D Pro...
  • Page 24 H 部品 210133 5.8金屬球頭 (5) 改裝品編號 130010 MST 貼紙 210142 鋁合金防撞板上蓋 210161 4.8mm 外六角球頭螺帽 (4) 101006S R角度甩尾胎-軟 (4) 130010S MST 貼紙 (銀色) 210143 210162 101007M R角度甩尾胎-中 (4) 鋁合金剎車碟六角輪座組 鋁合金皮帶壓輪座組 210104 前滾珠差速總成 210144 避震彈簧組28mm (4種硬度) 210163 鋁合金六角輪座 (4) 101008SS R角度甩尾胎-超軟 (4) 210108 鋁可調拉桿...
