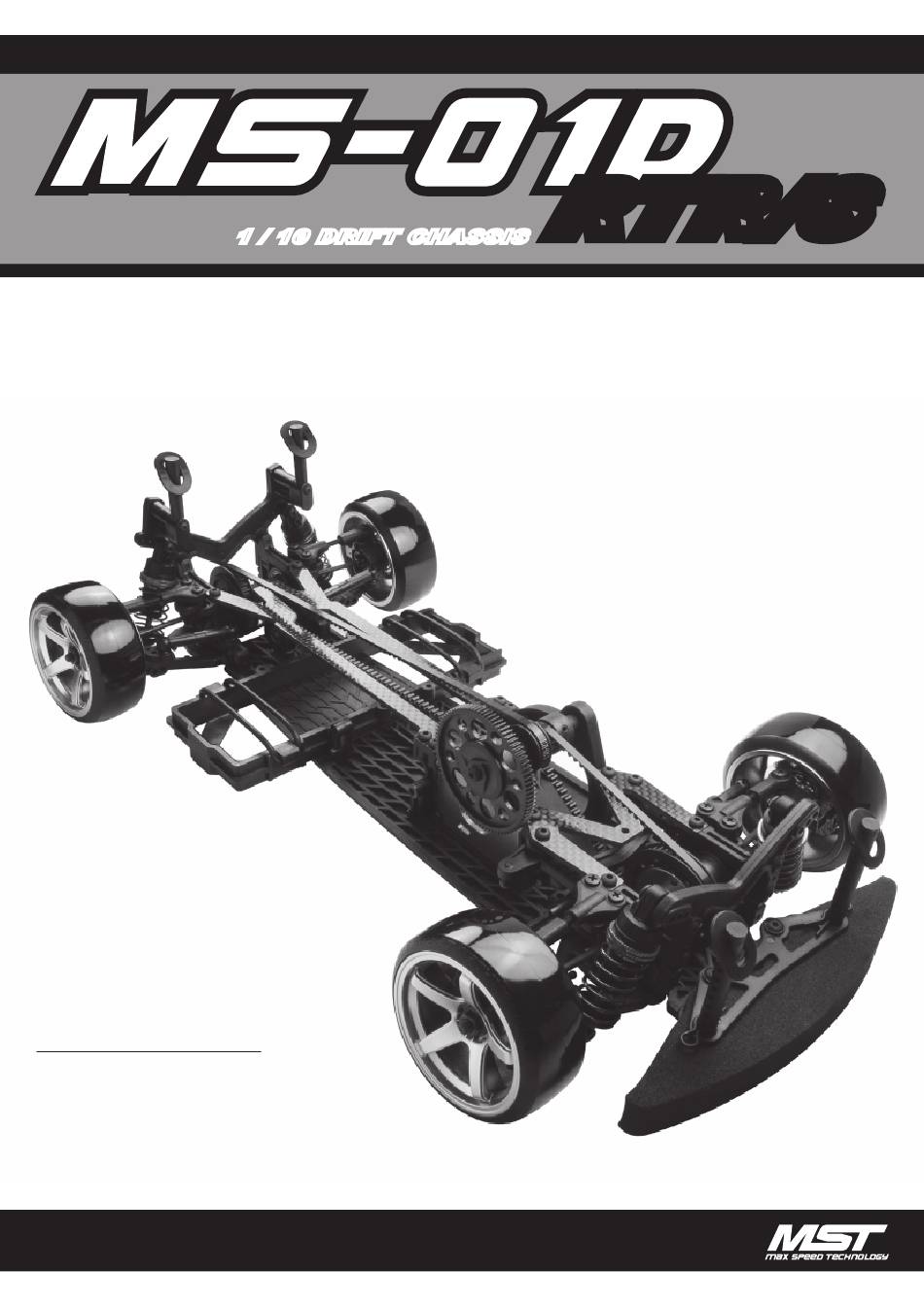

1 / 1 0 S C A L E RC 4 W D H I G H P E R F O R M A N C E D R I F T C A R
MS-01D RTR/S
ON ROAD USE ONLY
FULL BALL BEARINGS
SPECIFICATION
Wheelbase : Standard 257mm (adjustable)
Width :
Standard 186mm (adjustable)
Gear ratio : 2.0 ( 36T/18T )
CS ratio :
1.54 ( 40T/13T )
Caster :
4, 7, 10, 14 degrees variableness
Camber :
0 to -12 degrees
Front :
Alum. one way
Rear :
Spool unit
[ www.rc-mst.com ]
[ facebook.com/MST.tw ]
1 / 10 DRIFT CHASSIS
RTR/S
RTR/S
※ Specification are subject to change without notice.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MST MS-01D RTR/S
Summary of Contents for MST MS-01D RTR/S
- Page 1 1 / 1 0 S C A L E RC 4 W D H I G H P E R F O R M A N C E D R I F T C A R RTR/S RTR/S 1 / 10 DRIFT CHASSIS MS-01D RTR/S ON ROAD USE ONLY FULL BALL BEARINGS SPECIFICATION...
-
Page 2: Steering Rod Assembly
1 / 10 DRIFT CHASSIS Appreciate for your choice of MST MS-01D RTR! You will be impressed with its performance and beauty. Please prepare additional parts as car battery, transmitter battery, and charger. Please follow the process for assemble and setting of parts package. - Page 3 SERVO SAVER ASSEMBLY STEP 3 伺服緩衝組裝 4.5mm Ball connector × 球頭 KO / SANWA FUTABA / SAVOX 25T FUTABA / SAVOX RTR default Match part with servo. Attach as shown with servo in neutral. ※ ※ RTR 預設件 挑選合適的零件安裝。 請於調整伺服中立點後,依圖示安裝緩衝組。 ATTACHING STEERING ROD &...
- Page 4 110001 110025 310001 210010 110026 600002 210013 130006 110048 210032 110019 110019 110002 601003 210020 210010 110006 210007 310009 210007 210111 210111 310002 110001 110035 110003 110001 310010 120002 148026 210010 110001 120002 110029 601001 210003 210006 110001 210010 210283 110002 110012 210183...
- Page 5 210010 210002 210004-1 110019 110002 210009 210004-1 120001 210004-1 110003 110018 210010 210002 210020 210003 110061 110002 210004-1 110010 210057 110012 210005 210003 110013 310008 130032 210005 210009 414486 130001 210284 210005 210009 210161 210057 130002 210006 310004 110032 210005 210006 210144-2 310007...
- Page 6 PARTS 不使用 Not Used M3×14 半圓頭螺絲 ×2 M2.5×14 半圓頭螺絲 ×2 Screw Screw 10×15 滾珠軸承 ×8 110061 110010 Ball bearing 120001 M3×12 半圓頭螺絲 ×3 M2.5×6 半圓頭螺絲 ×14 Screw Screw 110029 110003 5×10 滾珠軸承 ×7 Ball bearing M3×10 半圓頭螺絲 ×1 M2×4 半圓頭螺絲 ×6 120002 Screw Screw...
- Page 7 PARTS 210057 210004 ×2 E 部品 避震器上下蓋組 E parts Damper cap set 210020 210004-1 皮帶齒 18T/36T 直軸組 18T/36T pulley Spool unit 210005 ×2 F 部品 F parts 210007 ×2 H 部品 H parts 210043 210008 ×2 I 部品 碟型六角輪座組 Wheel hubs w/disc shape I parts 210006 ×4...
- Page 8 PARTS 210010 K 部品 K parts 210283 210284 MS 纖維前二樓板 2mm MS 纖維後二樓板 2mm MS Front upper deck (FRP) 2mm MS Rear upper deck (FRP) 2mm 210014 O 部品 O parts 210012 N 部品 N parts 210145R 210032 伺服機舵片組 ( 23T/25T 煞車卡鉗...
- Page 9 PARTS 齒比表 Gear Ratio 大齒盤 馬達齒 齒輪比 Spur Gear Pinion Gear Gear Ratio 避震彈簧28mm (中) ×4 7.33 Coil spring 28mm (medium) 7.04 210144-2 大齒盤 48P-88T ×1 (210013) 6.77 Spur gear 48P-88T (OP.148088) 6.52 210013 6.29 7.74 4.8 外六角球頭螺帽 ×2 7.42 4.8 Ball connector nut 7.12 210161 (OP.148089)
- Page 11 Alum. Motor Heatsink Alum. Separating Spool Unit 鋁合金直輪組 鋁合金馬達散熱片 鋁合金分離式直軸組 210135 210136 210134 Alum. upper bulkhead R/L 鋁合金側板上蓋組 More details,please refer to MST website. 更多詳細內容，請上官網。 Alum. main shaft mount R/L Alum. bulkhead R/L [ www.rc-mst.com ] 鋁合金主軸座組 鋁合金側板組 MS-01D RTR / S...
- Page 12 130032 Damper cap O-ring (10) 210145R Brake calipers-red (4) 601003 RTR servo 110019 Shaft 2×11.8 (5) 148026 MST 48P Pinion gear 26T 210161 4.8 ball connector nut (4) 110023 Set screw M3×16 (6) 210001 Chassis 210183 Alum. steering post (2) 110024 Flat head screw M3×6 (10)
