MST MS-01D Pro Manual page 3

4
A1
× 1
3 × 12mm 半圓頭螺絲
Screw
A6
× 1
3 × 6mm 沉頭螺絲
Screw
A19
× 1
M3 防鬆螺帽
M3 Nut
P12
× 1
後可調皮帶壓輪座
Belt Stabilizer Mount
P13
× 1
後可調皮帶壓輪
Belt Pully
P14
× 1
培林座
Bearing mount
5
A4
× 1
3 × 6mm 半圓頭螺絲
Screw
A21
× 1
2 × 11.8mm 插銷
Shaft
P2
主齒軸
× 1
Direct Center Shaft
P8
× 1
主齒固定座
Spur Gear Holder
P9
× 1
主齒固定板
Spur Gear
Holder Cover
6
A4
× 1
3 × 6mm 半圓頭螺絲
Screw
A21
× 2
2 × 11.8mm 插銷
Shaft
B2
× 2
5 × 10mm 滾珠軸承
Ball Bearing
K5
× 1
主軸套管
Center Shaft Spacer

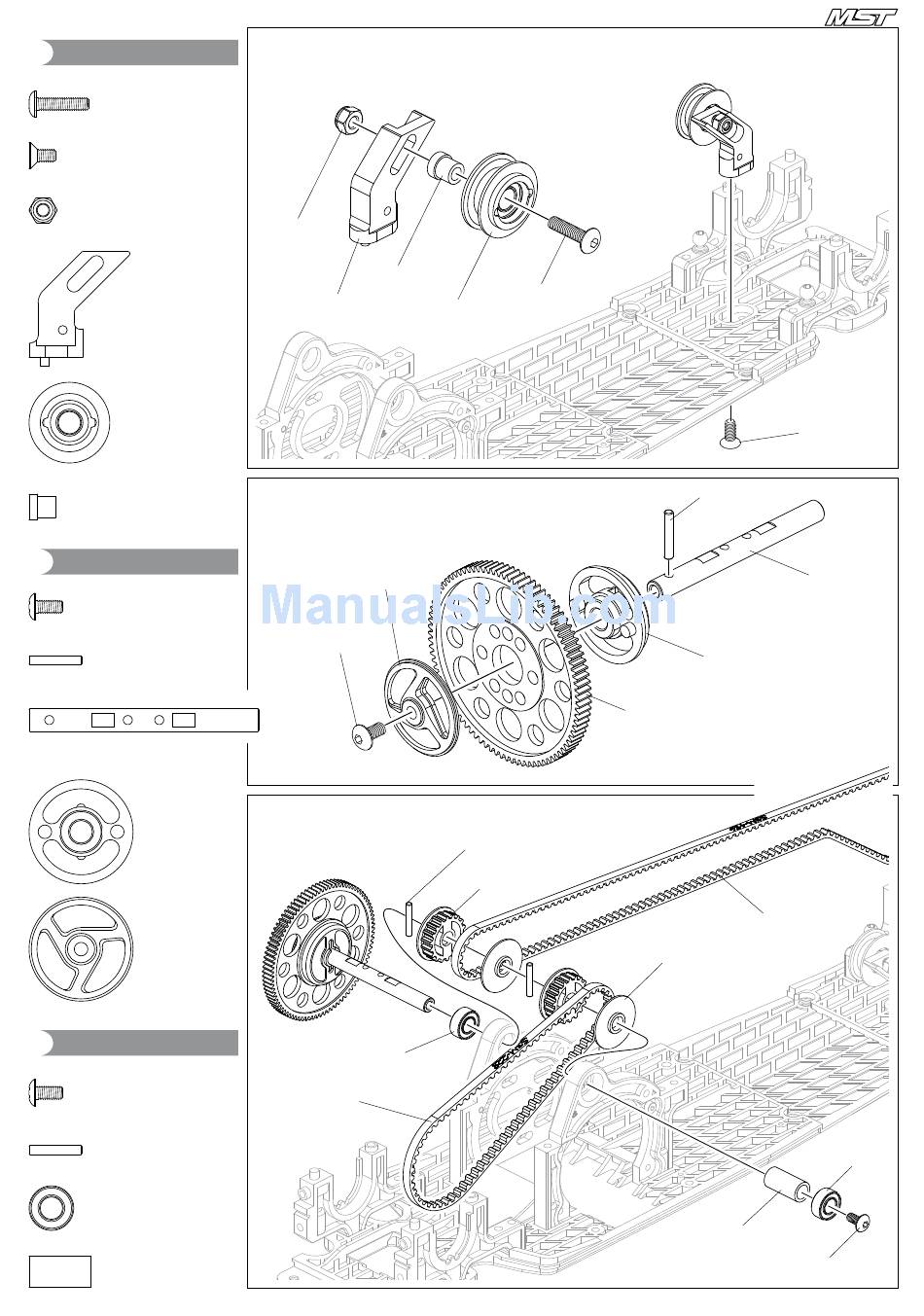

4
後皮帶壓輪組裝
Rear Pulley Assembly
A19
P14
P12
5
主軸齒盤組裝
Main Shaft & Spur Gear Assembly
P9
A4
3 × 6mm
6
主軸底盤組裝
Attaching Main Shaft
B2
5 × 10mm
Q1
228
A1
3 × 12mm
P13
A21
2 × 11.8mm
E4
3
A6
A21
2 × 11.8mm
P8
Q3
88T-48P
Q2
486
E1
K5
A4
3 × 6mm
3 × 6mm
P2
B2
5 × 10mm
MS-01D Pro
