RADIO RECEIVER 433.92 MHZ
RE432TW
INSTALLATION MANUAL
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the re432tw and is the answer not in the manual?

Questions and answers

Summary of Contents for CAME re432tw

  • Page 1 RADIO RECEIVER 433.92 MHZ RE432TW INSTALLATION MANUAL...

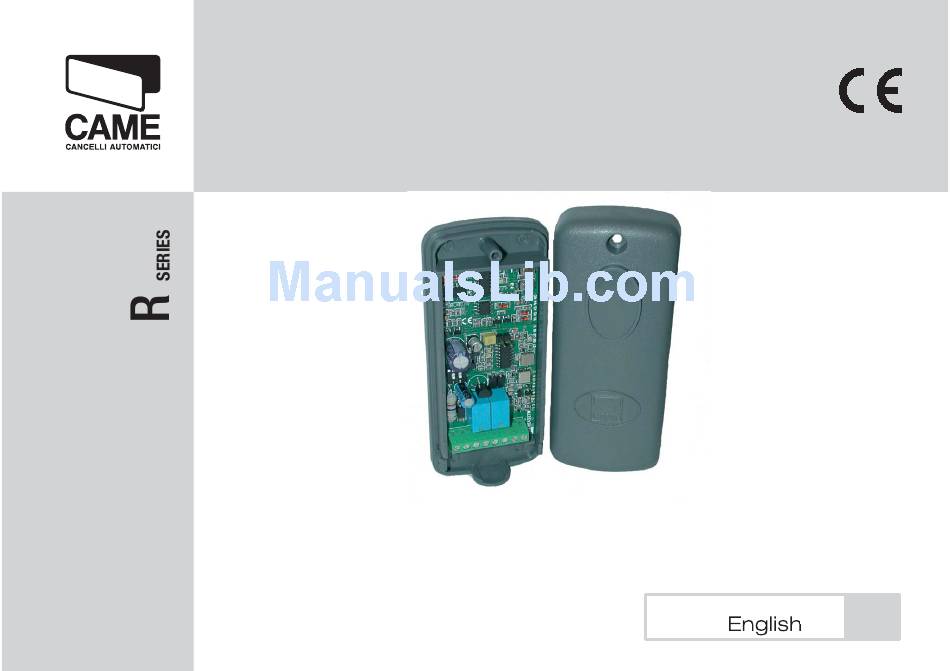

  • Page 2 Description and dimensions Two-channel AM 433.92 MHz receiver, housed in an IP54-level protective case. It works with Came Twin series transmitters with Key-block mode. Both channels function normally in “monostable” mode, but it is possible to select the “bistable” (switch) mode for the 2nd channel.
  • Page 3 24V 12V | OUT1 | OUT2 | command: “monostable” command: always “monostable” command: “bistable” max 1A 24V d.c. resistive load Hereby, Came Cancelli Automatici SpA, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 4 A) Insert the Key-block code on the Twin transmitter. (see instructions on following pages) B) Power up the receiver RE432TW; C) Keep the code-saving key pressed (Fig. 1: the LED indicator will fl ash) and send the code by pressing any transmitter key (Fig. 2: the LED indicator will remain on to indicate that the code has been saved).
  • Page 5 The transmitter allows you to insert a password using the 10-way Dip-switch, to prevent copying of key-block code. This product is engineered and manufactured by CAME CANCELLI AUTOMATICI S.p.A. and is guaranteed 24 months if not tampered with. 1- Signalling LED...
  • Page 6 Key-Block input procedure WARNING!! WITH THIS PROCEDURE ALL THE BUTTONS ARE PROTECTED BY THE KEY-BLOCK MODE. These buttons may not be duplicated onto another transmitter without knowing the pas- sword. Choose the required ON/OFF combination and write it into the apposite grille to save it: (AT LEAST 1 DIP SWITCH ON!) Set the code on the transmitter’s dipswitch...
  • Page 7 Release only button 1: the LED keeps on fl ashing quickly for about 4 s. Once 4 s have elapsed the LED stay on continually – at this point you can also release button 2. The code which has been set using the Dipswitches is now stored in memory.
  • Page 8 Key-Block mode duplication To duplicate the buttons from a TWIN transmitter in Key-Block mode to another TWIN transmitter: 1 - Set the password on the already active transmitter (to allow copying onto the new transmitter). 2 - On the new transmitter press buttons P1 and P2 simultaneously until the LED fl ashes more quickly;...
  • Page 9 Già attivo RESET THE DIPSWITCHES TO OFF!! Always do this procedure for the transmitter to work. Warning!! The code is copied even if the new TWIN is already Key-Block encoded. In this case the procedure simply overwrites the encoding.
