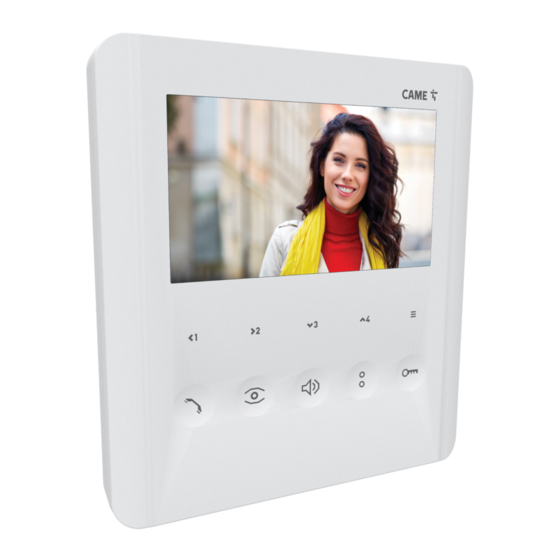

- Page 1 Hands-free internal video receiver FA01622-EN PLX V - PLX V BF USER MANUAL EN English...
-
Page 2: General Precautions
The manufacture date is provided in the production batch printed on the product label. If necessary, contact us at https://www.came.com/global/en/contact-us. The general conditions of sale are given in the offi cial CAME price lists. Function of buttons Press this button to activate and deactivate communication. - Page 3 This button sends a DOOR RELEASE or GATE RELEASE command. To send a GATE RELEASE command to the porter (where the function is enabled), press and hold the button for more than 3 seconds. LED key Flashing: calling On: gate/door open, if correctly confi gured. The door status function is active by default.
-
Page 4: Standard Functions
Standard functions Call in progress. Answer a call. Communication activated. Open the door for the calling entry panel. End the call. -
Page 5: Auto-Connection
Auto-connection Press this button to activate video communication with the entry panel. Where there are multiple entry panels, press this button multiple times to display the entry panels one after the other. ☞ Auto-connection is not possible if the line is busy. If the line is busy, you will hear 3 consecutive beeps. - Page 6 Video toggling In the event of a simultaneous call on several receivers, they will all ring, but the video MASTER SLAVE will only be activated on the receivers confi gured as “MASTER”. MASTER SLAVE Press this button to display the video on a SLAVE receiver.
-
Page 7: Auxiliary Controls
Intercommunication Press the button to select the desired internal receiver. The calling receiver will sound to indicate that the line is free. The called receiver will ring with the chosen ringtone. Press this button on the called receiver to activate audio communication. ☞ During a conversation between internal receivers, a call from an entry panel is signalled on the internal receivers by a beep that repeats every 5 seconds. -
Page 8: Call Forwarding
Call forwarding With a call active, select the internal receiver to which you want to transfer the call. To activate audio communication between two internal receivers, press this button on the called receiver. The entry panel will be put on hold. To allow internal receiver 2 to communicate with the entry panel, press this button on internal receiver... - Page 9 Porter functions These functions are only available if the system has a porter desk. Call notifi cation from the porter When this button LED lights up, this means CONTACT ME the porter would like to be called back. ☞ The LED turns off when communication with the porter starts.
- Page 10 Sending a panic signal to the porter Press and hold this button for 2 seconds to send a PANIC signal to the porter. The white LED indicates that the signal has been received by the porter. PANIC! Alarm signal If an alarm contact connected to the relevant receiver entrance is activated, a signal is sent to the porter and an intermittent acoustic signal sounds on the...
- Page 11 Door status function The LED next to this button indicates the current door status. ☞ The system must be correctly set up. ☞ The function is active during the steps that involve communicating with the entry panel and the signal refers to the entrance associated with the entry panel.
- Page 12 Programming the melody associated with a call from the entry panel Press this button to listen to the melodies in sequence. Press this button to select the melody and exit programming. Press this button to select the melody and continue programming.
- Page 13 Programming the melody associated with a call from the landing. Press this button to listen to the melodies in sequence. Press this button to select the melody and exit programming. Press this button to select the melody and continue programming.
- Page 14 Programming the number of rings per call. Press this button as many times as the number of rings you want (from 1 to 12 rings). Three seconds after the key was last pressed, the selected call is played back with the chosen number of rings. Press this button to exit programming.
-
Page 15: Cleaning The Device
These buttons are used to adjust the brightness, contrast and colour of the display when the video is active. Press this button to open or close the menu. These buttons are used to set the parameter. Press and hold these buttons to skip and speed up parameter setting. - Page 16 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941 info@came.com - www.came.com...
