FA01357-EN
EXTERNAL RADIOCOMMAND-RECEIVERS
INSTALLATION MANUAL
RBE4230 - RBE4024
EN English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBE4230 and is the answer not in the manual?

Questions and answers

Related Manuals for CAME RBE4230

Summary of Contents for CAME RBE4230

  • Page 1 FA01357-EN EXTERNAL RADIOCOMMAND-RECEIVERS INSTALLATION MANUAL RBE4230 - RBE4024 EN English...
  • Page 2 It features a four-digit display and a Memory Roll card for storing and saving data. You can remotely program and control the system: via the CRP, or, from a PC USB port, or by downloading free RBE-software from www.came.com. Transmitter compatibility table:...

  • Page 3: Technical Data

    Technical data Type RBE4024 RBE4230 Protection rating (IP) Power supply (V) 24 AC/DC 120 - 230 AC Frequency (Hz) 50/60 Stand-by consumption (W) 0.43 0.67 - 0.8 Maximum power (W) 3 - 3.2 Relay contact rating - resistive load cosφ=1 (A/V)

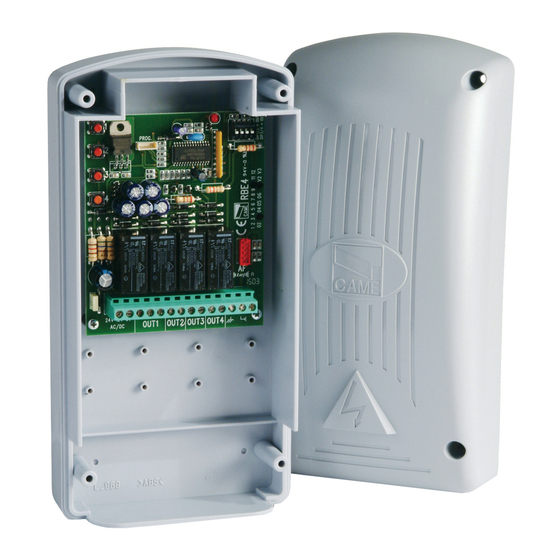

  • Page 4: Board Description

    SIPA06 CLOCK control-card connector 12. Terminals for connecting devices to govern RSE card connector 13. Control board power-supply terminals AF/R700/R800 card connector 14. Fuse case CRP connection terminals 15. Transformer (only RBE4230) Antenna connection terminals 16. Memory Roll card connector...

  • Page 5: Preliminary Checks

    GENERAL INSTALLATION INDICATIONS ⚠ Only skilled, qualifi ed staff must install this product. ⚠ Warning! Before working on the control panel, cut off the main current supply and, if present, remove any batteries. Preliminary checks ⚠ Before installing the control panel, do the following: make sure the fastening points and the anchoring surface are solid and protected from impacts.

  • Page 6: Antenna Connection

    Once the code-copying procedure is completed, the Memory Roll card must be removed. CRP connection with RSE card Fit the RSE card. Connect to a CAME device running the CRP* (Ca- meConnect System), as illustrated for the RS485 connection UTP CAT5 cable A <—>...

  • Page 7: Keypad Connection

    Transponder connection Fit the R700 card. Connect the transponder sensor or the preferred card reader, while respecting the color code. Two transponders connected in parallel, maximum. Black Keypad connection Fit the R800 card. Connect the preferred keypad, while respecting the color code. Five keypads connected in parallel, maximum.
  • Page 8 PROGRAMMING The key is • entering the programming • entering single menus • confirming/saving the values you have set The keys are for • moving from one item to another • increasing or decreasing values The key is for exiting the menus without saving any changes Menu map OUT1 command mode...
  • Page 9 Function Descripton ( the default values appear with a black backdrop ) OUT4 command duration. See [ F 6 ]. CRP address. Assigning a univocal logic address for managing the receiver via CRP. F 10 [ …… ] window RS485 serial bus speed. To set the speed on the COM port. F 11 [ ] window 1200 Baud;...
  • Page 10 F 12 - Setting the Clock f 1 2 • Enter the programming, select Setting the Clock [F12] and then [1]. • They will appear sequentially and flashing ( / to vary, to confirm): 2 0 1 6 the year ( ), the month ( ), the day ( ), the day of the week (...
  • Page 11 U 1 - Store Users (max. 3,000) Storing a user transmitter is always associated to a control mode (see funtions [F 2]/[F 3]/[F 4]/[F 5]). Remove the Memory Roll card, before proceeding. • Enter the programming, select Store Users [U1]. •...
  • Page 12 Whereas other components (control boards, batteries, transmitters, and so on) may contain hazardous pollutants. These must therefore be disposed of by authorized, certifi ed professional services. DISPOSE OF RESPONSIBLY! REFERENCE REGULATIONS CAME SpA declares that this product complies with the current directives at the time it is manufactured.
  • Page 13 List of registered users 1/..
  • Page 14 List of registered users 2/..13 131 13 134 13 136 13 138 13 139 14 141 14 143 10 100 14 144 10 102 14 146 10 104 14 148 14 149 10 107 15 151 10 109 11 112 15 156 11 114 11 117...
  • Page 15 List of registered users ../..
  • Page 16 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
