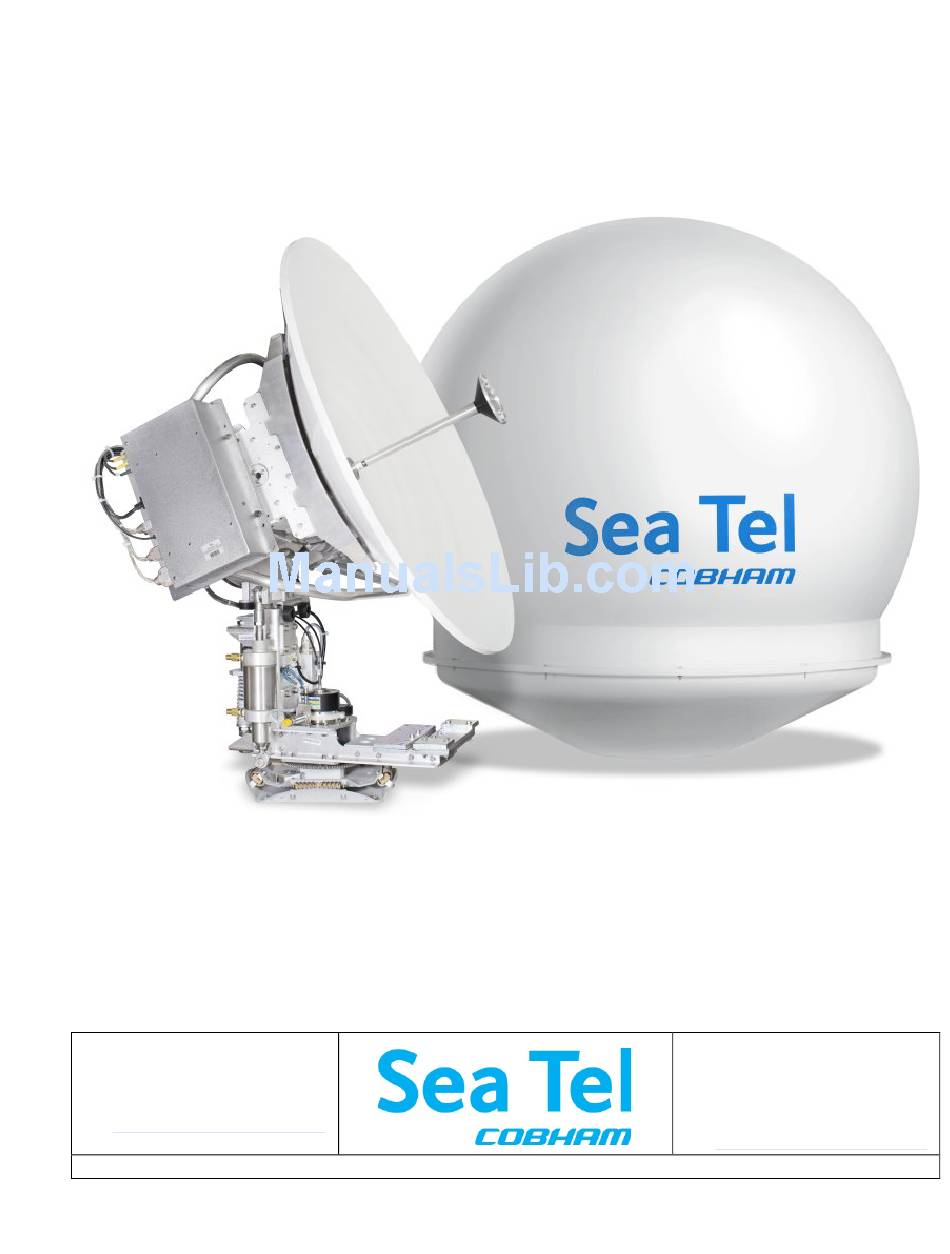

Page 1 Southampton, UK S0 18 2HJ Fax: (925) 798-7986 Tel: 44 (0)23 80 671155 Web: http://www.cobham.com/seatel Fax: 44 (0)23 80 671166 Web: http://www.cobham.com/seatel Sea Tel Inc is also doing business as Cobham SATCOM - Maritime November 5, 2013 Document. No. 136879 Revision B...
Page 2 Copyright © 2012 Sea Tel Inc All Rights Reserved. The information contained in this document is proprietary to Sea Tel, Inc.. This document may not be reproduced or distributed in any form without prior written consent of Sea Tel, Inc. The information in this document is subject to change without notice.
Page 3 F: +1 (925) 798-7986 R&TTE Declaration of Conformity Sea Tel Inc. declares under our sole responsibility that the products identified below are in compliance with the requirements of: DIRECTIVE 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on Radio equipment and Telecommunication Terminal Equipment and the mutual recognition of their conformity.
Page 4 2009 version of FCC 47 C.F.R. § 25.222. Sea Tel hereby declares that the antennas listed below will meet the off-axis EIRP spectral density requirements of § 25.222 (a)(1)(i) with an N value of 1, when the following Input Power spectral density limitations are met: *0.6 Meter Ku Band, Models 2406 and USAT-24 are limited to...
Page 5: Table Of Contents
............................3-11 ONNECTING THE ELOW ECKS QUIPMENT 3.7.1. Connecting the ADE AC Power Cable .......................... 3-11 3.7.2. Connecting the BDE AC Power Cables ........................3-11 Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 6 14. QUICK START OPERATION ................................14-1 14.1. I : ....................14-1 F SATELLITE SIGNAL IS FOUND NETWORK LOCK IS ACHIEVED 14.2. I : .................................... 14-1 F NO SIGNAL IS FOUND Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 7 19.1.2. Cable Inspections ................................... 19-1 19.1.3. Wire-Rope Isolator Inspections ............................19-2 19.1.4. Azimuth Drive Component Inspections ........................19-2 19.1.5. Home Switch Sensor Inspection ............................ 19-3 Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 8 NCODER 20.7.1. Theory of Operation: ................................20-17 20.7.2. Verify Initialization: ................................20-18 20.7.3. MDE Status LEDs: ................................. 20-18 20.7.4. Test the Motor: ..................................20-18 Document. No. 136879 Revision B viii Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 9 21.4.7. Replacing the EL Motor: ..............................21-16 21.4.8. Replacing Elevation Drive Belt ............................21-17 21.4.9. Replacing the CL Motor: ..............................21-19 21.4.10. Replacing Cross-Level Drive Belt ..........................21-21 Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 10 ........................................23-11 ABLES 23.4.1. Antenna L-Band IF Coax Cables (Customer Furnished) .................. 23-11 24. DRAWINGS ........................................24-1 24.1. 4012 GX K ..........................24-1 ODEL PECIFIC RAWINGS Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 11: Gx System Configuration(S)
The arbitrator panel provides a logic latch to prevent excess switching when the ship heading is yawing where the antenna to be repeatedly blocked – unblocked – blocked. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 12: Open Antenna-Modem Interface Protocol (Openamip™) Specification
“W 300” Sets GPS Update period in seconds (0 = Off) I s1 s2 Set modem vendor (s1) and device (s2) 2 parameters: “I iDirect 5100” Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 13 Set GPS Position: 4 parameters: “w 1 38.222 122.123 0” b1 is validity flag, f1 is latitude, f2 is longitude, and t1 is timestamp Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 14 4012 GX Dealer Technical Manual 4012 GX System Configuration(s) This Page Intentionally Left Blank Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 15: Site Survey
Wire rope stays, lifelines, small diameter handrails and other accessories may pass through the beam path in limited numbers; however, even these relatively insignificant shadows can produce measurable signal loss at these frequencies. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 16: Mounting Foundation
All welding should be full penetration welds –V-groove welds with additional fillet welds – with throats equivalent to the thickness of the thinnest base material. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 17: Mounting Height
2.5. Mast Configurations Sea Tel recommends mounting the ADE in a location that has both a clear line-of-sight to the target satellites in all potential azimuth/elevation ranges and sufficient support against vibration excitement. If possible, mounting the ADE pedestal directly to ship deckhouse structures or other box stiffened structures is preferred. However, in many cases, this imposes limits on the antenna system’s clear line-of-sight.
Page 18: Vertical Masts
As with all mast designs discussed so far, mounting the antenna in line with the vertical Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 19: Truss Mast
For every 100 kilograms of ADE weight over 250 kilograms, the depth of the platform stiffeners should be increased by 50 millimeters and thickness by 2 millimeters. Sea Tel does not have a recommended arrangement for a truss mast – the variability of truss mast designs means that each installation needs to be evaluated separately.
Page 20: Ade/Bde Coaxial Cables
You only need 2-wire for NMEA signal, 4-wire for Step-By-Step and 5-wire for Synchro … always use shielded cable. Be cautious of length and gauge of the run for voltage loss issues. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 21: Grounding
Masts should be confirmed to be grounded to the deckhouse or hull. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 22 4012 GX Dealer Technical Manual Site Survey This Page Intentionally Left Blank Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 23: Installation
Always ensure that tag lines, attached to the radome base frame, are attended while hoisting the antenna assembly to its assigned location aboard ship. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 24: Installing The Ade
(Hardware provided in the radome installation kit). Keep the original perimeter bolt hardware to be re- installed after the ADE has been installed. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 25: Installing The 61" Radome Assembly
Using Loctite 271, install the four mounting bolts (provided in radome mounting kit) into the radome base. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 26 (provided in the radome installation kit), from the underside of the mounting surface, to affix the radome to the mounting surface. Tighten to torque spec. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 27 When compressed the block should provide clamping force on the cable and prevent it from moving in the block. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 28: Grounding The Pedestal
Braid is the conductor of choice where flexibility is required. Sea Tel uses braid to cross axes of the antenna pedestal and to connect various subassemblies together.
Page 29: Removing The Shipping/Stow Restraints Prior To Power-Up
(as shown). To un-stow the antenna, remove the pin bolt from the LOCK position. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 30: Removing The El Shipping/Stow Restraint
EL Stow Pin-Bolt head Bracket 2 Hex Nuts Pin inserted into Elevation Driven Sprocket Elevation Driven Sprocket Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 31 Put one of the washers onto the stow pin-bolt and insert it into the bracket toward the elevation driven sprocket. Put the other washer, and then the other hex nut onto the bolt. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 32: Removing The Cl Shipping/Stow Restraint
(either end of the bar). Remove the bottom nut off of that adjustable bumper. Remove the adjustable bumper from the locking bar. Document. No. 136879 Revision B 3-10 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 33: Installing The Below Decks Equipment
Assure that the Gyro Compass output is turned OFF when handling and connecting wiring to the MXP. CAUTION - Allow only an authorized dealer to install or service the Sea Tel System components. Unauthorized installation or service can be dangerous and may invalidate the warranty.
Page 34 Pin 3 Synchro S1 / SBS A Pin 4 Synchro S2 / SBS B Pin 5 Synchro S3 / SBS C Pin 6 SBS COM Document. No. 136879 Revision B 3-12 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 35 J14 Aux 232 Wiring is: Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin6 Pin 7 Pin 8 Pin 9 +12 VDC Document. No. 136879 Revision B 3-13 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 36: Other Bde Connections
It is strongly recommended that you down, and save, the system INI file (contains all of the system parameters). Save this file in a convenient location. Document. No. 136879 Revision B 3-14 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 37: Configuring A Computer For The Mxp
Connect a LAN cable to the back of your computer. Connect the other end of the LAN cable to the back of the MXP. Power on the MXP. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 38 Configuring a Computer for the MXP From your computer desktop, click the Control Panel button. Click on “View network status and tasks”. Click “Change adapter settings”. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 39 Configuring a Computer for the MXP 4012 GX Dealer Technical Manual Click on “Local Area Connection.” Click on “Properties”. Click on “Internet Protocol Version 4 (IPv4)”. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 40 MXP, which is “10.1.1.100” (default). 12. On the second line, enter Subnet Mask of “255.255.255.0”. 13. Then click the “OK” button. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 41 14. Back at the Local Area Connection Properties screen, click the “OK” button. 15. Click the “Close” button. 16. Close the Control Panel. 17. Open your browser, and enter the URL: “10.1.1.100”. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 42 User name and password are case sensitive. Dealer password seatel3 SysAdmin password seatel2 User password seatel1 19. After you log in you will see the System Status screen Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 43: Setup - Using The Commission Wizard
To begin, log in as dealer, and select Wizard – Commission from the left side of the page: Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 44: Commissioning Wizard
The Gyro section allows you to define that type of Gyro Compass (if any) integrated with the MXP. For more information, refer to the Setup – Ship’s Gyro Compass chapter. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 45 The Modem section allows you to define the satellite modem “Type” and “I/O”. For more information, refer to the Configuring The Satellite Modem Interface chapter. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 46 The Blockage Zones section allows you to define known vessel structural blockages and/or radiation hazard zones. For more information, refer to the Setup – Blockage & RF Radiation Hazard Zones chapter. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 47  Using the mutually exclusive radio buttons, define whether to use the Xpol or CoPol LNB for tracking purposes. 19. Click on “Next”. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 48 The wizard will calculate the required Threshold Offset parameter value used for setting the actual AGC threshold. Once calculated, the wizard will save the Threshold Offset parameter to the systems INI file. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 49 28. Click on “Finish”. This will take you back to the System Configuration screen. Once there, you may continue to use the system in normal operation. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 50 4012 GX Dealer Technical Manual Setup – Using the Commission Wizard This Page Intentionally Left Blank Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 51: Setup - Ship's Gyro Compass
If there is NO Gyro Compass (ie on a large stationary rig which is anchored to the ocean floor) set the GYRO TYPE parameter to “No Gyro” or to “Fixed”. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 52 Turn on SAT REF Mode. (It must be turned on.) This combination of settings will cause “No Gyro” Search pattern to be used to find the desired satellite (refer to the setup – Searching). Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 53: Setup - Tracking Receiver - Vsat
SKEW is used to optimize the polarization of the feed to the desired satellite signal. It is entered when a known satellite is skewed. Use Polang to peak the polarity. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 54 4012 GX Dealer Technical Manual Setup – Tracking Receiver – VSAT This Page Intentionally Left Blank Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 55: Setup - Home Flag Offset (Ima Software 1.04 Or Lesser)
If it is NOT close (stops before the bow or continues to drive Figure 8-1 Antenna stops In-line with Bow past the bow) Sea Tel recommends that HFO be adjusted to calibrate the relative position of the antenna. If the antenna is pointing to the LEFT of the bow line: If the antenna stops driving before the bow line, when targeting a satellite it will fall short of the desired satellite by exactly the same number of degrees that it fell short of the bow line.
Page 56: You Observe "Home" Pointing Is Left Of The Bow-Line (Minus Hfo)
If there is a small amount of error remaining, I will use AZ TRIM in the Optimizing Targeting procedure to correct it (as shown in the previous section). Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 57: Entering A Large Value As Home Flag Offset
If the amount of offset is greater than +/-5 degrees, enter it as Home Flag Offset. If it is within +/-5 degrees, you should enter it in AZ TRIM. Access the System Configuration screen Enter new Home Flag value (positive or negative value) Click SAVE Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 58: Entering A Small Value As Az Trim
Entering a small value as AZ TRIM If the amount of offset is greater than +/-5 degrees, Sea Tel recommends that you enter it as Home Flag Offset. If it is within +/-5 degrees, you should enter it in AZ TRIM.
Page 59: Setup - Azimuth Trim (Ima Ver 1.05 Or Greater)
2 minutes BEFORE clicking Auto Trim. Refer to Setup – Targeting – and follow the instruction for AUTO TRIM to optimize the targeting of the antenna. Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 60 4012 GX Dealer Technical Manual Setup – Azimuth Trim (IMA Ver 1.05 or greater) This Page Intentionally Left Blank Document. No. 136879 Revision B Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 61: Setup - Blockage & Rf Radiation Hazard Zones
The Blockage Zones function inhibits the antenna from transmitting within certain pre-set zones. This is typically some structure of the ship that prevents satellite signal from getting to the Sea Tel antenna when the ship is at headings that put that structure in-between the satellite and the satellite antenna, However, it can also be used as an RF Radiation Hazard zone.
Page 62: Programming Instructions
Setup – Blockage & RF Radiation Hazard Zones EXAMPLE - Overlaid Blockage Zones: A ship has a Sea Tel antenna mounted on the center line of the ship. A mast mounted on top of a deckhouse (like the picture below) is forward and an engine exhaust stack, also on a deckhouse, is aft.
Page 63 Likewise, for Elevation, you need only to enter the elevation angle, below which you want the transmitter inhibited (blocked). Repeat steps 2-5 to describe up to 4 blockage zones. Document. No. 136879 Revision B 10-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 64 4012 GX Dealer Technical Manual Setup – Blockage & RF Radiation Hazard Zones This Page Intentionally Left Blank Document. No. 136879 Revision B 10-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 65: Configuring The Satellite Modem Interface
• Reflector • Modem Type • Modem I/O • Lock Input • Block Output Document. No. 136879 Revision B 11-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 66: Reflector Setting
Lock), and TX mute functionality via TCP/IP traffic between the MXP’s J9 or J10 Ethernet port, or Serial Traffic (Console), and the applicable devices Ethernet port. Figure 4 Available MXP Rear Panel Modem IO Ports Document. No. 136879 Revision B 11-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 67: Modem I/O - Custom Settings
If your modem provides a continuity based output, short to ground is Low, and Open is High. If your modems output is continuity based logic the Voltage must be set to 12V and the 12V pull up must Document. No. 136879 Revision B 11-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 68 Hazard Zone”, which discussed in detail within another chapter of this manual, is programmed in as a Blockage Zone, thus the name Block Output. Document. No. 136879 Revision B 11-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 69: Quick Reference: Common Modem Lock & Mute Settings
As Required As Required As Required As Required *NOTE: When interfacing ABS (via Ethernet connection) Lock input and Block Output selections have no operational impact. Document. No. 136879 Revision B 11-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 70 4012 GX Dealer Technical Manual Configuring The Satellite Modem Interface. This Page Intentionally Left Blank Document. No. 136879 Revision B 11-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 71: Setup - Targeting
Click on the Auto Trim button. This does not save these parameters to NVRAM, in order to save to memory, click the Save button. Document. No. 136879 Revision B 12-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 72: Manually Optimizing Targeting
Elevation positions of the antenna (these are the Peak positions). Subtract the Peak Positions from the Calculated Positions to determine the amount of Trim which is required. Document. No. 136879 Revision B 12-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 73 After these trims values have been set, your peak “ON” satellite Azimuth and Elevation displays would be very near 180.2 and 30.0 respectively. Document. No. 136879 Revision B 12-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 74 4012 GX Dealer Technical Manual Setup – Targeting This Page Intentionally Left Blank Document. No. 136879 Revision B 12-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 75: Setup - Satellite Configuration
The satellite selection will in turn control the hardware on the antenna pedestal to select the correct TX & RX hardware and the correct tracking settings. Sea Tel provides quad-band LNBs as standard on the Ku-Band feed assemblies. 13.1.
Page 76: Sky Search Pattern
Selects the desired (X-Pol or Co-Pol) on the Ku-Band linear feed ONLY. This setting works in conjunction with the band selection setting. 13.5. Selecting/Configuring Your Satellite Configuration Choose a predefined satellite configuration or create a new one using the steps below. Document. No. 136879 Revision B 13-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 77 Select the desired type of search pattern to use for this satellite. Select desired TX Polarity from the drop down menu. Select desired Band from its drop down menu. Document. No. 136879 Revision B 13-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 78 Assure that reflector is set to “Primary”. Select Cross-Pol LNB (XPol) or Co-Pol LNB (CoPol) as is appropriate for this satellite. Click the Save button. Document. No. 136879 Revision B 13-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 79: Quick Start Operation
Search pattern until looking for a signal value that is greater than the threshold value (red bar in the bar graph below). Document. No. 136879 Revision B 14-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 80 If the Latitude & Longitude values are not correct, access the Communication Interfaces screen and enter the ships Latitude & Longitude position in the fields provided. Click Save. Document. No. 136879 Revision B 14-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 81: If Satellite Signal Is Found But Network Lock Is Not Achieved
Check Latitude, Longitude and Heading. These should be correct, but may be updated if necessary. Access the System Status screen. Document. No. 136879 Revision B 14-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 82 14. Check for improper polarization alignment/position. 15. Check cable connections to assure that a cable has not been disconnected. 16. Check the modem for failure. Document. No. 136879 Revision B 14-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 83: T Otarget A Different Satellite
When you make that selection you will see the temporary message: Acquiring Satellite Signal…Please Wait Shortly after that you will see the temporary message: Satellite Signal Found. Modem Lock: LOCKED Document. No. 136879 Revision B 14-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 84 4012 GX Dealer Technical Manual Quick Start Operation This Page Intentionally Left Blank Document. No. 136879 Revision B 14-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 85: Optimizing Cross-Pol Isolation
Reflector Configuration screen where you find Linear Offset to be 0.0, so you set Linear Offset to minus 2 (-2.0) degrees and click Save. Document. No. 136879 Revision B 15-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 86 Double check with the NOC to assure that cross-pol is still optimized. Conduct any other testing as directed by the NOC (ie P1dB compression). Document. No. 136879 Revision B 15-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 87: Codan Mini-Buc Ethernet M&C Install & Operation
Enter an appropriate subnet mask. For example, type 255.255.255.0 Click on OK or Close in each window to save the settings and close each window. Document. No. 136879 Revision B 16-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 88: Communicating With The Codan Mini-Buc Using Codan Gui
12. Select the Faults Page to view/clear fault(s). 13. Clear faults by clicking Clear. 14. Reboot the Mini-BUC by clicking Reboot. 15. Close the Codan GUI program when finished. Document. No. 136879 Revision B 16-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 89: Issuing Set, Output And View Commands Via Telnet
Output and View commands for the Mini-BUC. For example, type hsc, then press Enter to see the help for the Set commands. If you want to exit the Telnet session, type quit, then press Enter. Document. No. 136879 Revision B 16-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 90 4012 GX Dealer Technical Manual Codan Mini-BUC Ethernet M&C Install & Operation This Page Intentionally Left Blank Document. No. 136879 Revision B 16-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 91: Gx Dealer Menus
Data Export Data Export Others Others Others Admin Change Password Change Password Change Password Help Help Help NOTE: Dealer password overrides all other passwords. Document. No. 136879 Revision B 17-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 92: System Status
The System group on this display provides indicators for Modem Rx Lock Tx Mute Error This display can also be viewed in the header of every menu screen. Document. No. 136879 Revision B 17-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 93 MXP Error Initializing Power Target Search Tracking These represent the six LEDs seen on the front panel of the MXP. Document. No. 136879 Revision B 17-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 94: Satellite Signal Automatic Search
Clicking on the drop down box will allow you to see the selections. This is the method of satellite selection that will most commonly be utilized by the users, under the “User” Log-in. Document. No. 136879 Revision B 17-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 95: Communication Interfaces
(ie MAC Address). If the parameter is in an entry box it can be edited (ie DNS IP Address). Document. No. 136879 Revision B 17-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 96 When you click on this drop down menu you will have the following speed choices (bits-per- second): • 4800 • 9600 • 19200 • 38400 • 57600 • 115200 Document. No. 136879 Revision B 17-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 97 When you click on this drop down, you will have the following choices: • Modem RJ45 • TMS 1 • TMS 2 • Open AMIP Document. No. 136879 Revision B 17-7 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 98 • 36:1 Sync with S/D Converter • 1:1 Sync with S/D Converter • Fixed • NMEA • No Gyro • SBS Step by Step Document. No. 136879 Revision B 17-8 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 99 Communication Interfaces screen, however, it is automatically populated from the on-board GPS located on the antenna pedestal. Document. No. 136879 Revision B 17-9 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 100: System Configuration
4012 GX Dealer Technical Manual 4012 GX Dealer Menus 17.5. System Configuration The top area of the System Configuration screen is utilized to set up the blockage zones. Document. No. 136879 Revision B 17-10 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 101 Satellite Reference Mode ON. puts it into Sat Reference Mode.. Document. No. 136879 Revision B 17-11 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 102 WARNING: These parameters should never be changed from their default values in normal operation. Document. No. 136879 Revision B 17-12 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 103 WARNING: These parameters should never be changed from their default values in normal operation. Document. No. 136879 Revision B 17-13 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 104: Reflector Configuration
Reflector Configuration Primary and Secondary are for future antenna systems. The 4012 GX has a single reflector, so only the “Primary” should be selected. Document. No. 136879 Revision B 17-14 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 105 AZ, in a “No Gyro” mode of operation. Incline Limit refers to Inclined Orbit tracking. Notice that in this case it is set for 16° (+/- 8°). Document. No. 136879 Revision B 17-15 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 106 Searching. Local Oscillator setting of the LNB(s) – defaults are set to the LO values of the LNB(s) we supplied with the antenna. Document. No. 136879 Revision B 17-16 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 107 In Auto the feed drives automatically, based on the geo location of the satellite you are targeting. In Manual it doesn’t drive until you change the value. Document. No. 136879 Revision B 17-17 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 108: Satellite Configuration
If your screen is blank, that is, it does not have the Add Satellite information section displayed, just click on the Add Satellite button, and it will display the “add satellite” parameters. Document. No. 136879 Revision B 17-18 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 109 The choices are: • Horizontal • Vertical • Left Hand Circular Polarity • Right Hand Circular Polarity The circular polarization selections are for future applications only. Document. No. 136879 Revision B 17-19 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 110 Favorite Satellite list, but it does not make the satellite “Active”. The satellite saved as a favorite can be edited or deleted if necessary. Document. No. 136879 Revision B 17-20 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 111: Hardware Profile
Currently there is only one selection, but there is a designed-in capability for additional antenna configuration profiles to be created in the future. Document. No. 136879 Revision B 17-21 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 112 The Motor Gains are set by entries on the System Configuration screen - these should never be changed from the factory defaults. Document. No. 136879 Revision B 17-22 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 113 The LNB LO (Local Oscillator) values are set by operator entries on the System Configuration screen. Document. No. 136879 Revision B 17-23 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 114 Circular mechanical offsets are set by the Reflector Configuration screen. The three other parameters, Polang Type, Linear Scale, and Circular Scale are set by the INI file. Document. No. 136879 Revision B 17-24 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 115: Graphs
All graphs are driven by live data. Document. No. 136879 Revision B 17-25 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 116 Historical allow the historical data to be viewed. In a zoom level, live data is drawn from left to right, within a specified time interval. Document. No. 136879 Revision B 17-26 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 117 Add the number labeled as the base on that axis. If the antenna position makes a large change the plot may go off screen (in it’s graph). Document. No. 136879 Revision B 17-27 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 118 Reselect a graph from the graph mode list. For Dealer and SysAdmin an input field for CLI (Command Line Interface) commands is provided to change AZ, EL, CL, etc. Document. No. 136879 Revision B 17-28 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 119: Cli Commands
4012 GX Dealer Menus 4012 GX Dealer Technical Manual 17.10. CLI Commands The CLI screen accepts single line commands. Reference document 135163 on the dealer support site. Document. No. 136879 Revision B 17-29 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 120: Position Antenna
You will enter the working satellite parameters: Longitudinal position of the desired/selected satellite. Frequency in MHz (ie 1234.567 MHz). Skew of the satellite in degrees & tenths of degrees. Document. No. 136879 Revision B 17-30 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 121 Threshold extremely low, just to be able to track the desired satellite. Document. No. 136879 Revision B 17-31 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 122 (Each key press is 0.3 degrees.) The displayed AZ and EL represent the actual angle of the reflector. Document. No. 136879 Revision B 17-32 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 123 AZ, EL and CL Target are the last command that the operator entered. Turning Tracking OFF inhibits an Auto Search pattern from beginning, or continuing. Document. No. 136879 Revision B 17-33 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 124 Document. No. 136879 Revision B 17-34 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 125 In summary, the operational sequence is: 1. Go to the upper part of the Position Antenna screen, and establish known values. Document. No. 136879 Revision B 17-35 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 126 From this point on, the User will simply go to the Satellite “Auto” screen, and select the desired satellite from the drop down list. Document. No. 136879 Revision B 17-36 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 127: Test
The Four Quadrant Test has two test modes, Manual and Auto. The Auto Test drives Azimuth CW in 1 degree and Elevation up in 1 degree. Document. No. 136879 Revision B 17-37 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 128 Click on the AZ Test button to select the Azimuth Test screen. The AZ Test screen shows graphs for the CL, LV, and Azimuth movements. Document. No. 136879 Revision B 17-38 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 129 You can also change the Slow Scan Vertical Limit setting. This is the maximum speed that the antenna will be driven. Click the “Submit” button for the setting to take effect. Document. No. 136879 Revision B 17-39 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 130 ICU, processor activity and proper synchronization. Balance Mode is used to turn all drive OFF so that the antenna can be balanced. Document. No. 136879 Revision B 17-40 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 131: Activity
The information can be sorted by any of the four categories, just by clicking on the category title. The default sort category is “Type”. Document. No. 136879 Revision B 17-41 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 132 Click “Save Target As” to choose where you want the data to be saved. Choose the name and location to download it Then click “Save”. Document. No. 136879 Revision B 17-42 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 133 You can see that it lists the date, time, category, and details. You could print out, save, or send this file to someone (ie attached to an email). Document. No. 136879 Revision B 17-43 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 134: Data Export
If you want to see data from more than one week ago refer to the next section on “Data Export”. 17.14. Data Export Document. No. 136879 Revision B 17-44 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 135 To see the contents of the file you right click on it. Click on “Save Target As”. Choose the name and location to save the file to. Then click “Save”. Document. No. 136879 Revision B 17-45 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 136 You can see that it lists the date, time, category, and details. You can print, save, or send this file (ie attached to an email). Document. No. 136879 Revision B 17-46 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 137 To dates, and open the record of activity. Click on the “Export” icon. Click “Save Target As”. Choose the name and location to download it to. Document. No. 136879 Revision B 17-47 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 138 When you see the “Open File” dialog box click the “Open” button. You can see that it lists the date, time, category, and details. Document. No. 136879 Revision B 17-48 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 139: Admin
This operates in the same was as you have already seen in the three previous examples. 17.15. Admin Document. No. 136879 Revision B 17-49 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 140: Configuration
This takes you to the Maintain Configuration Files screen. To download the Configuration files to your computer click on the INI File “Download” button. Document. No. 136879 Revision B 17-50 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 141 You can upload INI and Profile database files by clicking on the “File type” icon. If the file type selected does not match the file being uploaded you will get a message. Document. No. 136879 Revision B 17-51 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 142: Upgrading Your Ima Software (Firmware)
Then skip to step 4 below. You will then see one or more software files, available for downloading. Document. No. 136879 Revision B 17-52 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 143 Find that file, Click on it and then Click the “Open” button. Now that file name shows in the Firmware Upgrade Browse window. Document. No. 136879 Revision B 17-53 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 144 10. The next thing you will see is a message informing you that there will be an automatic reboot. 11. You will see a progress bar, showing that the reboot is progressing.. Document. No. 136879 Revision B 17-54 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 145: Ssl
The SSL certificate and key files do not take effect until the system is restarted. HTTPS is accessible via default SSL certificate, or if the proper SSL certificate is successfully uploaded. Document. No. 136879 Revision B 17-55 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 146: Change Password
The user is able to change their own password. SysAdmin level can override the User password. Dealer level can override the SysAdmin and User passwords. Document. No. 136879 Revision B 17-56 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 147: Faq
The FAQ page will provide you with answers to commonly asked questions. You get to it by clicking on the FAQ button, found at the lower left area of every screen. Document. No. 136879 Revision B 17-57 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 148: Help
You get to it by clicking on the Help button, found at the lower left area of every screen. Document. No. 136879 Revision B 17-58 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 149: Stowing The Antenna
Verify that the stow pin is engaged in the channel of the stow block and that the antenna does NOT rotate in azimuth. Document. No. 136879 Revision B 18-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 150: Installing The El Shipping/Stow Restraint
Using a ¾” open end wrench, remove the hex nut and washer from the stow pin-bolt. Remove the stow pin-bolt from the bracket. Document. No. 136879 Revision B 18-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 151 Tighten the hex nuts to prevent the hardware from loosening while in the stowed configuration. Verify that the antenna does not rotate in elevation. Document. No. 136879 Revision B 18-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 152: Installing The Cl Shipping/Stow Restraint
The AZ shipping/stow restraint is formed by a pin bolt that is lowered into a channel in a stowage block on the upper plate of the pedestal (as shown). Document. No. 136879 Revision B 18-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 153: Removing The El Shipping/Stow Restraint
EL Stow Pin-Bolt head Bracket 2 Hex Nuts Pin inserted into Elevation Driven Sprocket Elevation Driven Sprocket Document. No. 136879 Revision B 18-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 154 Put the other washer, and then the other hex nut onto the bolt. Document. No. 136879 Revision B 18-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 155: Removing The Cl Shipping/Stow Restraint
(either end of the bar). Remove the bottom nut off of that adjustable bumper. Remove the adjustable bumper from the locking bar. Document. No. 136879 Revision B 18-7 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 156 Verify that the antenna rotates (tilts left and right from level) freely through its full cross- level range of motion. Document. No. 136879 Revision B 18-8 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 157: Preventive Maintenance - Operator Checks And Inspections
Assure that all the connectors are properly tightened. Inspect all harnesses and connections. The harnesses should not be frayed and all the connectors Document. No. 136879 Revision B 19-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 158: 19.1.3. Wire-Rope Isolator Inspections
Assure that none of the motor mounting hardware is coming loose. Tighten any loose hardware found. Check the motor cable for damage and that the retaining screws are tightened to keep the connector properly terminated. Document. No. 136879 Revision B 19-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 159: 19.1.5. Home Switch Sensor Inspection
If the striker plate is very near the upper or lower pair of rubber bumpers, contact your dealer immediately for repair. Document. No. 136879 Revision B 19-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 160: 19.1.7. Cross-Level Drive Component Inspections
CAUTION: Be EXTREMELY careful rotating the pedestal around while your fingers are in this area to prevent pinching or crushing your fingers in the pedestal assembly. Document. No. 136879 Revision B 19-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 161: 19.1.8. Elevation Drive Component Inspections
Inspect the Motor Junction Box to assure that all mounting hardware is secure and all the connections are tight. 19.1.10. ICU Inspections Inspect the ICU to assure that all mounting hardware is secure and all the connections are tight. Document. No. 136879 Revision B 19-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 162: Buc Inspections
Inspect the perimeter of the dish for any damage that would indicate that the dish may have impacted the inside surface of the radome top. Document. No. 136879 Revision B 19-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 163: Diagnostics, Fault Isolation & Troubleshooting
Read the voltage value of every power supply. Use the results to determine if there is a problem with the power supplies, the Zener Diode, or the ADC. Both boards have a temperature sensor; verify that the output is within operating range. Document. No. 136879 Revision B 20-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 164: Ethernet Phy Chip
If the test is started from the website the website will communicate the status of the tests. If the test is started from a terminal, the status of the test will be printed to the user while the test is running on that terminal. Entries to the Document. No. 136879 Revision B 20-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 165: Motors (Az, El, And Cl): Do They Turn
The flow chart on the following page will help you to identify small problems that you might correct and larger problems that you will report to your dealer for correction. Document. No. 136879 Revision B 20-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 166 4012 GX Dealer Technical Manual Diagnostics, Fault Isolation & Troubleshooting Document. No. 136879 Revision B 20-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 167: Ima System Led Functions
LED-Color-State as seen on the front panel or in the GUI. To ascertain the specific error code, refer to the next section of this chapter. For a complete list of error codes, refer to the Error Table below. Document. No. 136879 Revision B 20-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 168: Error Led (By States)
1049 - 90:1 Synchro Gyro Requires Initial 1073 - Pol Failed To Initialize With Heading Encoder 1050 - 360:1 Synchro Gyro Requires Initial Heading Document. No. 136879 Revision B 20-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 169: Initializing Led
Trigger Condition(s) State State GREEN ADE Initializing AMBER 1033 – Software Update In Progress Solid Flashing MXP-ICU Sync at startup OOST On IST On Document. No. 136879 Revision B 20-7 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 170: Power Led
This is an overview of all the cases that can cause each of the state(s) listed. Color Trigger Condition(s) Color Trigger Condition(s) State State GREEN Antenna is Searching Solid Document. No. 136879 Revision B 20-8 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 171: Tracking Led
To ascertain the specific errors that have occurred in the system, log into the IMA GUI and select Logs – Activity (refer to the Activity section of the manual). For a complete list of error codes, refer to the Error Table below. Document. No. 136879 Revision B 20-9 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 172: Error Table
1005 Comm Error w/ Motor Driver - Check cable connection ICU-MDE. Check LED Error Error Latched status on the MDE. MDE, cable ICU may be failed. Solid Document. No. 136879 Revision B 20-10 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 173 1015 MXP/ICU Link Error RX link connection failure. Trouble shoot ADE-BDE cable Warning Error Unlatched connections, connectors-on Rotary Joint, the Rotary Joint, or EoC modules in Solid the ICU and the MXP. Document. No. 136879 Revision B 20-11 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 174 Latched input selection – check gyro compass input cable connection – check gyro Solid compass distribution output switch/fuse – recommend gyro compass/distribution box repair. Document. No. 136879 Revision B 20-12 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 175 1033 Software Update In Progress - Wait until software update is completed. Info Initializing Unlatched Flashing Amber 1034 Block Zone Test/Simulation - Un-block by turning Test/Simulation OFF Info Tracking Unlatched Flashing Amber Document. No. 136879 Revision B 20-13 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 176 Notice Error Unlatched heading value Solid 1048 36:1 Synchro Gyro Requires Initial Heading - Enter current gyro compass Notice Error Unlatched heading value Solid Document. No. 136879 Revision B 20-14 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 177 1063 CM current out of range (GX60 & 4012GX Ka ONLY) - iDirect Core Module Error Error Latched current is too high/too low Solid Document. No. 136879 Revision B 20-15 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 178 ** An unlatched error can automatically clear itself, if the system corrects the condition which caused the error. A latched error can only be cleared explicitly by the user. Document. No. 136879 Revision B 20-16 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 179: Icu Led Functions
The ICU/GICU receives heading input from the ships gyro compass and reports the relative and true azimuth positions for display in the MXP/GMXP. Document. No. 136879 Revision B 20-17 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 180: Verify Initialization
90 degree increments and verify that the pedestal actually rotates 90 degrees, and that the relative and azimuth position values on the displayed change the correct direction numerical amount. Document. No. 136879 Revision B 20-18 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 181: Check/Test - El / Cl Motor
If there is any continuity measured on the steps mentioned above, the motor is defective (which would be highlighted by the diagnostic LEDs on the MDE). The antennas operation should be verified with a Document. No. 136879 Revision B 20-19 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 182: Verify Motor Brake Release
Verify that the brakes are opening all the way, and are staying open during normal operation. • Test the harness & motor for faults. Document. No. 136879 Revision B 20-20 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 183: Az Reference Error
If any of these steps fail, verify that the profile setting is configured correctly and saved. A drive issue or error LED will require further troubleshooting. Document. No. 136879 Revision B 20-21 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 184: Mde Status Leds
There are a variety of discrete pol errors which depend on the design of the feed assembly. These are related to pol home flag, motor drive and pot or encoder feedback, Ascertain the exact error(s) and troubleshoot accordingly. Document. No. 136879 Revision B 20-22 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 185: Verify The Range Of Motion Of The Feed Assembly (4012)
(as shown above). Now enter into the value “90.0” into the linear window of the polang target option and press the enter key on the keyboard. Document. No. 136879 Revision B 20-23 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 186 No drive at all indicates a failure with the 24DC polang motor as per the measure motor voltage section of this document. Document. No. 136879 Revision B 20-24 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 187: Measure Polarity Motor Voltage
Document. No. 136879 Revision B 20-25 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 188: Check The Pol Pot Calibration
*Note: If testing verifies the pot is functioning correctly ensure to reset the linear offset value before returning the system to normal operation (if applicable). Document. No. 136879 Revision B 20-26 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 189: Verify The Resistance Of The Pol Pot
0 ohms. Any error with the pot not giving the correct resistance is an indication the pot is defective and needs replacing. Document. No. 136879 Revision B 20-27 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 190: Calibrate The Pol Pot
Any error with the alignment is an indication that there is either a problem with the encoder or an issue with the senor not seeing the home flag correctly, in the incorrect place or a potential motor drive problem. Document. No. 136879 Revision B 20-28 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 191: Verify The Range Of Motion Of The Feed Assembly (4012)
(as shown above). Now enter into the value “90.0” into the linear window of the polang target option and press the enter key on the keyboard. Document. No. 136879 Revision B 20-29 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 192 No drive at all indicates a failure with the 24DC polang motor as per the measure motor voltage section of this document. Document. No. 136879 Revision B 20-30 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 193: Maintenance
Sea Tel Inc. supports these systems with a TWO year warranty on parts and labor. What’s Covered by the Limited Warranty? The Sea Tel Limited Warranty is applicable for parts and labor coverage to the complete antenna system, including all ADE (radome, pedestal, antenna, motors, electronics, wiring, etc.) and the ACU or MXP.
Page 194: 21.2. Torque And Loctite Specifications
Always move weight from one location on the equipment frame to the same location on the opposite side of the equipment Document. No. 136879 Revision B 21-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 195: Fine Balance And Monitoring Motor Drive Torque
The CL trace is plotting above the red reference line (indicating that drive CCW is required to keep the Cross-Level beam level (to the horizon). Document. No. 136879 Revision B 21-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 196: Replacing Components
**If using balance weights as a wedge, exercise caution so that you do not scratch the zinc coating from the base plates.** Document. No. 136879 Revision B 21-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 197 Document. No. 136879 Revision B 21-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 198 Repeat steps 1 through 9 to replace each of the other three wire rope isolators. Base assembly shown removed from pedestal for illustration purposes. Document. No. 136879 Revision B 21-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 199: Replacing The Rubber Bumpers
Replacing the Pneumatic Damper Using a ¾” wrench (or crescent wrench), remove the flow control valves (at the adapters) installed into the side of the pneumatic damper. Document. No. 136879 Revision B 21-7 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 200 Remove and discard the bottom bolt of the pneumatic damper assembly. Carefully remove the pneumatic damper. Document. No. 136879 Revision B 21-8 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 201 M12x55 bolt provided in the kit. Install the M12x55 bolt through the bottom of the replacement pneumatic damper and into the threaded mounting block. Document. No. 136879 Revision B 21-9 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 202: Replacing The Flow Control Valves
Replacing the Flow Control Valves Using a ¾” wrench (or crescent wrench), remove the flow control valves and adapters installed into the side of the pneumatic dampener. Document. No. 136879 Revision B 21-10 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 203 “meter” end of each of the replacement flow control valves. Install the replacement flow control valves in the side of the pneumatic dampener. Completed Flow Control Valve Assembly. Document. No. 136879 Revision B 21-11 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 204: Replacing The Chain Tensioner Spring
.455” from the motor case as shown in the graphic to the right. Apply Loctite 222 onto the set screws and secure sprocket to motor shaft. Document. No. 136879 Revision B 21-12 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 205 Using a 3mm Allen wrench, remove the hardware that secures the azimuth motor to its’ mounting bracket. Retain hardware for future use. Remove motor and set aside. Document. No. 136879 Revision B 21-13 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 206 11. Wrap the other side of the chain to the azimuth drive pulley. 12. By hand rotate the antenna in azimuth to fully engage chain to the main drive pulley. Document. No. 136879 Revision B 21-14 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 207 14. With the chain drive fully engaged, drive the antenna in azimuth while checking/feeling for any physical obstructions. 15. Install and secure the motor cable to the MDE. Document. No. 136879 Revision B 21-15 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 208: Replacing The El Motor
Tighten the tensioning bolt and check belt tension by twisting the belt with your fore finger and thumb. Document. No. 136879 Revision B 21-16 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 209: Replacing Elevation Drive Belt
12. Using a small flat blade screwdriver install the EL motor cable from the Elevation motor interface harness that routes to the MDE. 21.4.8. Replacing Elevation Drive Belt Document. No. 136879 Revision B 21-17 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 210 10. Install cable ties across the top of the elevation driven sprocket that were removed in step 3 above. Document. No. 136879 Revision B 21-18 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 211: Replacing The Cl Motor
Replacing the CL Motor: Using a small flat blade screwdriver, loosen the hardware that secures the CL motor harness to the MDE and disconnect the D-sub connector. Document. No. 136879 Revision B 21-19 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 212 11. Tighten the locking nut on the tensioner bolt. 12. Using a small flat blade screwdriver install the CL motor cable to the MDE. Document. No. 136879 Revision B 21-20 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 213: Replacing Cross-Level Drive Belt
Increase belt tension until the belt can only be easily twisted just ¼ turn with your fingers. 10. Tighten the locking nut on the tensioner bolt. Document. No. 136879 Revision B 21-21 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 214: Replacing The Motor Driver Enclosure (Mde)
AZ cables to the MDE. Install a 7” cable tie to secure the TX & RX coaxes to the Home and AZ cables. Document. No. 136879 Revision B 21-22 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 215: Replacing The Power Ring Assembly
Retain the hardware for future use. Set the sensor assembly aside in a safe place. Document. No. 136879 Revision B 21-23 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 216 Cut the cable ties securing the pedestal harness to the base plate using a pair of diagonal cutters. Using a 10mm wrench, remove the ground point from the base plate. Document. No. 136879 Revision B 21-24 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 217 14. Remove the cable wrap from the AC cables following the run from the power ring to the breaker connector. Document. No. 136879 Revision B 21-25 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 218 NOTE: The power ring assembly has two sets of mounting threads, should one set become damaged the other can be used. Document. No. 136879 Revision B 21-26 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 219 29. Apply Loctite 2760 to the bolt removed in step 6 above. 30. Reconnect the ground cable to the base plate using a 10mm wrench and tighten the bolt. Document. No. 136879 Revision B 21-27 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 220: Replacing The 2 Channel Rotary Joint
Replacing the 2 channel Rotary Joint CAUTION: Turn off or disconnect the vessels AC Voltage to supply to antenna prior to performing the below procedure. Document. No. 136879 Revision B 21-28 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 221 Retain hardware for future use. With two hands, carefully lift power ring up and off the adapter plate. Document. No. 136879 Revision B 21-29 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 222 5/16” wrench remove the Tx cable from the center channel of the rotary joint. Document. No. 136879 Revision B 21-30 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 223 11. Reconnect the coaxes disconnected in steps 7 and 8. Tx IF cable to Center channel and Rx IF cable to the outer channel. Document. No. 136879 Revision B 21-31 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 224 Note: There are two mounting holes “set” in the power ring assembly. You may align to either set. Document. No. 136879 Revision B 21-32 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 225 18. By hand manually drive the antenna in azimuth both CW and CCW >360° while checking for any physical obstructions or restrictions (i.e. cables, hardware, bearings, etc.) Document. No. 136879 Revision B 21-33 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 226: Replacing The Integrated Control Unit (Icu)
Reconnect and secure the cables removed in step 3 (refer to the list of cables above). Assure that power to the MXP is secured. Document. No. 136879 Revision B 21-34 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 227: Replacing The Mk2 Gps Antenna
Coil the excess GPS cable length and use a cable tie to bind the coil. 10. Plug the GPS cable into the “GPS” port on the PCU. Document. No. 136879 Revision B 21-35 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 228: Field Replacement, Repair & Calibration Of The Ku-Band Rf Cage
Then, refer to the “Reinstalling the RF Cage” procedure to reinstall it on the back of the reflector. Document. No. 136879 Revision B 21-36 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 229: Tools Required
• 7/64” Open End Wrench • 10mm Open End Wrench • 17mm Open End Wrench • Small flat blade screwdriver • Digital Volt/Ohm Multi-Meter Document. No. 136879 Revision B 21-37 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 230: Removing The Rf Cage
RF Cage mounting nut. The PCB is very close to the mounting nut and may be severely damaged by the wrench while removing the nut. Document. No. 136879 Revision B 21-38 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 231 15. Grip the RF Cage firmly and pull it off of the alignment pins. Document. No. 136879 Revision B 21-39 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 232: Feed Tube Replacement
Use a 2.5mm Allen wrench to remove the four screws that mount the feed tube to the front of the RF Cage assembly. Retain this hardware for reinstallation. Document. No. 136879 Revision B 21-40 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 233 If this IS the only component that is being replaced, turn ADE AC power ON. Close and secure the hatch in the base of the radome. Document. No. 136879 Revision B 21-41 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 234: Cross-Pol Lnb Replacement
Use a 10mm open end wrench to unbolt the LNB strap bracket and remove the LNB (with RX waveguide, strap and bracket). Retain hardware for reinstallation. Document. No. 136879 Revision B 21-42 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 235 Insert the mounting bolt, lock washer & flat washer into the bracket as shown. NOTE your assembly should now look like the one shown in this picture. Document. No. 136879 Revision B 21-43 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 236: Co-Pol Lnb Replacement
Retain hardware for reinstallation. Using a 3mm Allen Wrench, remove the four screws in the waveguide flange mated to the LNB. Retain these screws for reinstallation. Document. No. 136879 Revision B 21-44 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 237 The screws should be going through the waveguide flange bracket first, then through the RX waveguide flange and thread into the LNB. Tighten these screws. Document. No. 136879 Revision B 21-45 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 238: Polarity Motor Replacement
Move the side bracket out of your way to access the polarity motor. Cut tie-wrap that bundles the wires together and unplug the polarity motor from the IDC Connection PCB. Document. No. 136879 Revision B 21-46 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 239 10. Hold tension against the backlash gear or the motor mounting bracket, forcing the motor forward while you tighten the mounting screws. Document. No. 136879 Revision B 21-47 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 240: Polarity Potentiometer Replacement
Motor” procedure to loosen the motor enough to de-couple its backlash (drive) gear from the feed (driven gear) to allow the feed to be rotated to alignment position. Document. No. 136879 Revision B 21-48 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 241 Verify that the feed is still properly aligned. 14. Rotate the backlash gear (pot shaft) to a measure resistance of 3050 +/- 50 ohms on the multi-meter. Document. No. 136879 Revision B 21-49 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 242 26. Assure that your SKEW setting is correct for the satellite you have been/will be using. 27. Contact the NOC to arrange/conduct the cross-pol isolation test. Document. No. 136879 Revision B 21-50 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 243: Polarity Encoder Replacement
Retain all hardware for reinstallation. Cut tie-wrap that bundles the wires together and unplug the polarity encoder from the IDC Connection PCB. Document. No. 136879 Revision B 21-51 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 244 14. If this IS the only component that is being replaced, refer to the “Replacing the RF Cage” procedure and then complete steps 18-25 below. Document. No. 136879 Revision B 21-52 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 245: Buc Replacement
Open the hatch in the base of the radome. Turn ADE AC power OFF. Rotate antenna assembly around to access the BUC from back side of the reflector. Document. No. 136879 Revision B 21-53 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 246 12. Tighten the four nuts that mount the brackets to the top of the RF Cage. 13. Tighten the eight screws that mount the brackets to the BUC. Document. No. 136879 Revision B 21-54 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 247: Reinstalling The Rf Cage
Seat the RF Cage all the way down on the studs and pins. Start the flat washer, lock washer and nut on each of the four studs. Document. No. 136879 Revision B 21-55 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 248 2-pin IDC - Polarity Motor wires (Red & Black). 4-pin IDC - Polarity Pot wires (blank, Red, Gray & Brown). 4-pin IDC - Sensor wires (Red, White, Green & Black) Document. No. 136879 Revision B 21-56 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 249 11. Connect the IDC lower leg of the harness to the PCB. 12. Connect the ground cable to the standoff mounting screw on the PCB. Document. No. 136879 Revision B 21-57 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 250 Cable Tie Holder insert in the RF Cage 17. Connect the Yellow coax to the Co-Pol LNB. 18. Connect the Orange coax to the Cross- Pol LNB. Document. No. 136879 Revision B 21-58 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 251 23. If this IS the only component that is being replaced, turn ADE AC power ON. 24. Close and secure the hatch in the base of the radome. Document. No. 136879 Revision B 21-59 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 252: Replacing The Mxp
11. Connect a PC to the management Ethernet port on the MXP. 12. Log into the MXP and upload the INI file. 13. Verify normal operations. Document. No. 136879 Revision B 21-60 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 253: Ku-Ka Upgrade Procedure
Transport the Ka-Band upgrade kit to a protected area near the ADE. Open the upgrade kit and un-package the Ka-Band feedtube, RF cage and tools. Keep this packaging to put the Ku-Band items which are removed in this procedure. Document. No. 136879 Revision B 22-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 254: Removing The Ku-Band Rf Equipment
RF Cage mounting nut. The PCB is very close to the mounting nut and may be severely damaged by the wrench while removing the nut. Document. No. 136879 Revision B 22-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 255 16. Grip the RF Cage firmly and pull it off of the alignment pins. Document. No. 136879 Revision B 22-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 256 Ka-Band equipment is located. 22. Place the Ku-Band RF Cage, feedtube, hardware and tools in the upgrade kit package for storage. Document. No. 136879 Revision B 22-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 257: Installing The Ka-Band Rf Equipment
Use your 17mm open end or socket wrench to tighten all 4 nuts to torque spec. Document. No. 136879 Revision B 22-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 258 11. Connect the cannon plug to the connector on the BUC. 12. Connect the TX IF coax to the type N connector on the BUC. Document. No. 136879 Revision B 22-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 259 16. Secure the coaxes on the underside of the RF Cage with a cable tie through the black cable tie holder on the lower right side of the RF Cage. Document. No. 136879 Revision B 22-7 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 260 Ka-Band feedtube). 20. Verify balance of the antenna, re-balance as needed. 21. Close and secure the hatch in the base of the radome. Document. No. 136879 Revision B 22-8 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 261: Install The Below Decks Equipment
11. Unified Web Interface will indicate modem in network as well as front panel LEDs. 12. When commissioning is completed, test all subscribed services. Document. No. 136879 Revision B 22-9 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 262 4012 GX Dealer Technical Manual Ku-Ka Upgrade Procedure This Page Intentionally Left Blank Document. No. 136879 Revision B 22-10 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 263: Gx Technical Specifications
4012 GX Technical Specifications The specifications of your antenna system are below. For Naval Engineering level information on this subject, please refer to Antenna Installation Guideline – Site Arrangement, document number 130040_A available on the Sea Tel Dealer Support Site. 23.1.
Page 264 Polarization control 24 volt DC motor with pot feedback Transmit Frequency Range 13.75-14.5GHz Receive Frequency Range 10.70-12.75GHz Polarization Linear Polarization Range of Motion 270 degrees Document. No. 136879 Revision B 23-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 265 18VDC + 22 KHz Tone Input RF Frequency 10.70-11.70 GHz Local Oscillator Frequency 9.75 GHz Output IF Frequency 950 to 1950 MHz Gain (typ) 54dB Document. No. 136879 Revision B 23-3 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 266 Max vehicle dynamics 500 m/s Shock 50G 3ms Connector RJ11 Input Voltage 4.75VDC 5.0VDC 5.25VDC NMEA output messages GLL, GGA, RMC, VTG Refresh Rate Document. No. 136879 Revision B 23-4 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 267 30mV/dB typical (25 counts/dB typical) Bandwidth (3dB) 150 KHz Interfaces Modem/MXP M&C Interface OpenAMIP & Legacy Network Interface 4-port managed fast Ethernet switch User Interface Web Browser/Console Port Document. No. 136879 Revision B 23-5 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 268 Less than 0.4dB @ 10.7-14.50 GHz dry Wind: Withstand relative average winds up to 56m/sec (125 MPH) from any direction. Ingress Protection Rating IP 56 Document. No. 136879 Revision B 23-6 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 269 Shock (Bump) Peak Accel., m/s2 Duration, ms Number of Cycles 100 ea. direction Directional Changes Transit Conditions Drop (Transit Shock) Complies with ISTA Standard Document. No. 136879 Revision B 23-7 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 270: Below Decks Equipment
Pin 3 Synchro S1 / SBS A Pin 4 Synchro S2 / SBS B Pin 5 Synchro S3 / SBS C Pin 6 SBS COM Document. No. 136879 Revision B 23-8 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 271 Switched outputs 4.7K pull up or Pull Down Current handling Current sink of 0.5 amps max. No Alarm State Normally Open Alarm State Contact closure Document. No. 136879 Revision B 23-9 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 272: Regulatory Compliance
EN 301-489, EN 301-428, EN 302-340 (Ku Band) Safety Compliance ETSI EN 60950 Environmental Compliance RoHS FCC ESV Compliance Ku-Band 47 C.F.R. § 25.222 FCC ESV Compliance Ka-Band Document. No. 136879 Revision B 23-10 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 273: Cables
23.4.1. Antenna L-Band IF Coax Cables (Customer Furnished) Due to the loss across the length of the RF coaxes at L-Band, Sea Tel recommends the following 50 ohm coax cable types (and their equivalent conductor size) for our standard pedestal installations. Type N male...
Page 274 4012 GX Dealer Technical Manual 4012 GX Technical Specifications This Page Intentionally Left Blank Document. No. 136879 Revision B 23-12 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 275: Drawings
61” Radome Assembly, Tuned 24-31 135874_A1 Installation Arrangement, 61” Spherical Radome 24-33 131226_A Procedure, Radome Strain Relief Installation 24-34 136743_A Comprehensive Spare Parts Kit, 4012GX 24-40 Document. No. 136879 Revision B 24-1 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 276 4012 GX Dealer Technical Manual DRAWINGS This Page Intentionally Left Blank Document. No. 136879 Revision B 24-2 Sea Tel – Proprietary. Do Not Copy, Distribute or Disclose...
Page 277 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 133373-1 C2 PCB ASS'Y, MXP-2011 1 EA 133729-5 A1 POWER SUPPLY SWITCHING, 75W 1 EA 122660-6 HARNESS, AC ENTRY, 18 IN. CHASSIS 1 EA 126597-17 B4 CABLE ASS'Y, .156 ORG IDC TO PIN TERM (NOT SHOWN) (P/S DC TO J106) ,...
Page 278 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 7 EA 120089-211 NUT, HEX, M3, S.S. 1 EA 126264-13 A1 WASHER, STAR, INTERNAL TOOTH, NARROW 1 EA 119967 A1 NUT, HEX, PANEL, 3/8-32 1 EA 136082 PACKAGING, MXP (NOT SHOWN) , ENCLOSURE ASS'Y, MXP...
Page 279 NOTES: UNLESS OTHERWISE SPECIFIED IDENTIFY ASS'Y P/N & S/N PER SEA TEL SPEC. 122930 APPROX. WHERE SHOWN. IDENTITY PCB ASSY P/N & S/N PER SEA TEL SPEC 122930 APPROX WHERE SHOWN. MANUFACTURE PER SEA TEL STANDARD 122298. COSMETIC INSPECTION PER SEA TEL SPEC 127212.
Page 280 PART OF ITEM 1 SIZE SCALE: DRAWING NUMBER 134725 2 OF 3 SHEET NUMBER...
Page 281 SEE DETAIL A J104 OPEN NOTCH FACE UP PIN 1 ITEM 3 TOP WIRES ITEM 3 BOTTOM WIRES OPEN NOTCH FACE DOWN FROM POWER SUPPLY FROM POWER MODULE CABLE BEND FOR BOTH CABLES DETAIL A WIRE HARNESSES DETAIL SIZE SCALE: DRAWING NUMBER 134725 3 OF 3...
Page 282 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 134803-1 B1 GENERAL ASS'Y, 4012GX 1 EA 135006-1 D (OBS, E10357) RADOME ASS'Y, GA INSTAL 1 EA 132345-1 A2 SSPB, KU, 8W, CODAN MINI, 4908-W/E-DC 2 EA 136128-2 LNB, SMW, QUAD LO, KU BAND, TYPE N 1 EA 134725-1...
Page 283 RADOME BASE FRAME AC KIT SYSTEM TOTAL Do Not Copy, Distribute or Disclose Without Prior 134968 Written Approval From Sea Tel. 4012 GX 3rd ANGLE 1 OF 1 Copyright c Sea Tel, Inc 2011 - Unpublished Work FIRST USED: SHEET NUMBER PROJECTION...
Page 284 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 134803-1 B1 GENERAL ASS'Y, 4012GX 1 EA 134512-1 D ANTENNA ASS'Y, 4012GX, KU 2 EA 136128-2 LNB, SMW, QUAD LO, KU BAND, TYPE N 1 EA 132345-1 A2 SSPB, KU, 8W, CODAN MINI, 4908-W/E-DC 1 EA 132956-1...
Page 285 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 111079-6 H CABLE ASS'Y, SMA(M)-N(M), 6 FT. 2 EA 119479-10 CABLE ASS'Y, CAT5 JUMPER, 10 FT. 1 EA 119478-5 CABLE ASS'Y, RJ-45 SERIAL, 60 IN. 1 EA 133287-2 CABLE ASS'Y, USB 2.0, 6FT, A/M TO MIN 1 EA 120643-25...
Page 292 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 138633-4 BDE CABLE KIT, 4012GX (MXP) 1 EA 136872 A1 BRACKET ASS'Y, CONNECTOR, RACK MOUNT 1 EA 139410 BOX, ACCESSORY BELOW DECK KIT, MXP PROD FAMILY EFF.
Page 295 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 118560 D WEIGHT, TRIM, 1 x 3.38 x 3, 2.8 LBS 1 EA 135730-1 PLATE, EQUIPMENT, CW 4 EA 121323-539 SCREW, FLAT HD, SKT DRV, 1/4-20 X 5/8 2 EA 114586-542 SCREW, HEX HD, 1/4-20 x 1-3/4, S.S.
Page 296 Sea Tel - Strictly Confidential & Proprietary. Do Not Copy, Distribute or Disclose Without Prior 135002 Written Approval From Sea Tel. 4012GX 3rd ANGLE 1 OF 1 Copyright c Sea Tel, Inc 2011 - Unpublished Work FIRST USED: SHEET NUMBER PROJECTION...
Page 297 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 134513 D REFLECTOR, 4012GX (MA P/N:20-0172-07) , 1 EA 134550 REFLECTOR SUPPORT STRUCTURE, 4012GX (MA P/N:20-0175-04) , 1 EA 136463-1 KIT, RF MODULE, 4012GX, KU (MA P/N:02-0104-01) , 1 EA 136402-1 B1 BUC CONNECTOR ASS'Y, KU...
Page 298 Sea Tel - Strictly Confidential & Proprietary. Do Not Copy, Distribute or Disclose Without Prior 134512 Written Approval From Sea Tel. 4012 GX 3rd ANGLE 1 OF 7 Copyright c Sea Tel, Inc 2011 - Unpublished Work FIRST USED: SHEET NUMBER PROJECTION...
Page 299 ITEM 9 OF (LNB SHOWN FOR REFERENCE) N CONNECTOR NEAR ITEM 6 OF ITEM 6 OF DETAIL 'B' DETAIL 'A' ITEM 7 OF 97 98 DO NOT USE GASKET ON LNB. SIZE SCALE: DRAWING NUMBER DETAIL 'C' 134512 2 OF 7 SHEET NUMBER...
Page 300 ITEM 4 OF 3 4X USE EXISTING SCREWS ON BUC TO ATTACH ITEM 10 DETAIL 'E' 4X ITEM 10 OF 3 DETAIL 'D' BUC SHOWN FOR REFERENCE DETAIL 'F' SIZE SCALE: DRAWING NUMBER 134512 3 OF 7 SHEET NUMBER...
Page 301 USE EXISTING HW ON BUC TO ATTACH ITEM 8 ITEM 8 OF DO NOT USE GASKET ON LNB DETAIL 'G' DETAIL 'H' ITEM 9 OF 3 DETAIL 'K' SIZE SCALE: DRAWING NUMBER 134512 DETAIL 'J' 4 OF 7 SHEET NUMBER...
Page 302 DETAIL 'L' DETAIL 'M' SIZE SCALE: DRAWING NUMBER 134512 5 OF 7 SHEET NUMBER...
Page 303 57 58 DETAIL 'N' SIZE SCALE: DRAWING NUMBER 134512 6 OF 7 SHEET NUMBER...
Page 304 ITEM 5 OF DETAIL 'P' SIZE SCALE: DRAWING NUMBER 1:12 134512 7 OF 7 SHEET NUMBER...
Page 305 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 134804-1 RADOME TOP FAB, 61 IN, TUNED KA/KU, W 1 EA 129419-1 B3 RADOME BASE ASS'Y, 50 IN, SMOOTH, WHI 8 EA 114580-029 WASHER, FLAT, 1/4, S.S. 4 EA 114586-540 SCREW, HEX HD, 1/4-20 x 1-1/4, S.S.
Page 306 31.315 ACCESS HATCH (INSIDE)) NOTES: UNLESS OTHERWISE SPECIFIED 1. MANUFACTURE PER SEATEL STANDARD 122298. IDENTIFY PER SEA TEL SPECIFICATION 122930 APPROX WHERE SHOWN DASH# DESCRIPTION GENERAL SURFACE AND APPEARANCE STANDARDS PER 127212, CLASS 2B. DO NOT APPLY ADHESIVE. WHITE HARDWARE SHOWN...
Page 308 Purpose. To define the installation procedure for installing strain reliefs in “smooth base” radomes. Scope. This installation procedure applies to fiberglass radomes having Sea Tel’s standard four-hole mounting pattern, and M12 mounting hardware , in the 80-180 cm (34-66 in) nominal size range, typically referred to as “smooth”...
Page 309 Procedure, Radome Strain Relief Installation Making the holes PLANNING: Space has been allowed for up to 5 ea. strain reliefs, but, install only as many as needed. (Typically only 2-3 for TX/RX systems). Refer to Fig 2 then plan which hole positions to use. For 76-inch radomes lowest holes may be approx 1.5 inches from inside wall corner with floor (ref drawing 129416).
Page 310 Procedure, Radome Strain Relief Installation Measure, mark and drill pilot holes CAUTION: The hole locations cannot be determined accurately from outside of the radome. Using full scale drawing 132234, provided in the strain relief kit, measure mark and drill pilot holes from the inside out, and using only light pressure, use the small drill bit, (~1/8”...
Page 311 Procedure, Radome Strain Relief Installation Fig. 5 – Outside view. Rotate General Assembly (G.A.) Once cables have been installed, rotate General Assembly (G.A.), to ensure cables are routed properly and do not interfere with azimuth rotation. Fig. 6 – Inside view. Records.
Page 312 Procedure, Radome Strain Relief Installation Strain relief positioning for 80-180 cm (34-66 in) smooth based radomes, (May use Sea Tel drawing 132234 as template.) Document No Page 5 of 6 131226 Rev A Form # 117140-B...
Page 313 Procedure, Radome Strain Relief Installation Strain relief positioning for 193 cm (76-inch) radomes. (May use Sea Tel drawing 132234 as template.) Document No Page 6 of 6 131226 Rev A Form # 117140-B...
Page 314 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 136738 REPLACEMENT KIT, MXP PCB GX 1 EA 136739 REPLACEMENT KIT, MXP POWER SUPPLY, 40 1 EA 136740 REPLACEMENT KIT, ICU ASS¿Y, 4009MK3, 1 EA 135347 REPLACEMENT KIT, MDE, XX09 MK2, XX10, 1 EA 136741 REPLACEMENT KIT, POL POT, 4012GX...

Sea Tel 4012 GX KU-BAND Technical Manual

1 Gx System Configuration(S)

2 Site Survey

3 Installation

4 Configuring a Computer for the Mxp

5 Setup - Using the Commission Wizard

6 Setup - Ship's Gyro Compass

7 Setup - Tracking Receiver - Vsat

8 Setup - Home Flag Offset (Ima Software 1.04 or Lesser)

9 Setup - Azimuth Trim (Ima Ver 1.05 or Greater)

10 Setup - Blockage & Rf Radiation Hazard Zones

11 Configuring the Satellite Modem Interface

12 Setup - Targeting

13 Setup - Satellite Configuration

14 Quick Start Operation

15 Optimizing Cross-Pol Isolation

16 Codan Mini-Buc Ethernet M&C Install & Operation

17 Gx Dealer Menus

18 Stowing the Antenna

19 Preventive Maintenance - Operator Checks and Inspections

20 Diagnostics, Fault Isolation & Troubleshooting

21 Maintenance

22 Ku-Ka Upgrade Procedure

23 Gx Technical Specifications

24 Drawings

Quick Links

Troubleshooting

Related Manuals for Sea Tel 4012 GX KU-BAND

Summary of Contents for Sea Tel 4012 GX KU-BAND
