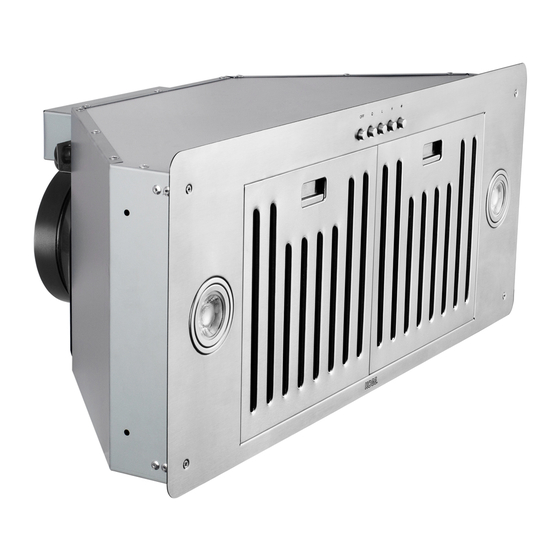

KOBE INX2730SQB-700-2 Installation Instructions And Operation Manual
Brilliea series
Hide thumbs
Also See for INX2730SQB-700-2:
- Installation instructions and operation manual (23 pages) ,
- Installation instructions and operation manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for KOBE INX2730SQB-700-2
Summary of Contents for KOBE INX2730SQB-700-2
- Page 1 KOBE Range Hoods Brillia Series Model No. INX2730SQB-700-2 INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: PRODUCT HAS BEEN INSTALLED...
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................8 MAINTENANCE ......................9 SPECIFICATIONS ......................10 MEASUREMENTS & DIAGRAMS................. 11 PARTS LIST ........................13 CIRCUIT DIAGRAM ...................... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{D} Baffle Filter x 2 {E} 6” Round Plastic Collar x 1 {F} Twist on wire connector {G} Screw Package M4 x 1/2" (4) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Height of Counter Top to Wood Frame Bottom (Recommended 26"... - Page 8 - For Insert installation - Preparation Before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. •...
- Page 9 Wiring to Power Supply Figure 4 SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Page 10 Hood Installation Figure 7 19. Slide the hood to the opening where it will be installed. 20. Locate the screw holes (4) on each side of the insert. Adjust the level of the hood casing support according to the thickness of the base (1/2 thickness plywood recommended –...
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed. o Q = QuietMode™ speed o L = Low speed o H = High speed •... -
Page 12: Maintenance
MAINTENANCE SAFETY WARNING NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. Cleaning Hood Surface CAUTION NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE PAPER TOWEL ON STAINLESS STEEL. For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly. *** Regular care will help preserve the appearance of the hood. -
Page 13: Specifications
SPECIFICATIONS MODEL / SIZE INX2730SQB-700-2 COLOR Commercial Stainless Steel CONSUMPTION / AMPERE 300W / 2.5A VOLTAGE 120V 60Hz NUMBER OF MOTORS FAN TYPE: CENTRIFUGAL Single Horizontal Squirrel Cage EXHAUST Top 6” Round CONTROLS Mechanical Push Button HALOGEN LIGHTS 3W-LED x 2 HOOD DIMENSION 27-9/16”... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: INX2730SQB-700-2 Side View Bottom View Front View... - Page 15 Stainless Steel Liner (Sold Separately) Model No. INL36211A...
-
Page 16: Parts List
PARTS LIST MODEL NO: INX2730SQB-700-2 DESCRIPTION MODEL /SIZE PART NO. 6” Round Plastic Exhaust L1-0505-0003 L1-0231-2730 Wiring Box L1-0302-0120-802RO Blower System Electronic Support Panel L1-0201-2730 LED Light Driver L1-0402-D001 Capacitor x 1PCS L1-0401-0120-24 Control Switch L1-0405-0301 LED Light (3W) L1-0403-0301... -
Page 18: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: INX2730SQB-700-2... -
Page 19: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check both motors the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 20: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM / BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 21 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
-
Page 22: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact:... - Page 23 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
