Summary of Contents for KOBE BRILLIA SERIES INX-026OVS-INX2630SQB-600-40
- Page 1 KOBE Brand Range Hood Model No. OVS- INX2630SQB-600-40 BRILLIA SERIES INX-026 INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL. 2. Have your original proof of purchase and product serial number ready. 3. Call 1-877-BUY-KOBE (289-5623); or e-mail to info@koberangehoods.com to report the problem. NO RETURN, NO REFUND, NO EXCHANGE IF: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................9 MAINTENANCE ......................13 SPECIFICATIONS ......................14 MEASUREMENTS & DIAGRAMS................. 15 PARTS LIST ........................17 CIRCUIT DIAGRAM ...................... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
Adjustable Liner (Sold Separately) {J} Front Section of Liner For the operation {K} Rear Section of Liner manual, please refer to our website: KOBERangehoods.com FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 Height of Floor to Ceiling Height of Floor to Counter Top (Standard: 36") Height of Counter Top to Wood Frame Bottom (Minimum 26"... - Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. • A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 Figure 5 Hood Preparation Before Installation CAUTION : If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. 14.
-
Page 10: Safety Warning
Figure 9 Duct Work Installation 18. Determine and make all necessary cuts in the wall or ceiling for the ductwork. Note: Install the ductwork before installing the insert. 19. Use steel pipe to connect the exhaust on the hood to the ductwork above. - Page 11 Final Assembly Figure 13 29. Install the oil tunnel into recess support near rear of hood. Refer to Figure 12. 30. Install baffle filters. Angle baffle filter toward back of hood ①. Push baffle filter up until almost level ②. Slide forward into recess behind the front of hood ③.
-
Page 12: Operating Instructions

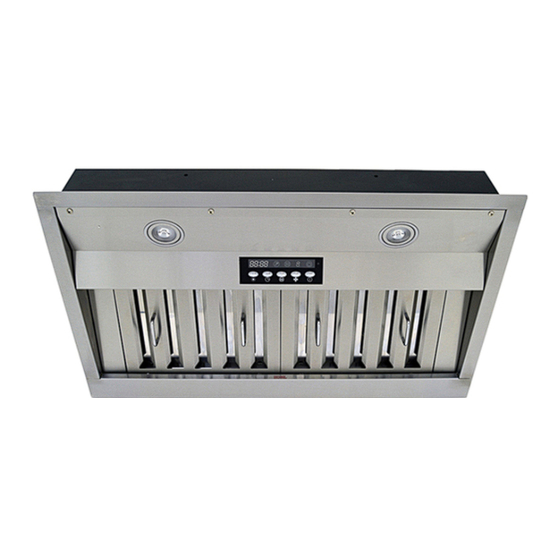

OPERATING INSTRUCTIONS This BRILLIA hood is equipped with five electronic push buttons with LED display, a wireless remote control, a double horizontal squirrel cage blower with stainless steel baffle filters and two bright LED lights. The five control buttons are Power Control (On/Off & 3-Minute Delay Shut-Off), Speed Control (High, Medium, Low & QuietMode™), ECO Control, Timer Control and Light Control. - Page 13 Speed Control (Each press of Speed Control will cycle the fan through Low, Medium, High and QuietMode™.) Output Display will indicate: = QuietMode™ Speed = Low Speed = Medium Speed = High Speed ECO Control The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality.
- Page 14 Timer Control The Timer Control allows users to set their range hood to automatically turn off. The timer ranges from 1 min. to 99 mins. To activate the timer, the fan must be on (High, Medium, Low, or QuietMode™). As the fan is running, toggle the timer by pressing the Timer Control.
- Page 15 Press Power Control to activate 3-Minute Delay Timer Control While the fan is running, press the Timer Control to activate the Timer. The Time Indicator will flash, indicating it is ready to be set. Use the arrow keys to set the desired time. Press of will decrease the time by 1 minute.
-
Page 16: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 17: Specifications
SPECIFICATIONS MODEL / SIZE OVS-INX2630SQB-600-40 COLOR Commercial Stainless Steel CONSUMPTION / AMPERE 290W / 2.5A VOLTAGE 120V 60Hz NUMBER OF MOTORS FAN TYPE: CENTRIFUGAL Double Horizontal Squirrel Cage EXHAUST Top – 6” Round 3-1/4” x 10” Rectangular Rear – 6” Round 3-1/4”... -
Page 18: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: OVS-INX2630SQB-600-40 Side View Bottom View Back View Top View... - Page 19 Front View Ajustable Stainless Steel Liner (Sold Separately) Model No. INL36252B...
-
Page 20: Parts List
PARTS LIST MODEL NO: OVS-INX2630SQB-600-40 DESCRIPTION MODEL/SIZE PART NO. Rectangular Exhaust Plate B101-2630-17A Rectangular Vent Cover B101-2630-17B Round Exhaust Plate B101-2630-16A B101-2630-16B Rectangular Exhaust Adapter Electric Component Support L1-0201-2630 FA-18880-0401-B3 Processor Board L1-0401-0120-01 Capacitor Blower Bracket L1-0105-2630 B101-2630-14A Oil Tunnel IN2630SQB-700 40-L1-0302-A120-01 Blower System... - Page 21 Optional Liner (Sold Separately)
-
Page 22: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: OVS-INX2630SQB-600-40... -
Page 23: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After Installation, The power is not on. Make sure the circuit breaker and the unit’s power is ON. motor and lights Use a voltage meter to check the power supply. are not working. The wire connection is not secure. Check and tighten wire connection. -
Page 24: Warranty
KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 25 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE Service Center (USA Only)
-
Page 26: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA Only) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada or... - Page 27 Arcadia, CA 91006 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
