Summary of Contents for KOBE Brillia INX27 SQB-700-3 Series

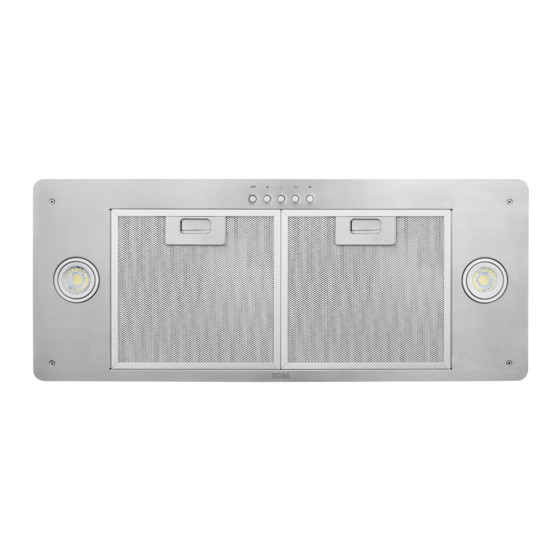

- Page 1 KOBE RANGE HOODS Brillia Series INX27 SQB-700-3 Series Model No.: INX2730SQB-700-3 (30”) INX2736SQB-700-3 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of packages. 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/ electrician test the unit before installation. IF THERE IS ANY PROBLEM: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................7 MAINTENANCE ......................8 SPECIFICATIONS ......................9 MEASUREMENTS & DIAGRAMS................. 10 PART LIST ........................11 CIRCUIT DIAGRAM ...................... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. - KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do in the Event of a Range Top Grease Fire 1. SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Quick Reference Guide {D} Baffle Filter – 2 pcs for 30” – 3 pcs for 36” {E} Aluminum Filter – 2 pcs for 30”... -
Page 7: Installation
2. Test the range hood by temporarily connecting it to an outlet and turning ON the fan and lights. 3. If you run into any problems, contact KOBE Range Hoods. Venting Requirements 4. The range hood has top 6” round exhaust (default). - Page 8 and long run as much as possible as this may reduce the performance of the hood. Make sure that the duct work leads to the outside. 6. It is recommended to use metal / aluminum duct/pipe with a uniform size (ex. 6” round pipe from range hood to the outside).
- Page 9 Electrical Wire 20. Connect the range hood to an outlet. 21. If hardwired is desired, cut off the plug and connect three wires (black, white, green) to the outlet wires and cap with wire connectors. Connect the wires according to color (ex. black to black). Finish 22.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS 3-Speed Mechanical Control Note: For best result, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed o Q = QuietMode™... -
Page 11: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 12: Specifications
SPECIFICATIONS INX2730SQB-700-3 / 30” MODEL / SIZE INX2736SQB-700-3 / 36” COLOR 18-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 240W / 2.0A NUMBER OF BLOWERS DESIGN Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage Top 6” Round EXHAUST CONTROL Mechanical Push Button LIGHT 3-watt LED Light x 2 27-9/16”... -
Page 13: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. MODEL NO.: INX2730SQB-700-3 (30”) INX2736SQB-700-3 (36”) Optional Liner (Sold Separately) -
Page 14: Part List
PART LIST MODEL NO.: INX2730SQB-700-3 (30”) INX2736SQB-700-3 (36”) DESCRIPTION MODEL / SIZE PART NO. 6” Exhaust Vent 02-003 LED Light Driver 02-001 Capacitor (12uF, 250 VAC) 02-004 LED Light (3W) x 2 02-005 Control Switch 02-015 Blower System YYC-148-3 Aluminum Filter (239mm x 226mm) INX2730SQB-700-3 02-017-30 Aluminum Filter (229mm x 226mm) - Page 15 MODEL NO.: INX2730SQB-700-3 (30”) INX2736SQB-700-3 (36”)
-
Page 16: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: INX2730SQB-700-3 (30”) INX2736SQB-700-3 (36”) -
Page 17: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a installation, both motors voltage meter to check the power and lights are supply. not working. The wire connection is not secure. -
Page 18: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 19 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alternation, modification not authorized by KOBE. 3. Duct alternation, modification, and connection. 4. Incorrect electric current, voltage, or wiring. 5. Improper usage of the product such as commercial, outdoor, or other usage other than residential indoor usage.
-
Page 20: Warranty Information Form
3. Serial No. :_______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 21 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
