INX29 SQBF-500-1 Parts Location and Replacement
This basic guide is to show the parts location of the INX29 SQBF-500-1 and how to remove or install certain parts.
To see more detailed guidelines, please visit:
3
1. Blower System
2. Control Switch
3. LED Light (3W)
KOBE Range Hoods
"So Quiet ... You Won't Believe It's On!"
For model: INX2930SQBF-500-1 and INX2936SQBF-500-1

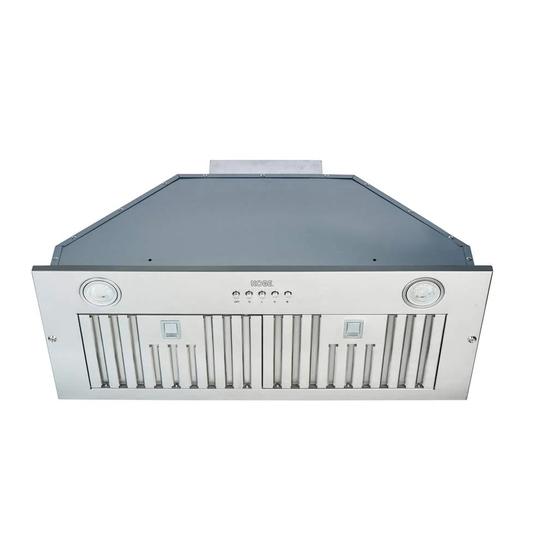

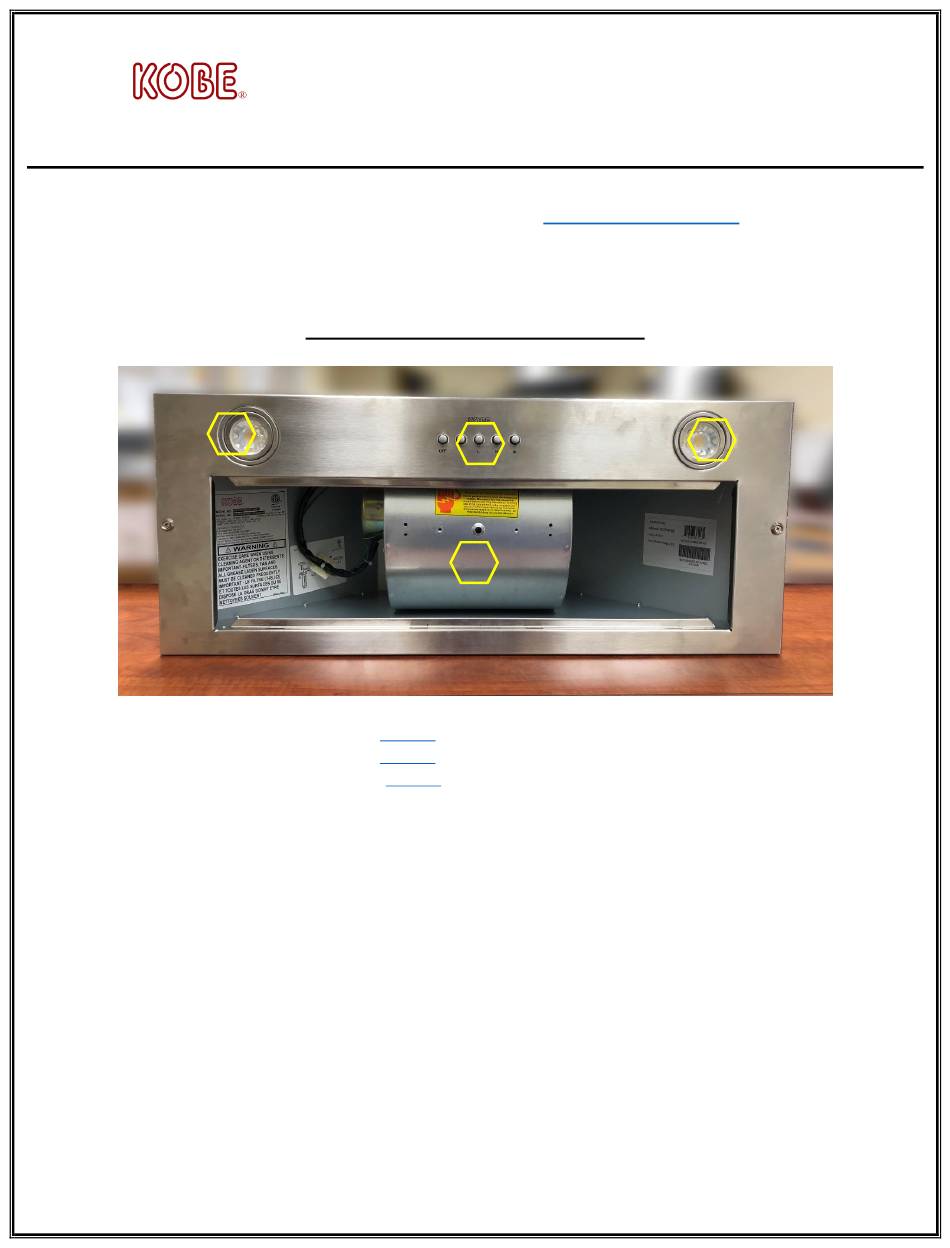

Overall Snapshot of INX29 SQBF-500-1

(Manual
(Manual
(Manual
Page 1 of 7
Version 20180901
KOBE Service and Repair
2
1
Part #6 – See "Parts List" page on manual)
Part #5 – See "Parts List" page on manual)
Part #4 – See "Parts List" page on manual)
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INX29 SQBF-500-1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for KOBE INX29 SQBF-500-1 Series

Summary of Contents for KOBE INX29 SQBF-500-1 Series

  • Page 1 This basic guide is to show the parts location of the INX29 SQBF-500-1 and how to remove or install certain parts. To see more detailed guidelines, please visit: KOBE Service and Repair For model: INX2930SQBF-500-1 and INX2936SQBF-500-1 Overall Snapshot of INX29 SQBF-500-1 1.
  • Page 2 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Accessing the Control Switch, LED Light and LED Driver Figure 1 Figure 2 Figure 3 Figure 4 2. Control Switch (Manual Part #5 – See “Parts List” page on manual) 3.
  • Page 3 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Removing the Control Switch  Version A (metal) – see page 4  Version B (plastic) – see page 5 Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 2.
  • Page 4 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Control Switch – Version A (metal) Figure 1 Figure 2 Figure 3 Page 4 of 7 Version 20180901...
  • Page 5 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Control Switch – Version B (plastic) Figure 1 Figure 2 Figure 3 Page 5 of 7 Version 20180901...
  • Page 6 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Removing the LED Light Figure 1 Figure 2 3. LED Light (3W) (Manual Part #4 – See “Parts List” page on manual) Page 6 of 7 Version 20180901...
  • Page 7 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Removing the Blower System Warning: Loosen the screw first with a hand tool screw driver. Place a support or hold the blower before removing it. Figure 1 Figure 2...
